AEM Performance Electronics® 30-2220 - CD Carbon Plug & Play Adapter Kit

A custom startup screen welcomes you when the dash lights up, and a dedicated alarm page and Check Engine warnings displayed in text alert you to any potential issues to keep you safe on the trails. Users can toggle between four main screens created specifically for the YXZ switch panel. All of the pages are loaded and ready to go, but AEM's powerful DashDesign software lets you easily create your own custom designs.
With a full-color daylight-readable screen, four main pages, a dedicated alarm page, included templates for quick startup and more, a CD Carbon Dash is the perfect solution for YXZ owners who want to SEE EVERYTHING in the dunes and on the trail. CD Carbon Dashes are available with 5-inch and 7-inch diagonal screens (CD-5/CD-7) with or without GPS and/or data logging.
YXZ SPECIFIC SCREEN LAYOUTS
AEM engineers created specific layouts for 2016-up YXZ models that will appeal to both weekend enthusiasts and hardcore racers. These include:
Four main screens that include a digital version of the factory gauges, a race-inspired screen, an adventurer screen with real-time compass, and a diagnostics page that displays all available channels
Dedicated Alarm page trigger for very high coolant temps
Race lap timing or navigation page with heading, direction time and altitude (requires GPS-enabled CD Carbon Dash or Vehicle Dynamics Module)
Vehicle diagnostics page that displays all channels for monitoring/troubleshooting
Graphic alarm notifications on the four main screens for high coolant temp, low fuel and low battery voltage
Amber LED warning light triggers for high coolant temp, low fuel and low battery voltage
Red LED warning light triggers for CEL/MIL
White neutral safety indicator
MIL Code Text displayed so no need for a scan tool to check for codes when the MIL lamp is illuminated
AVAILABLE CHANNELS FROM XYZ CAN BUS
Engine Speed (RPM)
Vehicle Speed
Coolant temp (displayed in numerical value)
Gear shifter position
Neutral light
AWD/Diff lock status
Check Engine Light Status (displayed in text, i.e.: "Throttle Pos Sensor Short", Crank Pos Signal Not Detected", etc.)
Parking brake indicator

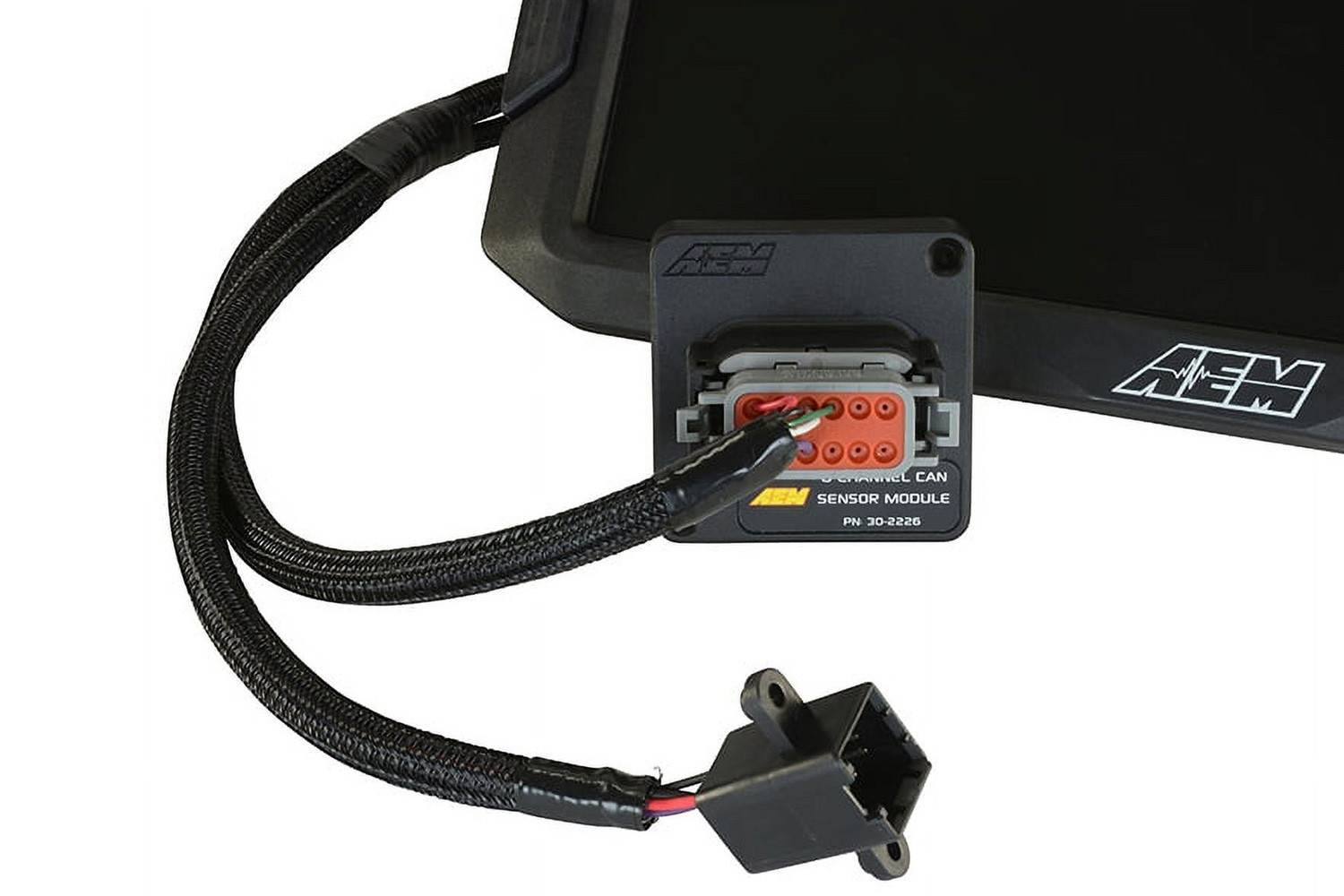

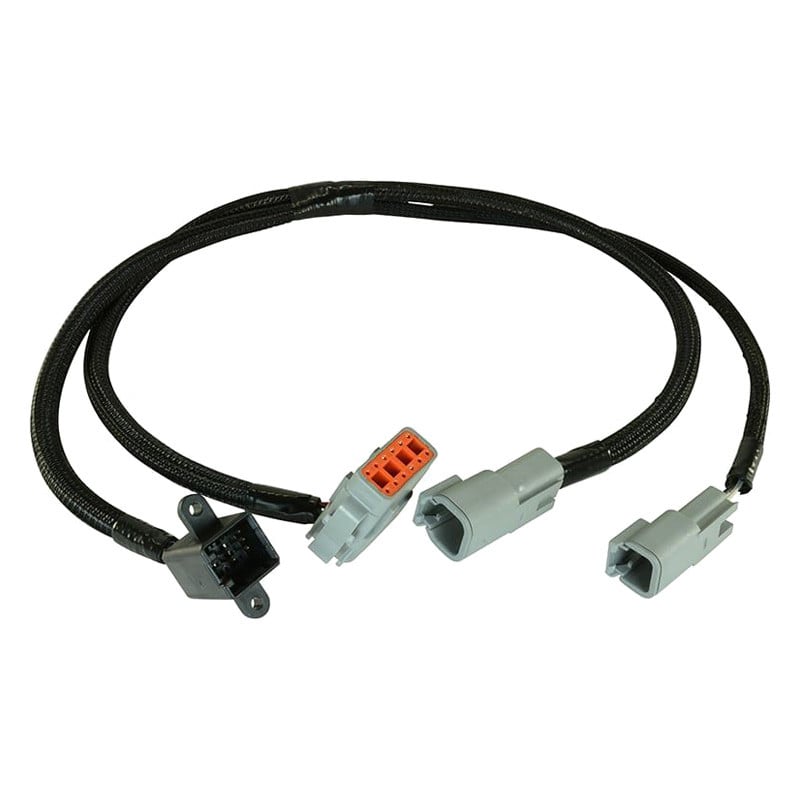

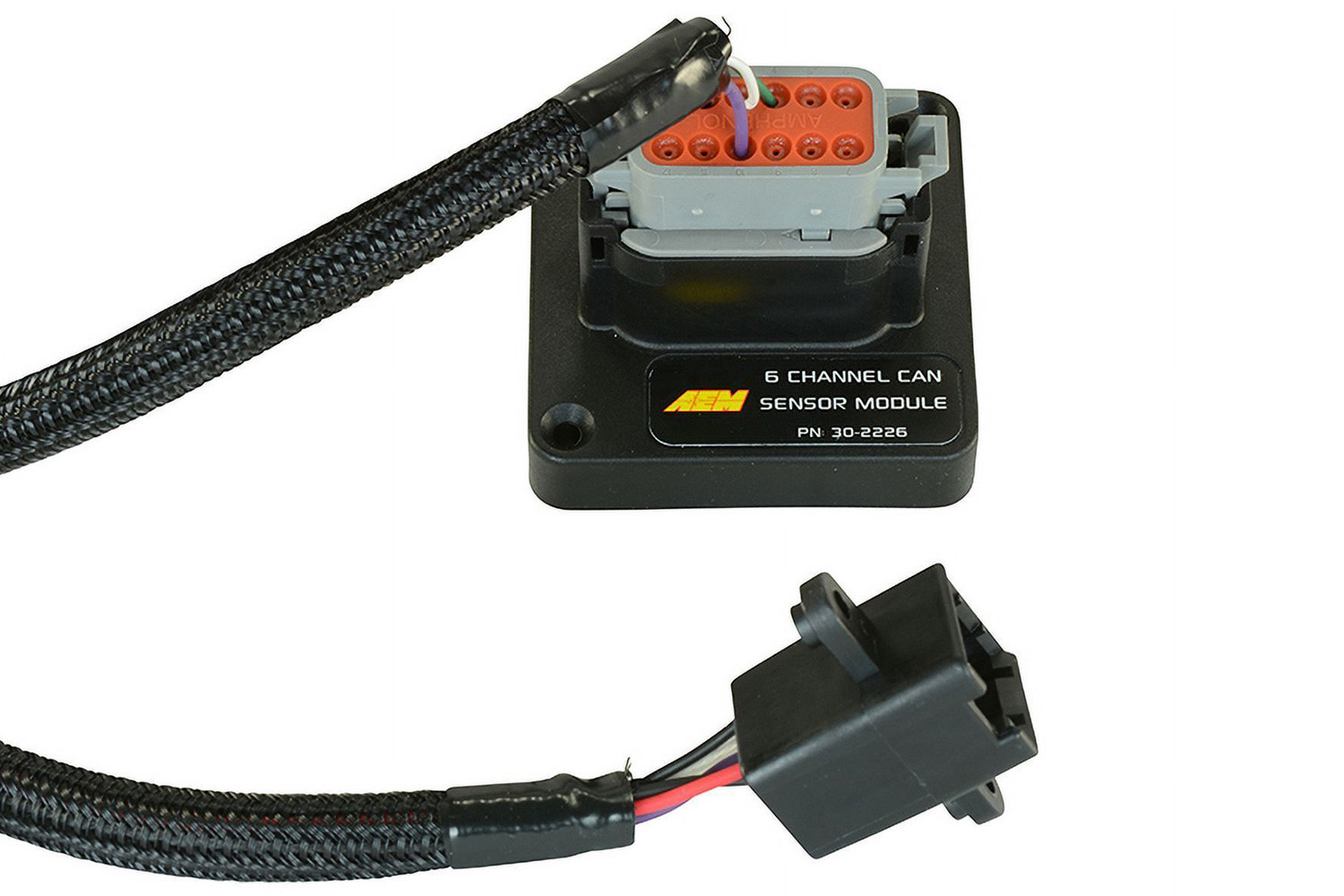

Fuel level is not transmitted through the factory CAN bus, so AEM's 6 Channel CAN Sensor Module (PN 30-2226 SOLD SEPARATELY) is required to convert the fuel level signal so it can be displayed. The YXZ Plug & Play Harness includes a connector for the 6 Channel CAN Sensor Module and the configuration files are pre-programmed to display this channel if it is available. In addition to providing the ability to display Fuel Level on the YXZ, this module also provides a path to expand channels on your dash by adding two additional pressure or temperature sensors.
ADD EVEN MORE CHANNELS THROUGH CAN bus CONNECTIONS
The harnesses for CD Carbon Dashes include two independent CAN bus inputs, so virtually any device with a CAN output (like an existing logger, wideband air/fuel ratio controller module, programmable ECU, etc.) can be added to your CD Carbon YXZ display. The dashes are validated to support hundreds of 3rd party devices in addition to AEMnet CAN-enabled products.
