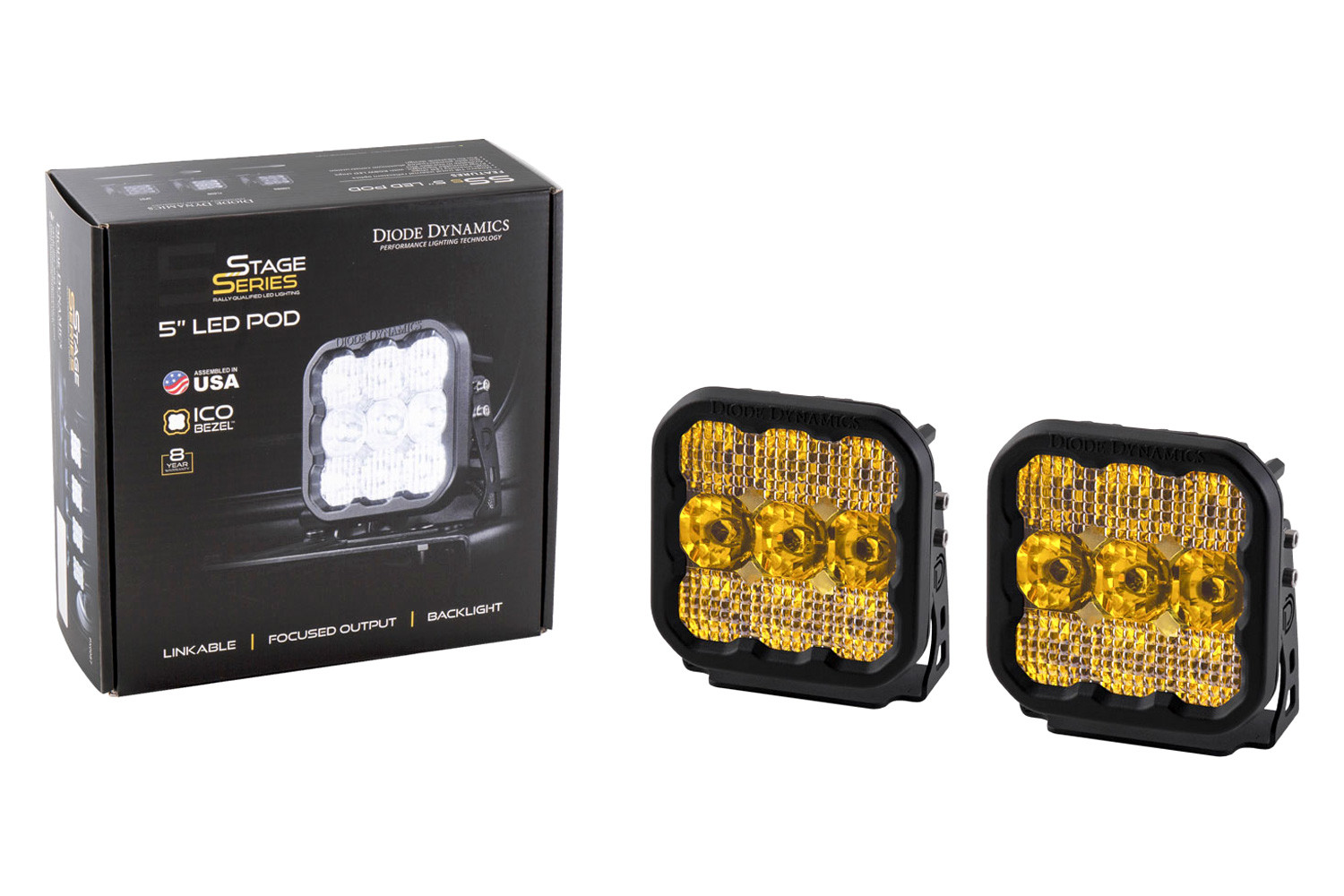

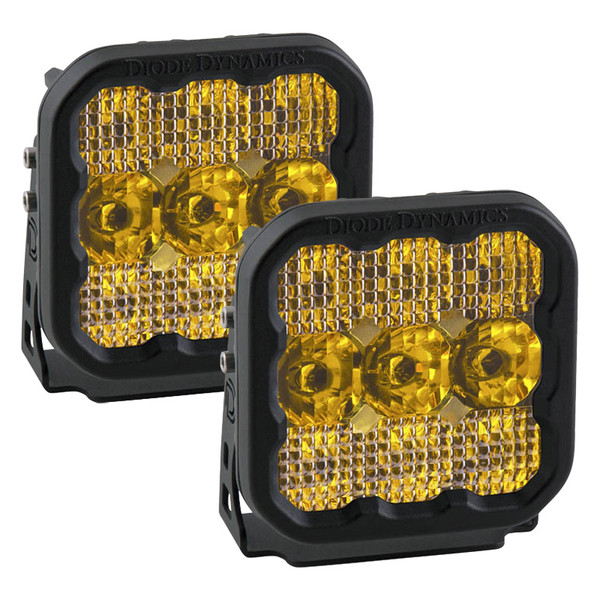

Diode Dynamics® - Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights Diode Dynamics® - Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights, Full Set Diode Dynamics® - Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights Diode Dynamics® - Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights Diode Dynamics® - Stage Sport Series Square LED Lights, Installed

Diode Dynamics® - Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights

Name: Diode Dynamics® - Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights
Brand: Diode Dynamics
SKU: mpn4826252047
Price: 499.95 USD
Availability: InStock

0 reviews|Item # mpn4826252047

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$499.95

In Stock (6) - Ships Tomorrow 06.10.26

See similar products

Have a Question? Ask a Specialist

888-903-4348Live Chat

Vehicle Fitment

This part is universal

Specifications

Size	5"
Watts (per kit)	2x40W

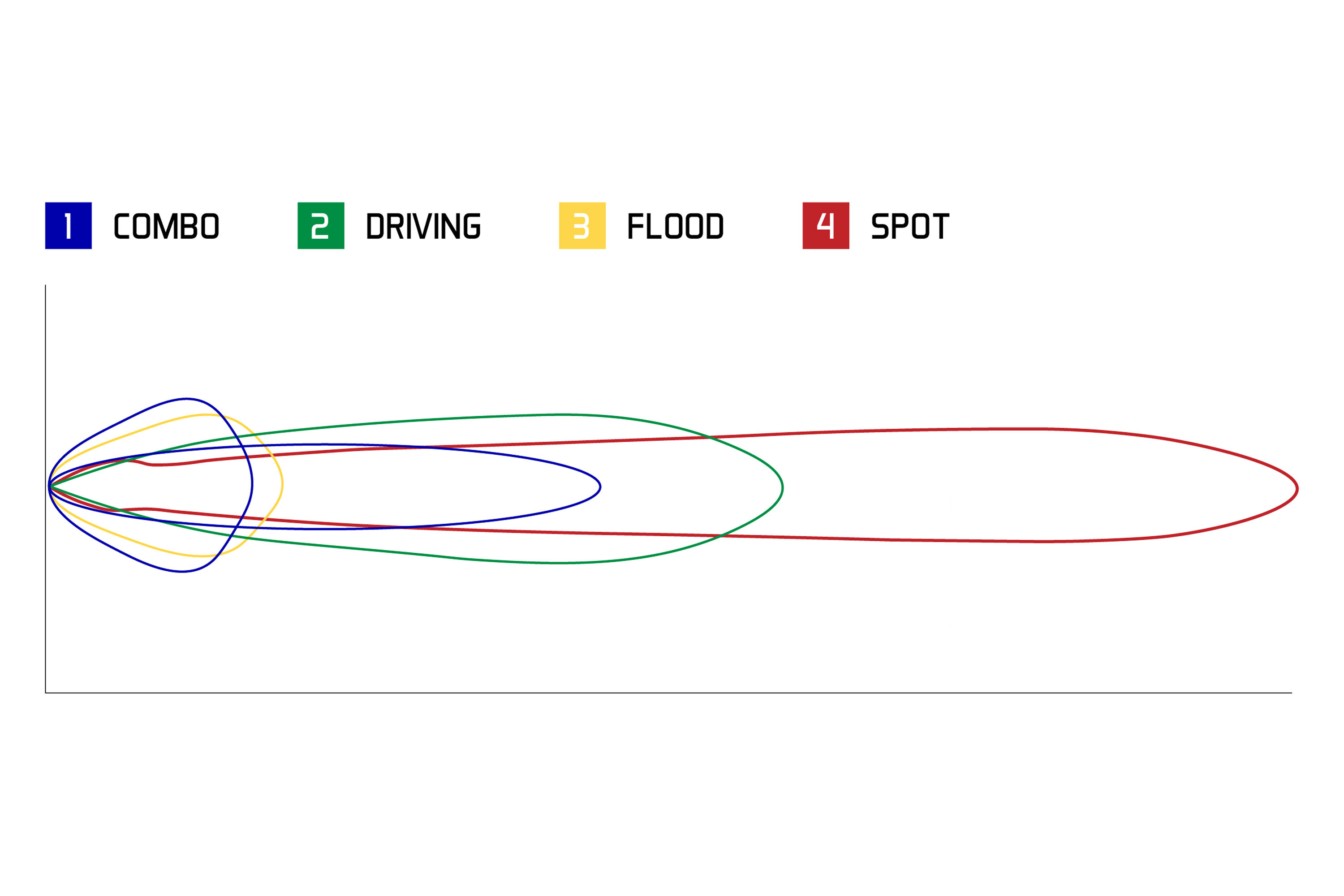

Beam pattern	combo beam
Bulb type	LED
Series	Stage Sport Series
Color/finish	black
Light Color	yellow
Shape	square
Voltage	9-16V
Amperage	2.8A
Raw lumens	4800; Measured lumens: 3700
Color temperature	3000K

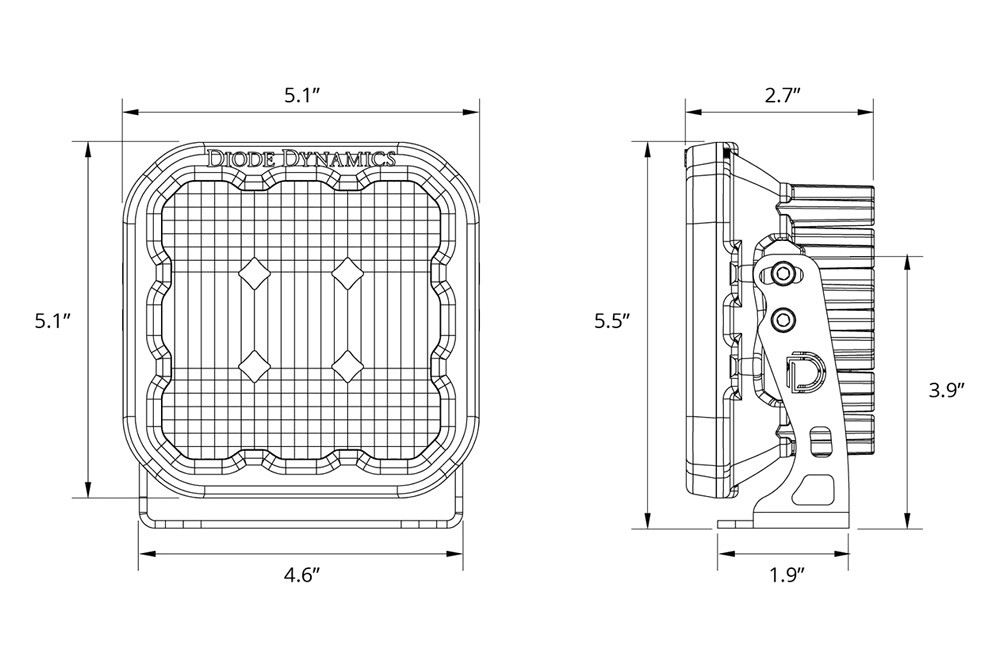

Dimension	5.2" x 5.2" x 2.7"
Lux @10M	820
Candelas	71200 CD

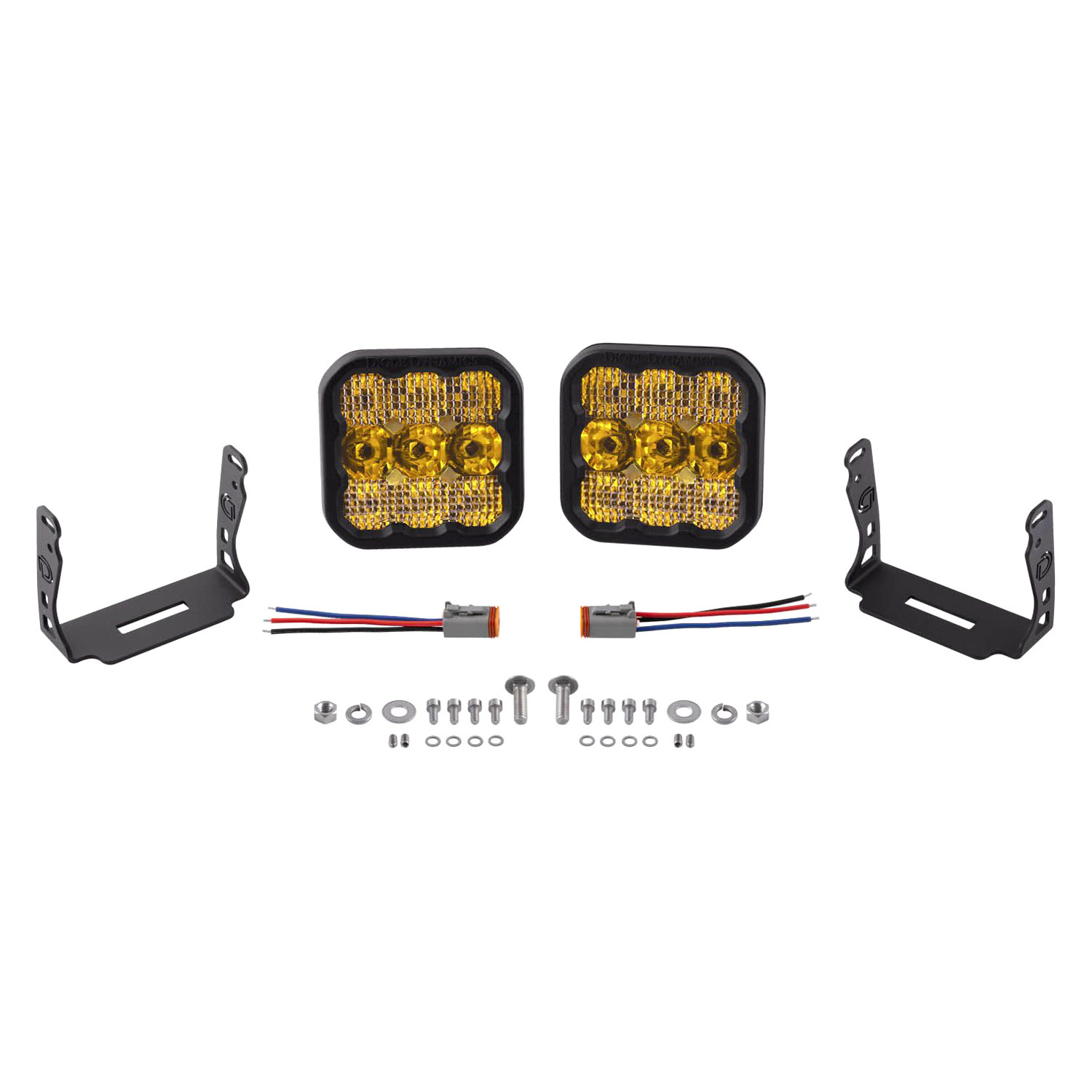

Includes

(2) Stage Series 5" LED pods
(2) Deutsch-style wire pigtails
(2) Mounting brackets and hardware

Features

Engineered TIR (total internal reflection) optics
Selectable backlight color, with eight color options
Built-in linking feature, build up to 50" bar
Torture-tested, heavy-duty construction
Ultra-high intensity: shines almost mile away
Assembled in USA

Product Details

Universal Stage Sport Series 5" 2x40W Square Combo Beam Yellow LED Lights (DD6772P) by Diode Dynamics®. 1 Pair. 9-16V. 2.8A. Raw lumens: 4800; Measured lumens: 3700. 3000K. Introducing the SS5 LED Pod! Featuring the highest output intensity of any 5" LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD6772P

UPC:

691025934922

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
