Diode Dynamics® - Stage Series C1 Sport Flush Mount 3" 12.8W Square Flood Beam Yellow LED Light, With Amber Backlight

Name: Diode Dynamics® - Stage Series C1 Sport Flush Mount 3" 12.8W Square Flood Beam Yellow LED Light, With Amber Backlight
Brand: Diode Dynamics
SKU: mpn4806335167
Price: 99.95 USD
Availability: InStock

0 reviews|Item # mpn4806335167

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$99.95

In Stock (2) - Ships Tomorrow 06.10.26

See similar products

Have a Question? Ask a Specialist

888-903-4348Live Chat

Vehicle Fitment

This part is universal

Specifications

Size	3"
Watts (per kit)	12.8W

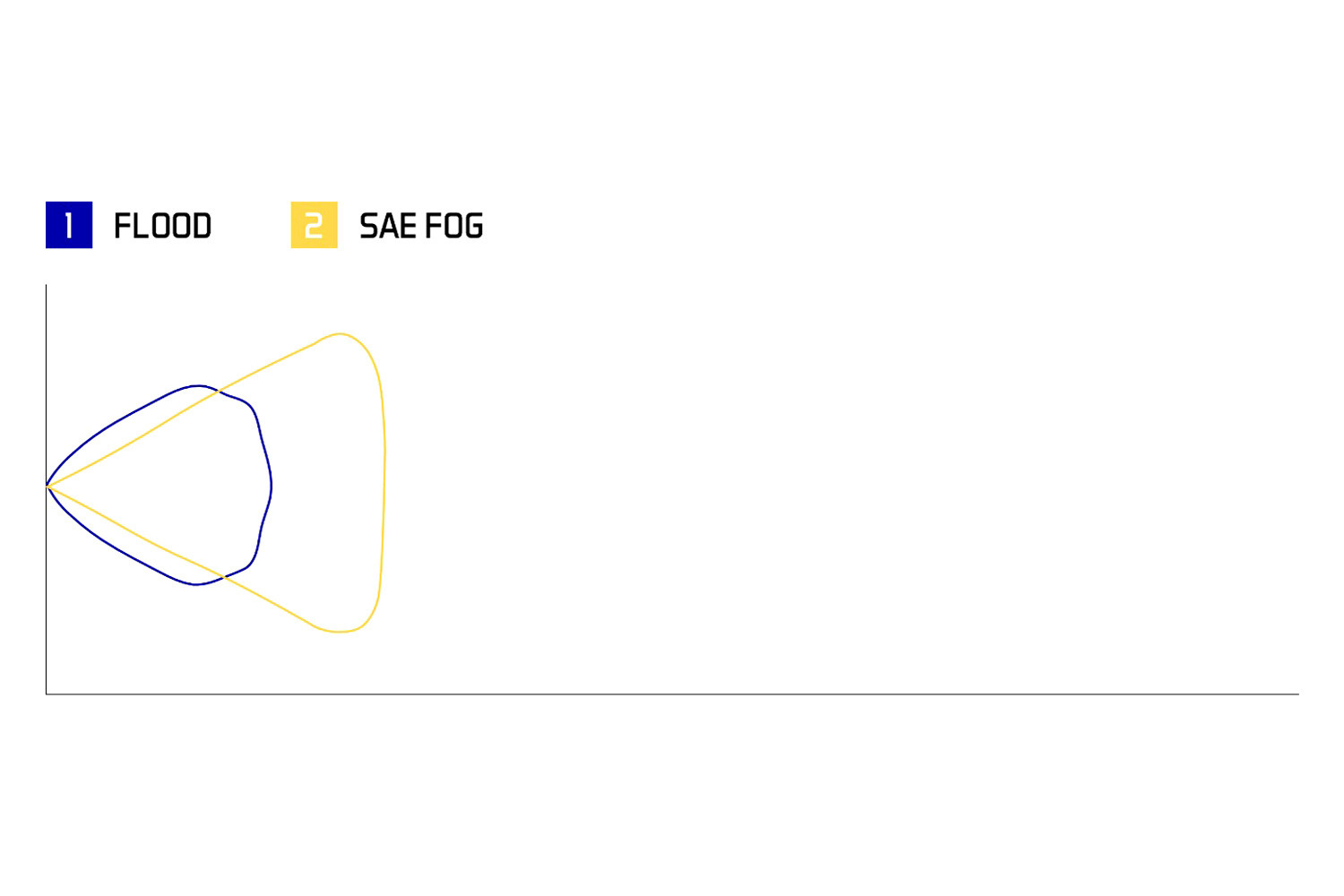

Beam pattern	flood beam
Bulb type	LED
Series	Stage Series C1 Sport
Mount type	flush mount
Color/finish	black
Light Color	yellow

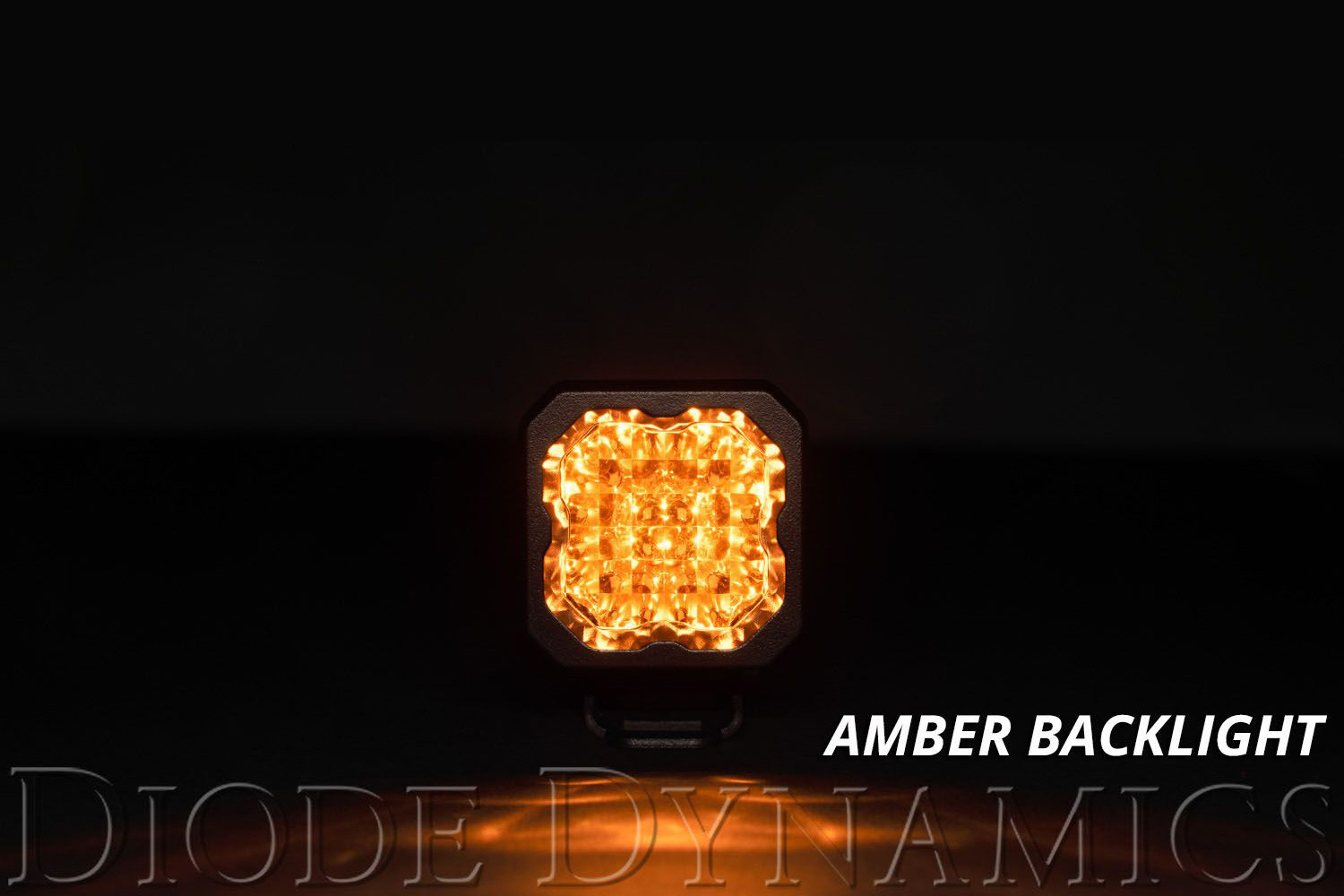

Backlight color	amber
Shape	square
Amperage	1A
Raw lumens	1305; Measured lumens: 1000
Color temperature	3000K

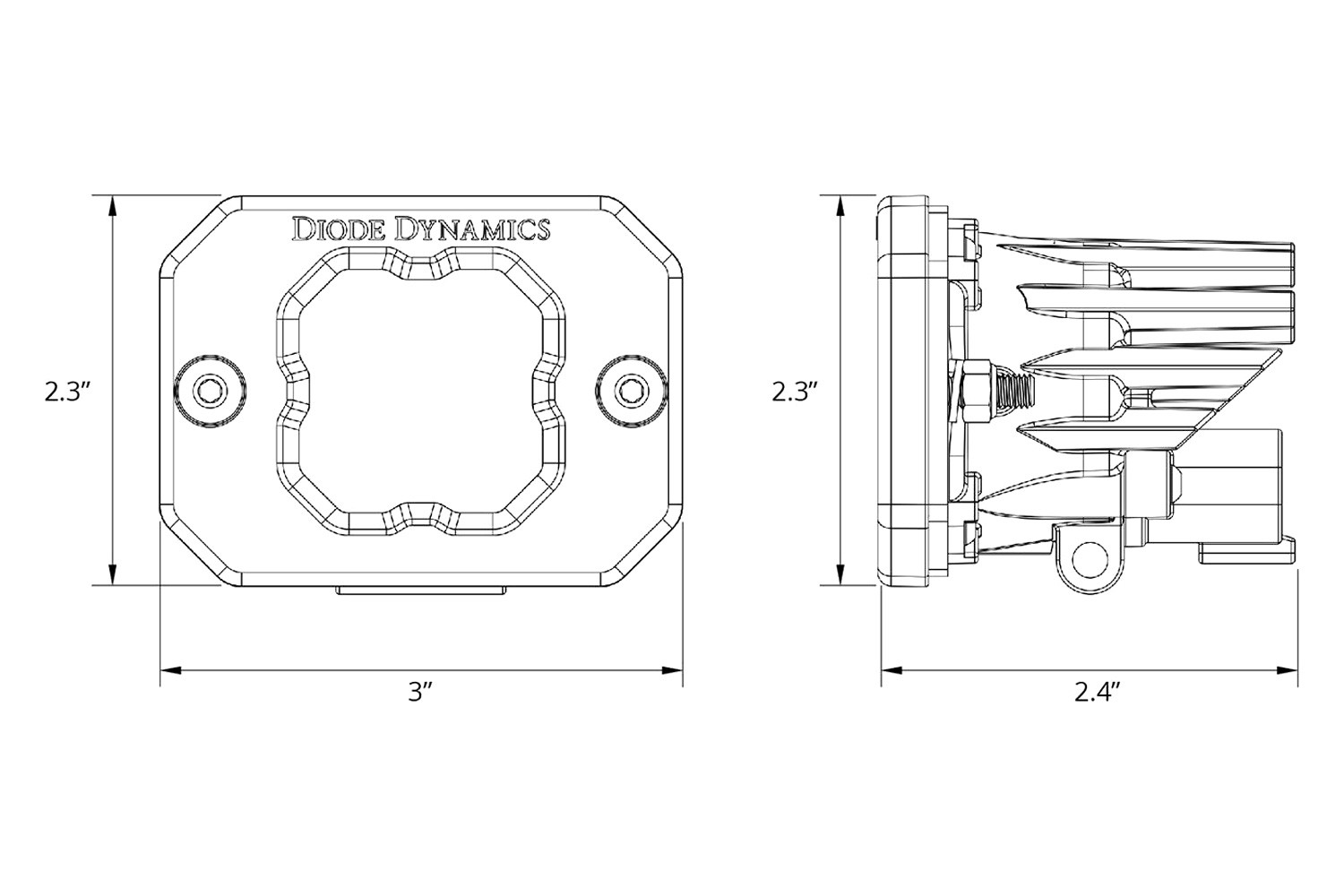

Dimension	3" x 2.3" x 4"
Lux @10M	4
Candelas	308 CD

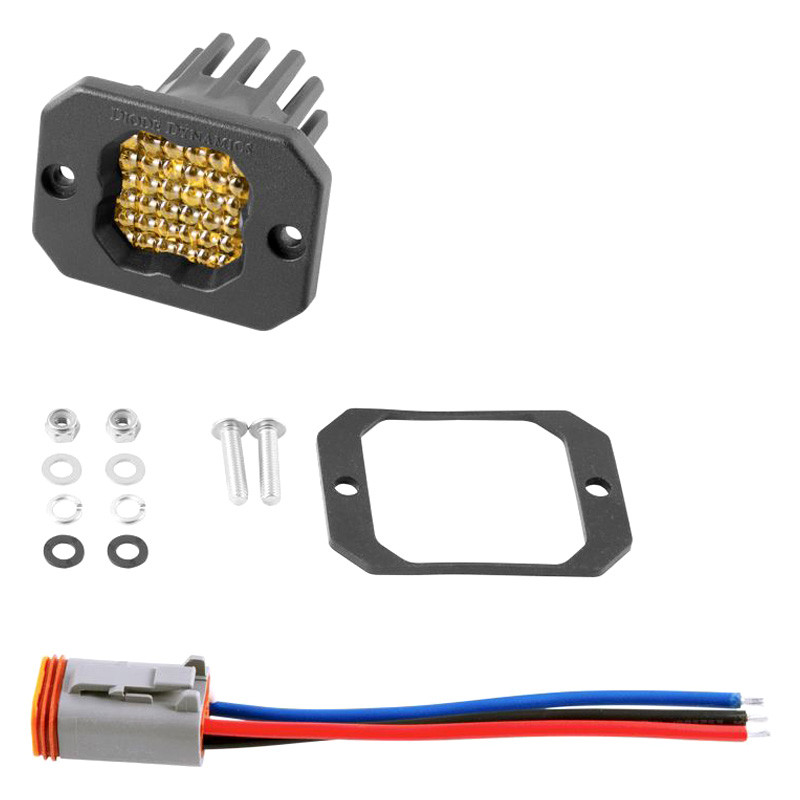

Includes

(1) Stage Series C1 Sport LED light
(1) Deutsch-style wire pigtail
(1) Mounting bracket and hardware

Features

Allows for flush installation on bumpers and truck beds
Ultra-compact, single-LED form factor
High-intensity 10-watt LED chip
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Designed, torture-tested and assembled in USA
8-year warranty

Product Details

Universal Stage Series C1 Sport Flush Mount 3" 12.8W Square Flood Beam Yellow LED Light, With Amber Backlight (DD6473S) by Diode Dynamics®. 1 Piece. 1A. Raw lumens: 1305; Measured lumens: 1000. 3000K. Add LED pods to your bumper, truck bed, or anywhere else you can think of with this Stage Series C1 Flush Mount Pod Kit! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output, in most compact, versatile package yet.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD6473S

UPC:

691026129921

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
