Diode Dynamics® DD6936S - Stage Pro Series Flush Mount 3" 36W Square Combo Beam LED Light, With Amber Backlight

Name: Diode Dynamics® DD6936S - Stage Pro Series Flush Mount 3" 36W Square Combo Beam LED Light, With Amber Backlight
Brand: Diode Dynamics
SKU: mpn4826251593
Price: 209.95 USD
Availability: InStock

0 reviews|Item # mpn4826251593

Universal Fit

Fitment notes:

Not Vehicle Specific

Authorized Dealer

$209.95

In Stock (2) - Ships within 24 hrs

See similar products

Have a Question? Ask a Specialist

888-903-4348Live Chat

Vehicle Fitment

This part is universal

Specifications

Size	3"
Watts (per kit)	36W

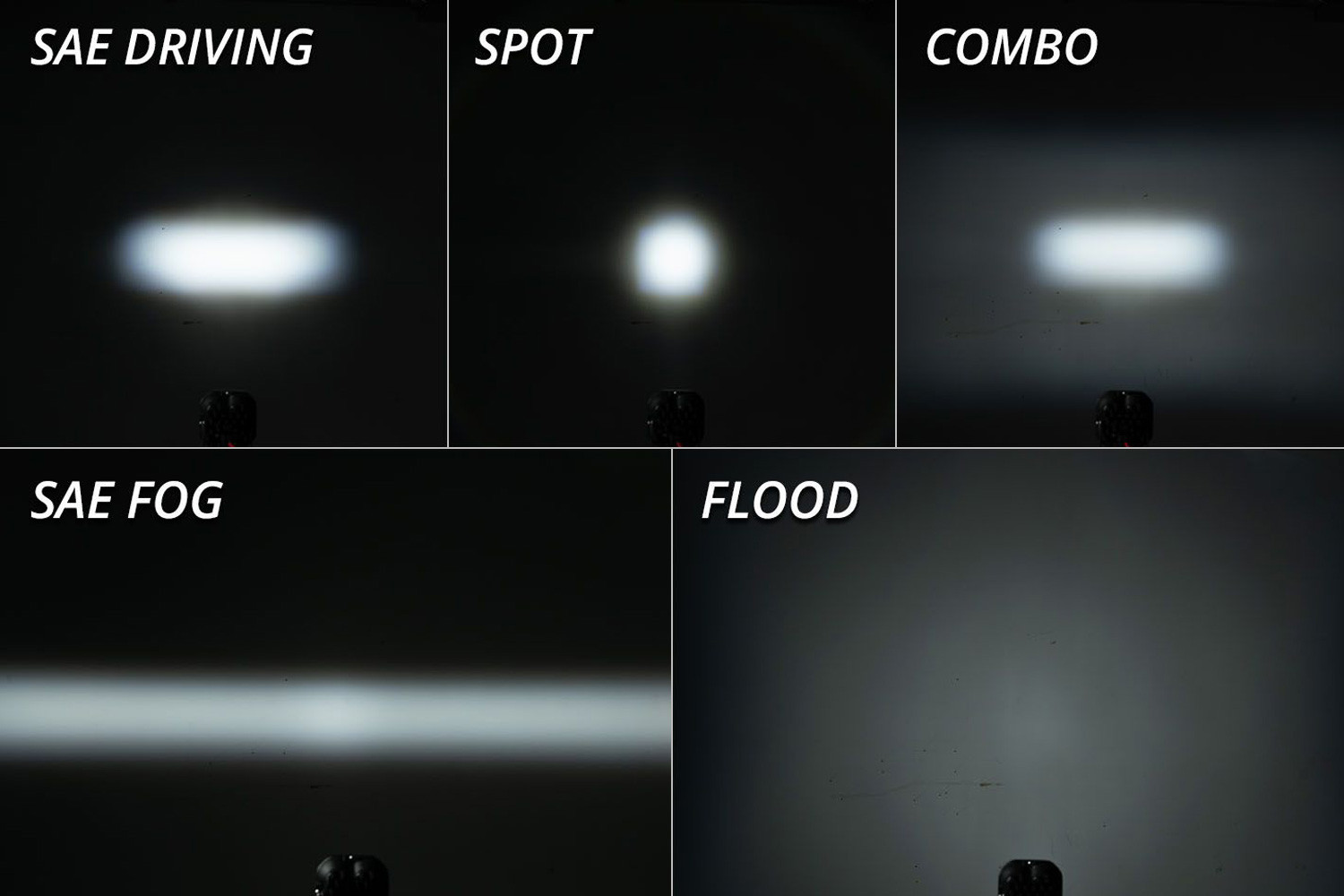

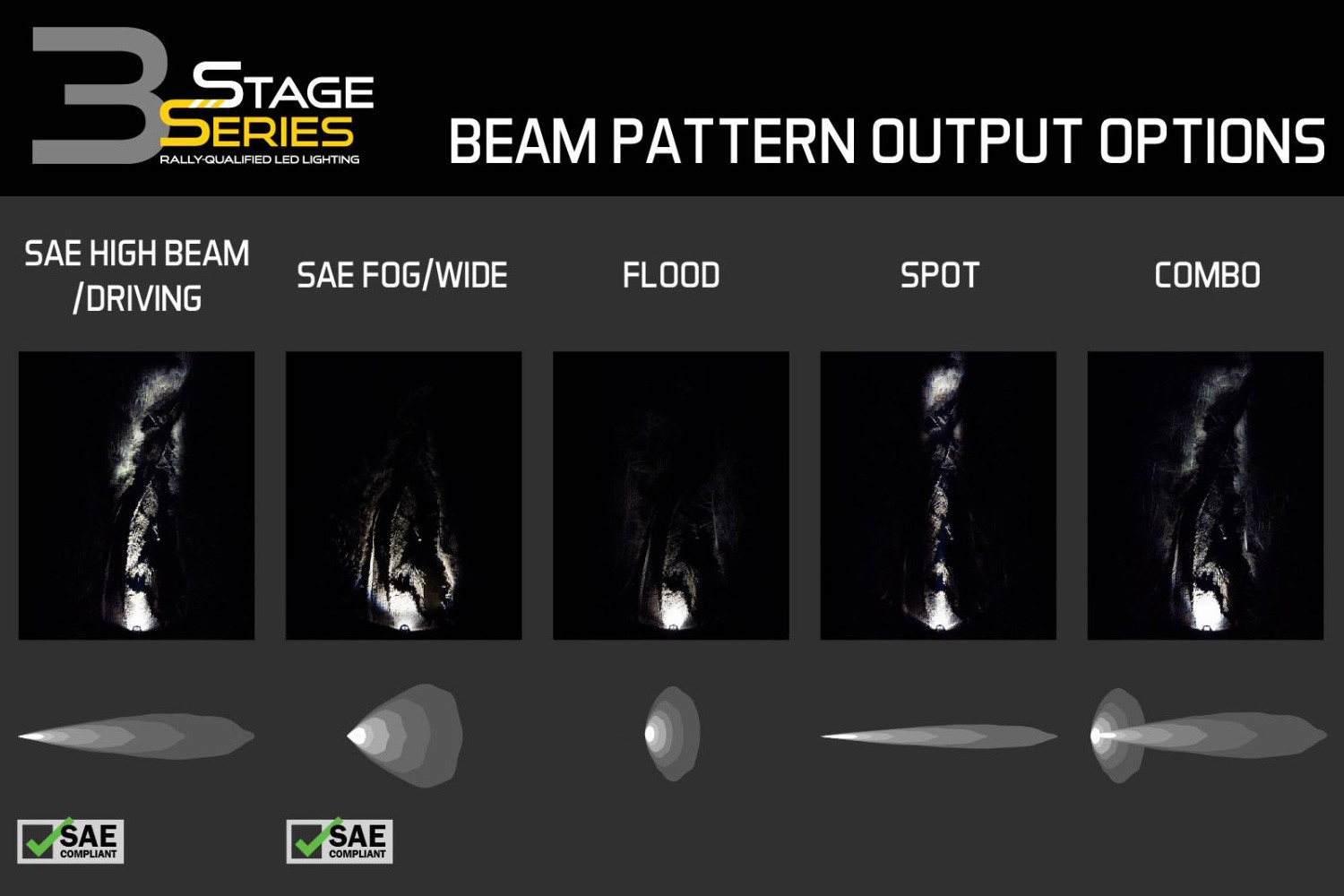

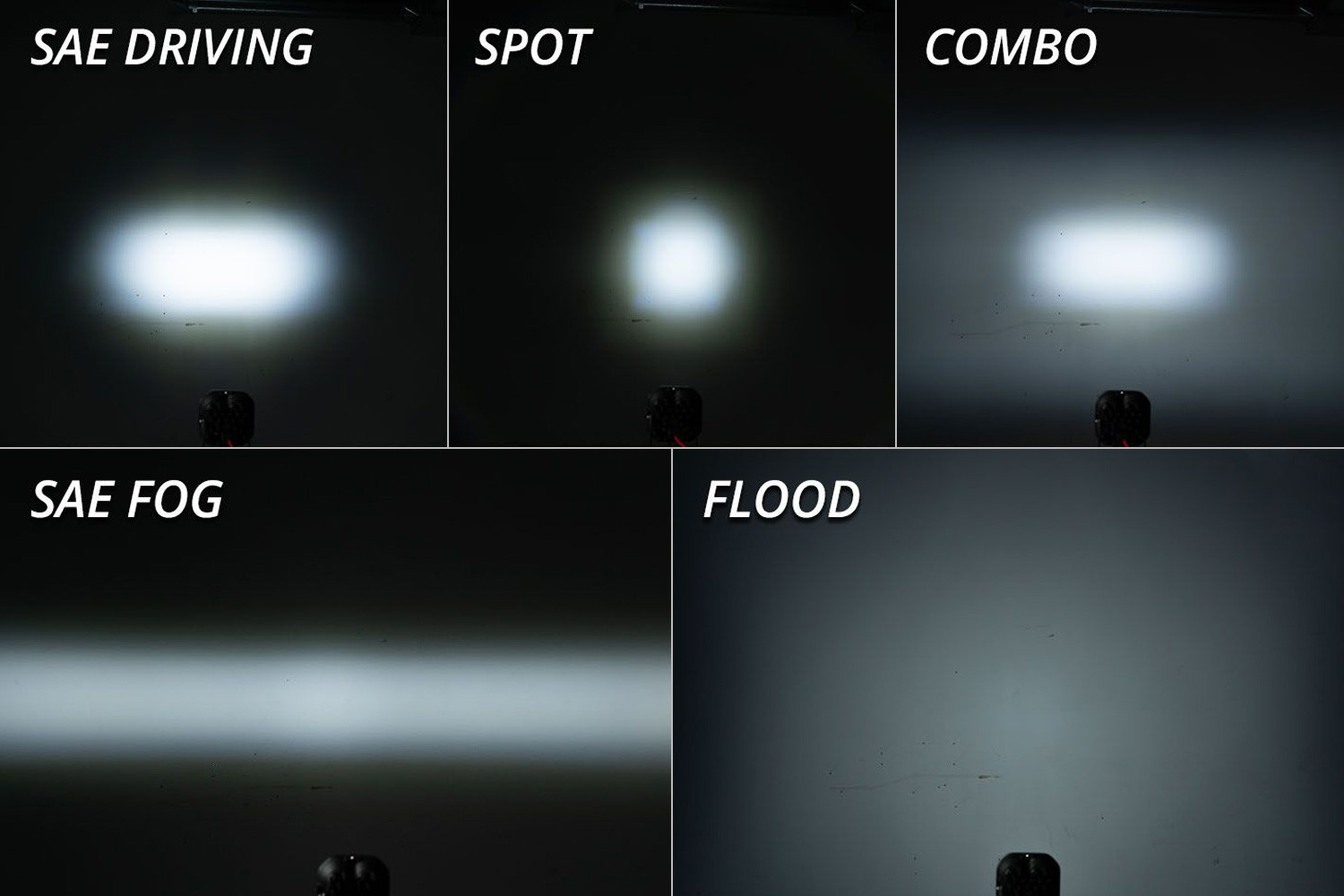

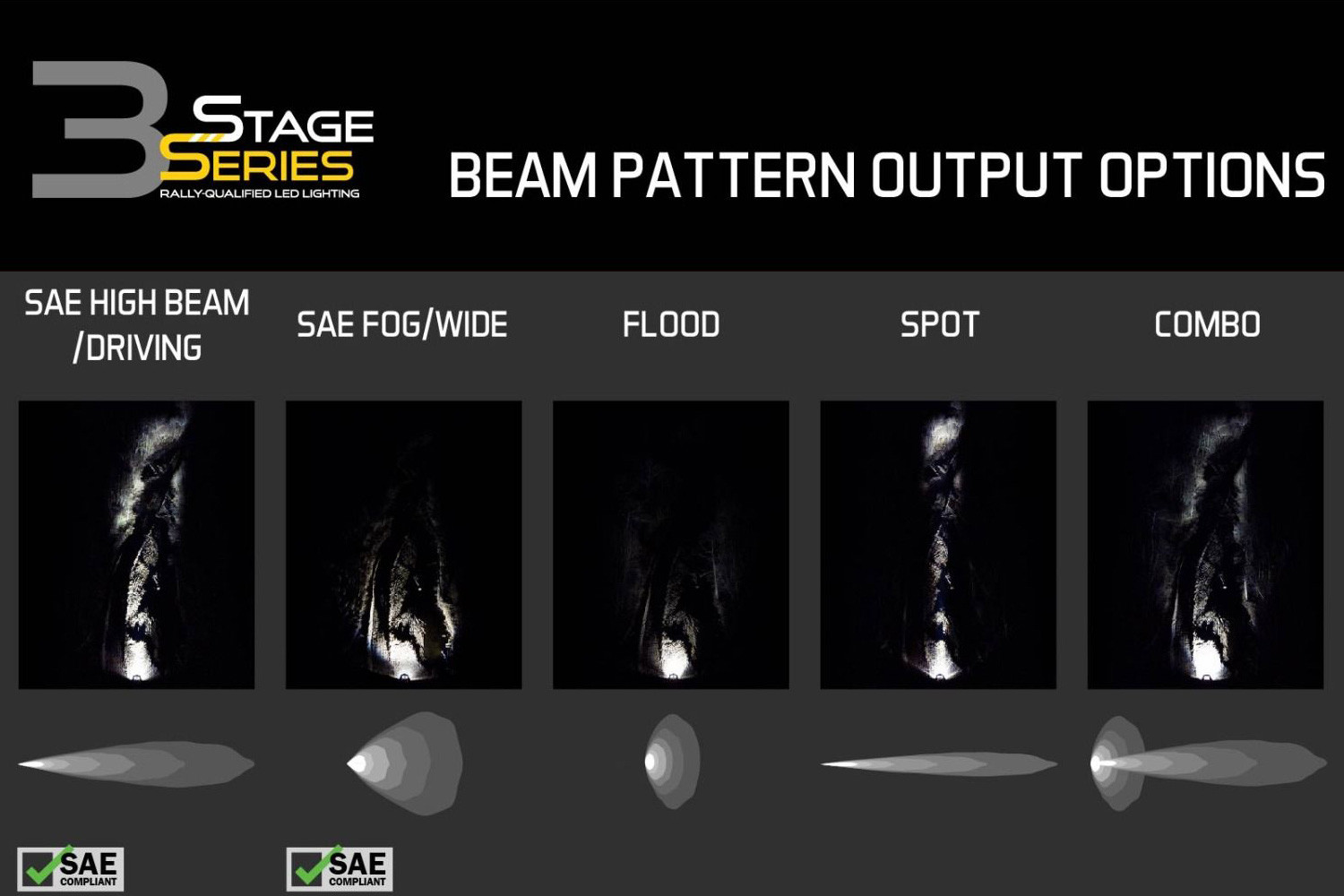

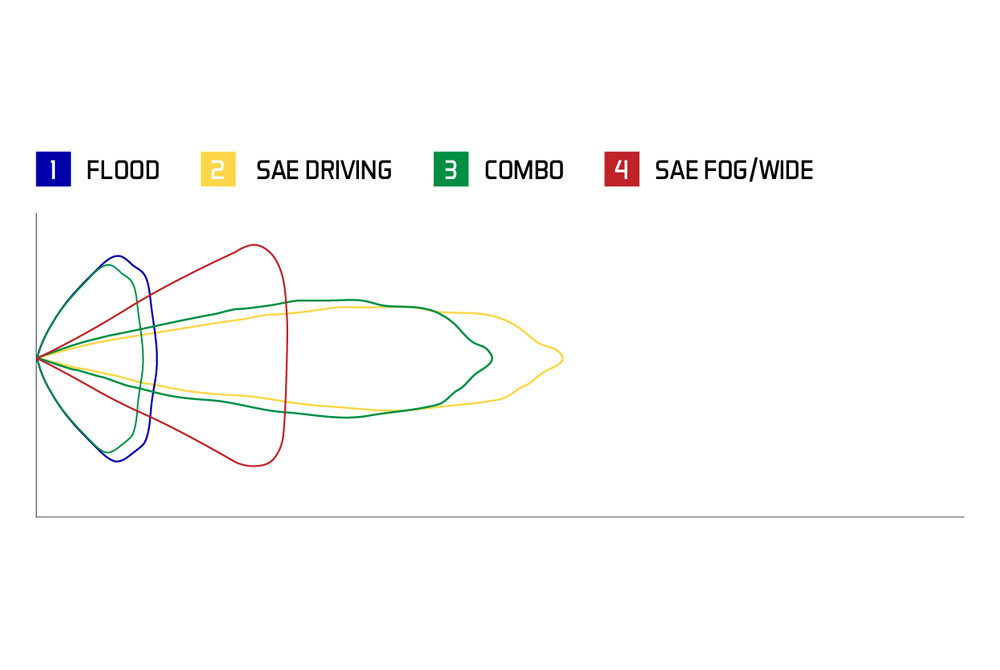

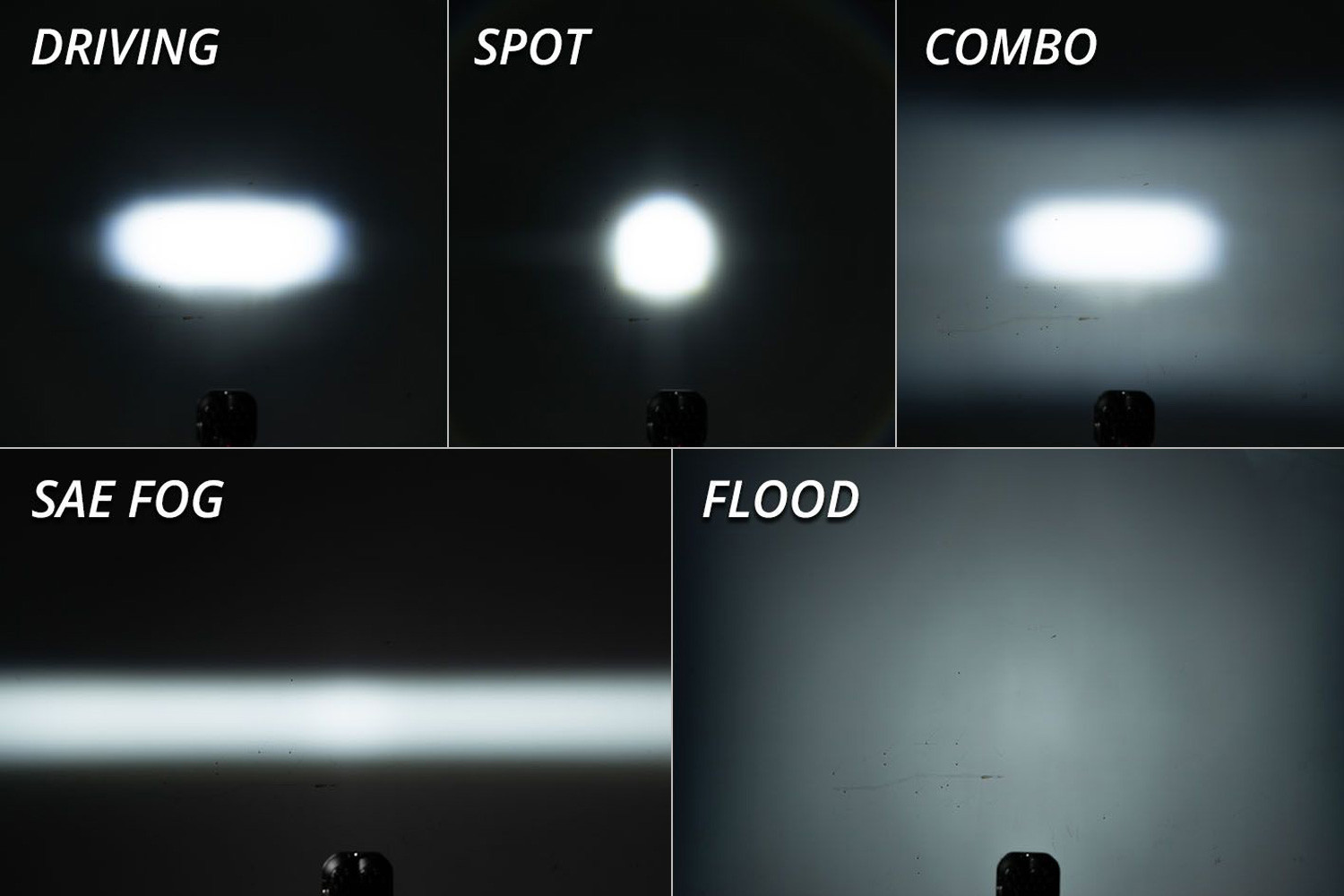

Beam pattern	combo beam
Bulb type	LED
Series	Stage Pro Series
Mount type	flush mount
Color/finish	black
Light Color	white

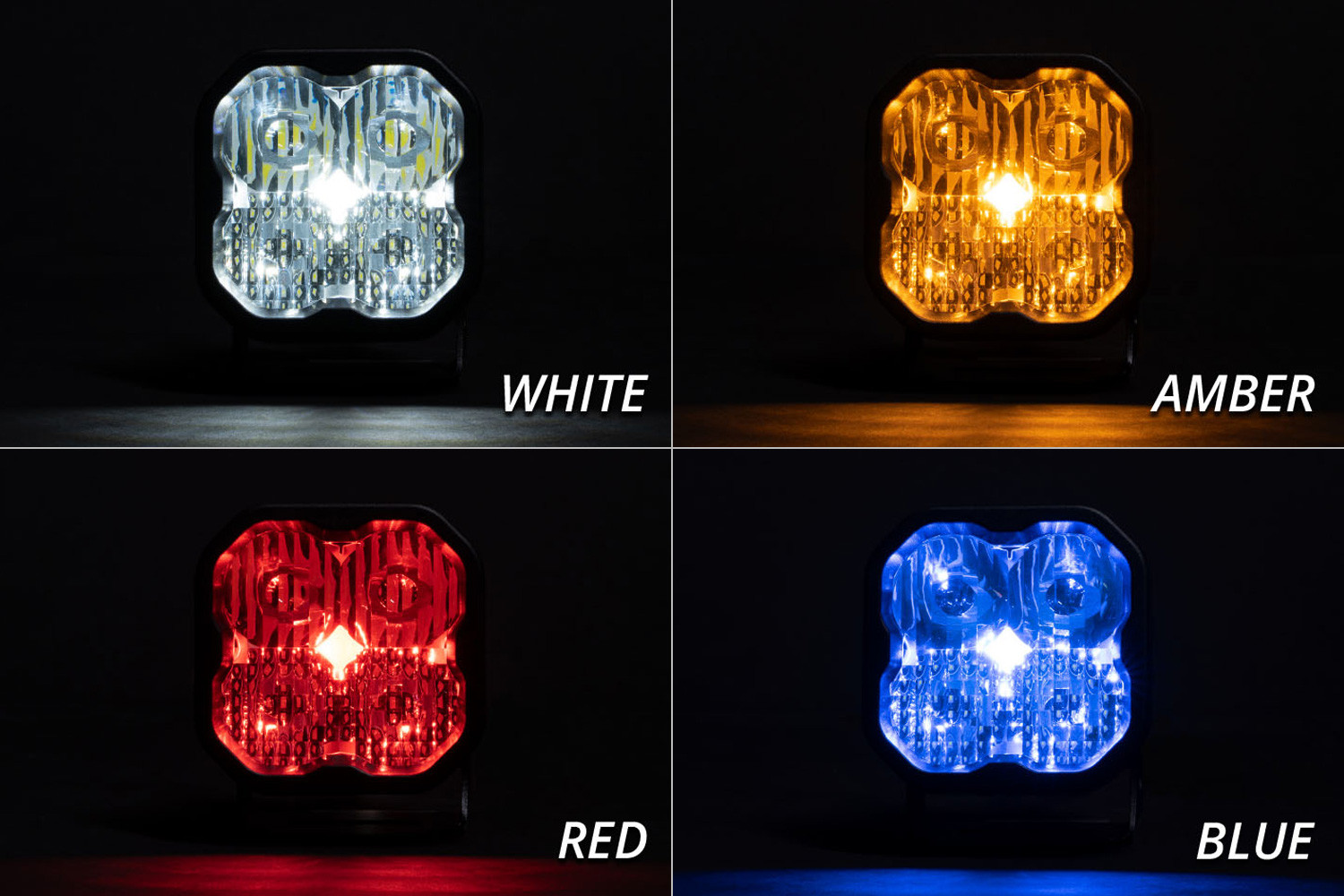

Backlight color	amber
Shape	square
Voltage	9-16V
Amperage	2.7A
Raw lumens	3000; Effective lumens: 5796
Color temperature	6000K
Lux @10M	351
Candelas	35100 CD

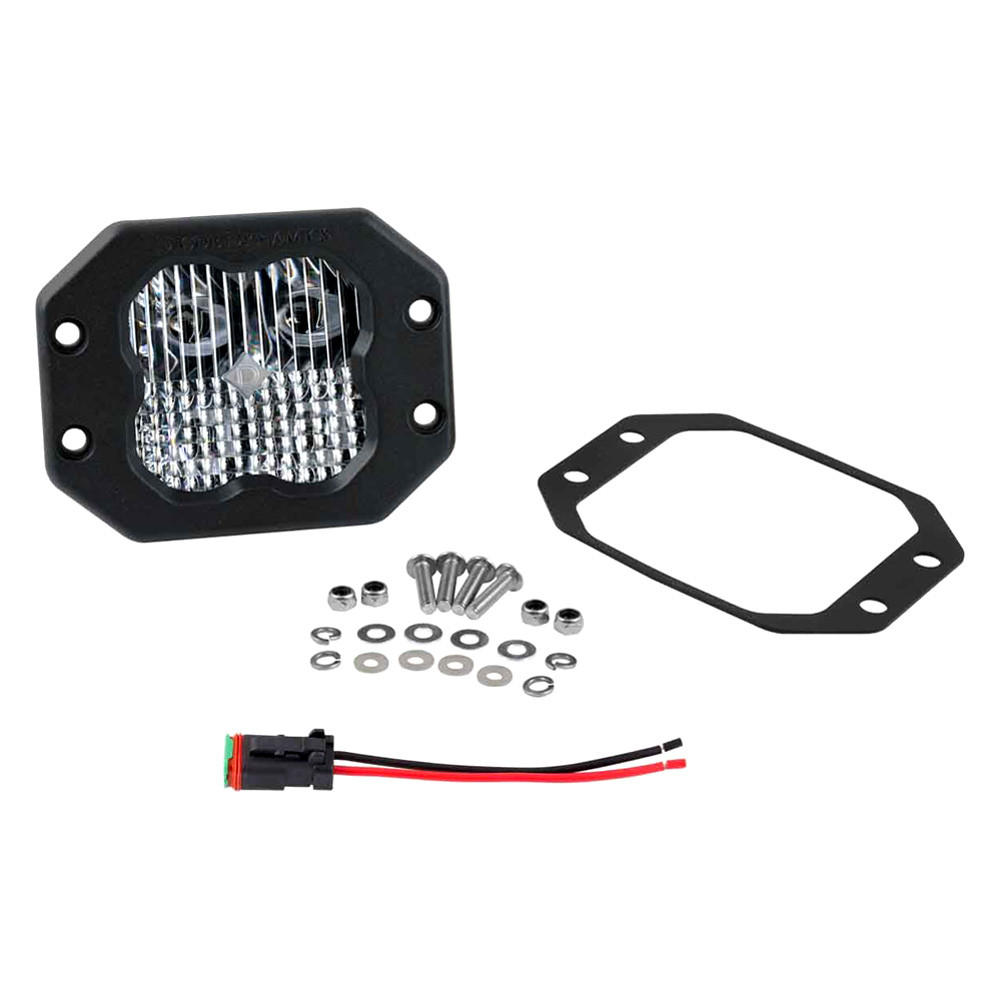

Includes

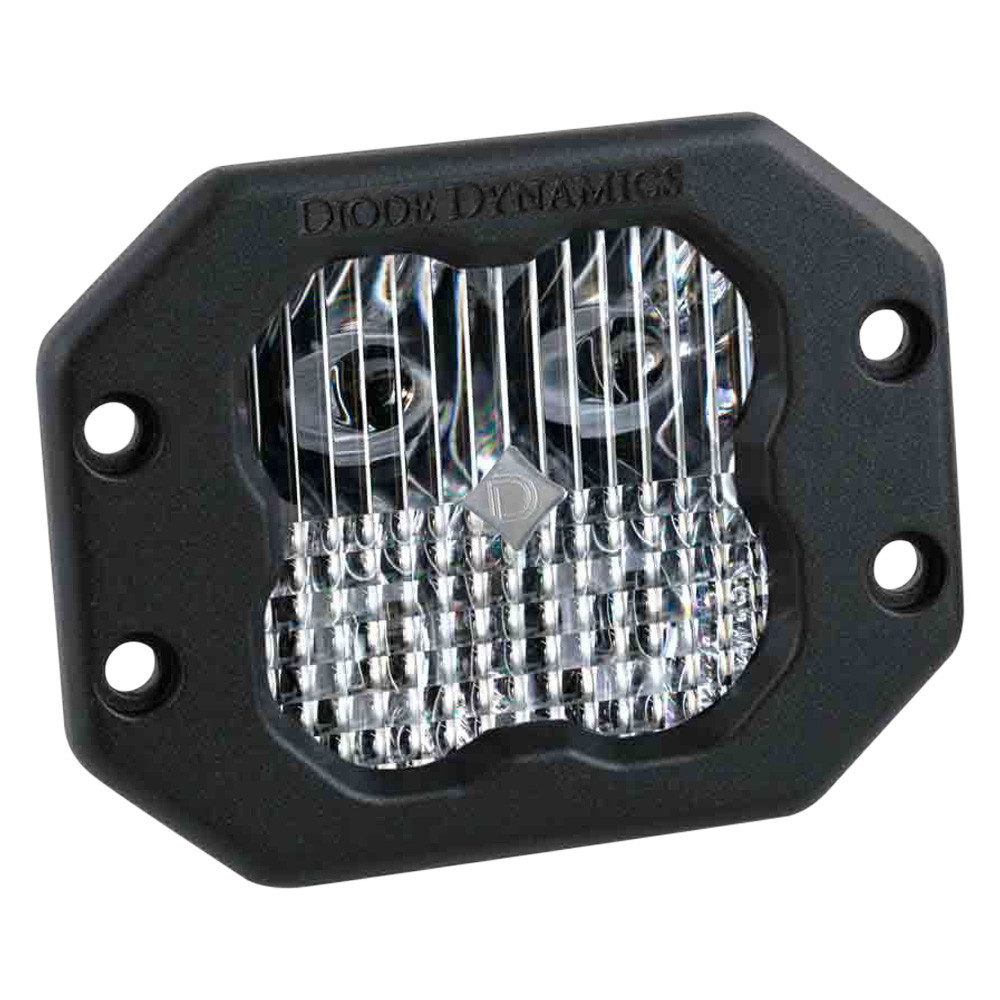

(1) SS3 3" flush LED pod
(1) Deutsch-style wire pigtail
(1) Flush frame gasket
Mounting hardware and drilling template
Specification guide

Features

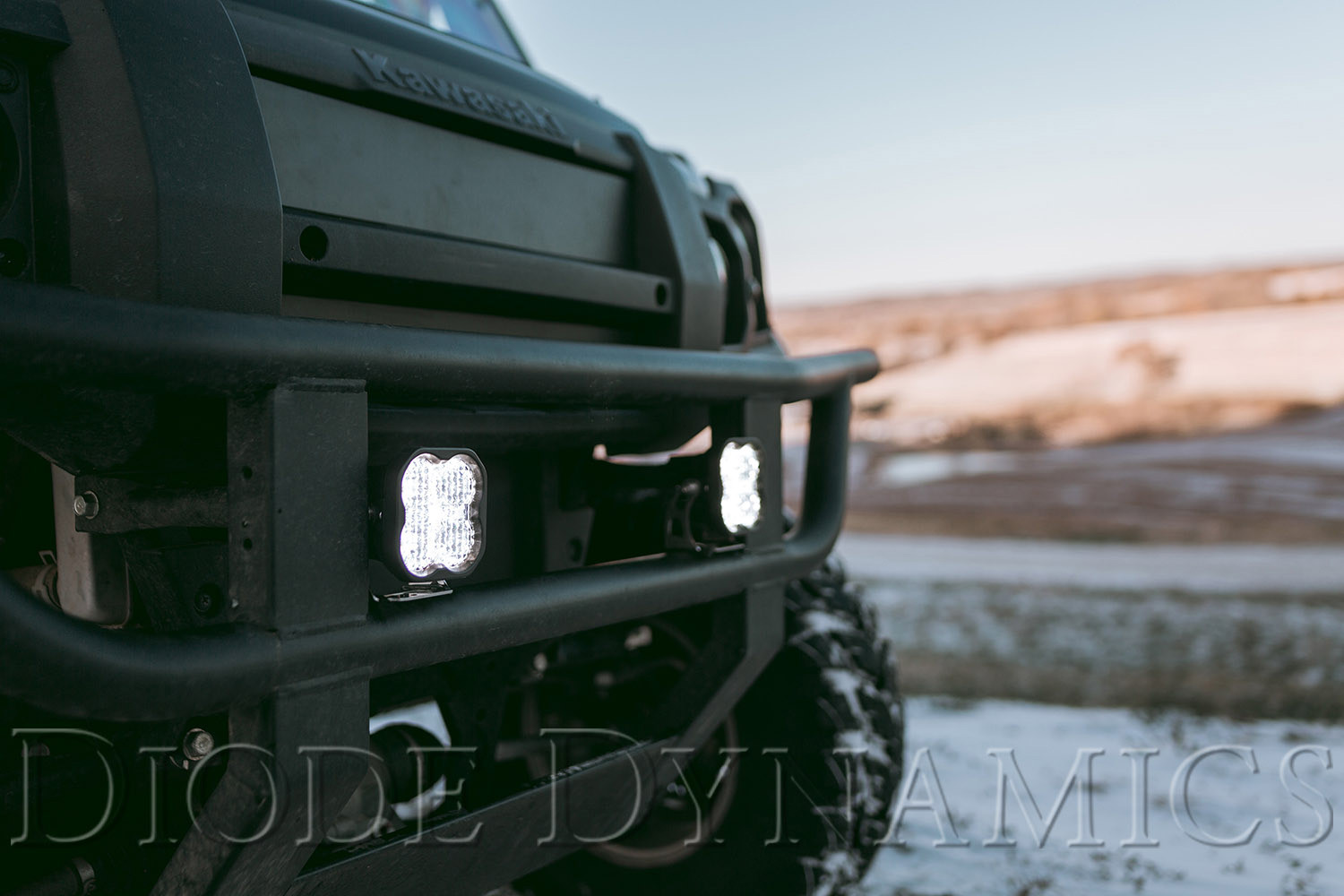

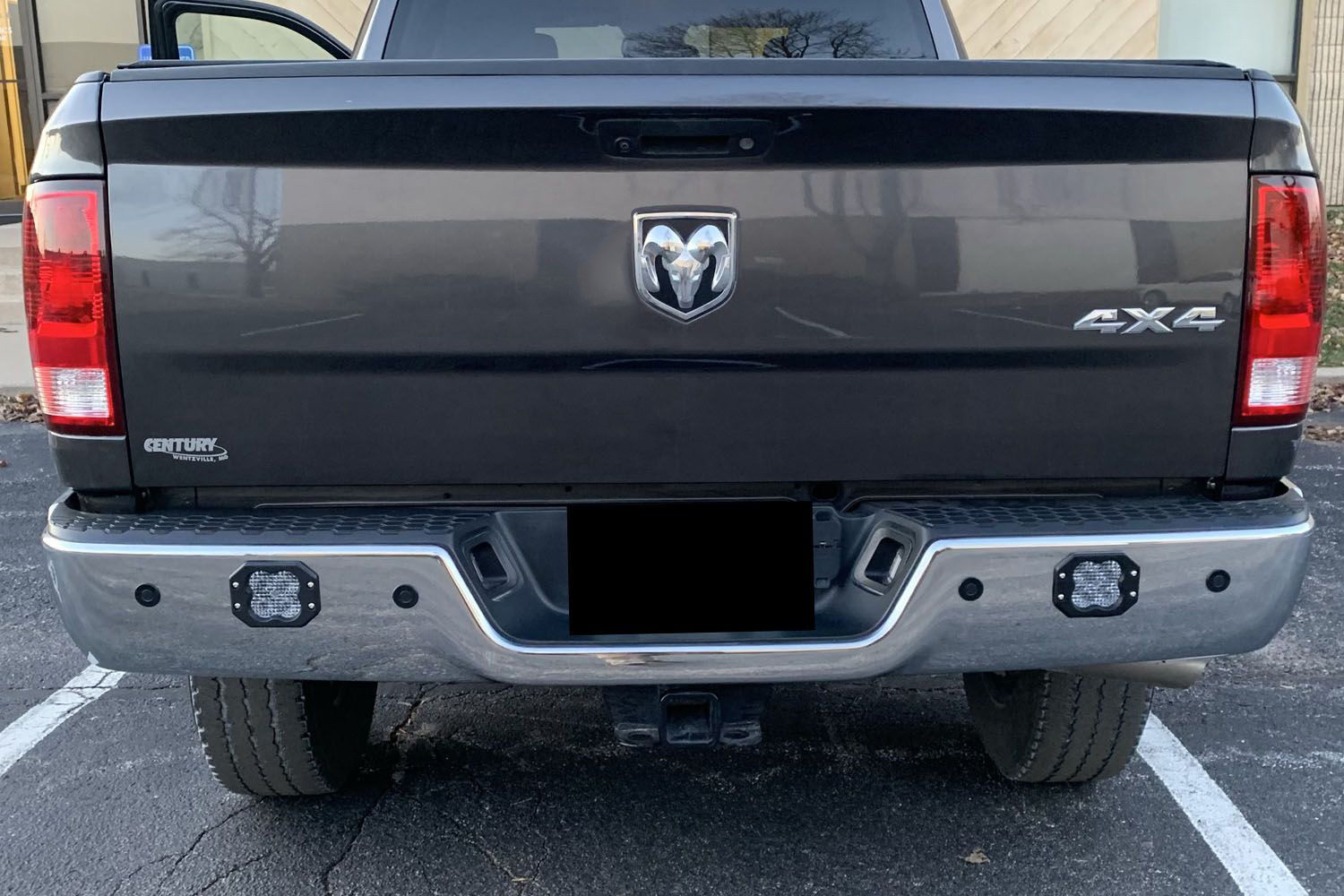

Allows for flush installation on bumpers and truck beds
Advanced TIR optics provide high efficiency and focus
Pin-fin heatsink design, for superior thermal dissipation
Integrated Deutsch-style connector
Durable powdercoated aluminum construction
Engineered and Assembled in USA

Product Details

Universal Stage Pro Series Flush Mount 3" 36W Square Combo Beam LED Light, With Amber Backlight (DD6936S) by Diode Dynamics®. 1 Piece. White light. 9-16V. 2.7A. Raw lumens: 3000; Effective lumens: 5796. 6000K. Add LED pods to your bumper, truck bed, or anywhere else you can think of with SS3 Flush Mount Pod Kit! Featuring higher output intensity than any other 3" light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.

Installation

Diode Dynamics® - Stage Pro Series Flush Mount 3" 36W Square Combo Beam LED Light, with Amber Backlight, Installation Instructions

Diode Dynamics® - Stage Pro Series Flush Mount 3" 36W Square Combo Beam LED Light, with Amber Backlight, Installation Instructions Diode Dynamics® - Stage Pro Series Flush Mount 3" 36W Square Combo Beam LED Light, with Amber Backlight, Guide Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD6936S

UPC:

691025933222

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
