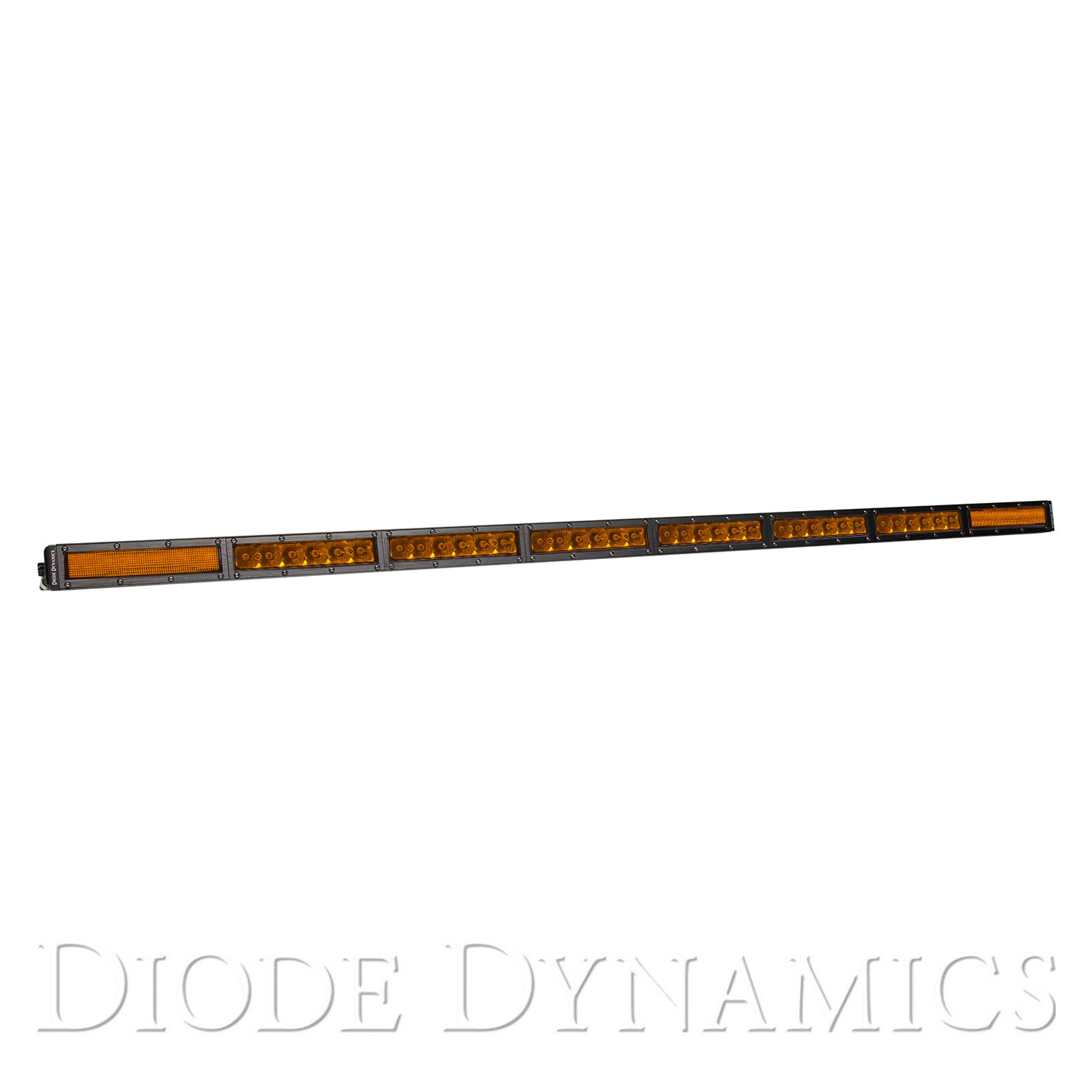

Name: Diode Dynamics® DD5057 - Stage Series Custom 50" 259W Combo Beam Amber LED Light Bar
Brand: Diode Dynamics
SKU: mpn4651303575
Price: 719.95 USD
Availability: Discontinued

Vehicle Fitment

This part is universal

Specifications

Size	50"
Watts (per kit)	259W
LEDs/bulbs quantity	48-LED
Beam pattern	combo beam
LED rows	single row
Bulb type	LED
Series	Stage Series
Housing color	black
Light Color	amber
Material	aluminum
Shape	straight
Voltage	9-16V
Amperage	18.5A
Raw lumens output	9120; Effective lumens: 6400
Color temperature	2000K
Lux at 10 meters	2004

Includes

(1) 50" LED light bar
(1) Wire pigtail
Universal bracket set
(1) Hardware
(2) M6 hex screws, for main mounting point
(2) M5 hex screws, for rear mounting point

Features

Advanced TIR optics provide high efficiency and focus
Operating temperature: -40C to 85C (-40F to 185F)
Intrusion ratings: IP68 waterproof

Product Details

Universal Stage Series Custom 50" 259W Combo Beam Amber LED Light Bar (DD5057) by Diode Dynamics®. 1 Piece, 48-LED. Black housing. 9-16V. 18.5A. Raw lumens output: 9120; Effective lumens: 6400. 2000K. With polycarbonate lens. Introducing Stage Series LED lighting! Inspired by the needs of a professional rally driver, these light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package.

Diode Dynamics® - FAQ Diode Dynamics® - Warranty Diode Dynamics Authorized Dealer Catalog Additional Information About us

Brand:

Diode Dynamics

Part Number:

DD5057

UPC:

691026115887

Warranty

All Products: 3-Year Replacement Limited Warranty

Diode Dynamics carries a 3-year limited warranty on all products, for manufacturing defects or product failure. If Diode Dynamics determines that your product is defective in material or workmanship, Diode Dynamics will issue an RMA number. For approved warranty claims, Diode Dynamics will replace the defective product with the same product or, if it has been discontinued, one comparable in performance and value. Diode Dynamics product warranty is limited to product replacement only. Diode Dynamics does not offer compensation or coverage of installation labor or time that may be required for replacement of warranty items.

Select Products: 8-Year Limited Warranty

In addition to the above 3-Year Replacement Limited Warranty, Diode Dynamics carries an 8-year Limited Warranty on select products. Currently, this includes and is limited to all Stage Series products. After 3 years of Replacement Limited Warranty, Diode Dynamics will continue to warrant that select products are free of defects for up to 8 years from when the product was ordered. These products will be replaced or repaired, at the sole discretion of Diode Dynamics.

All warranties are non-transferable. Warranty terms and policies are subject to change without notice. All warranties, expressed or implied, are void if the warranty claim department determines that there is sufficient evidence of one or more of the following:

Negligence: Improper installation or improper use, including using or installing any product in a manner not specified by Diode Dynamics, or damage caused by improper installation
Abuse: Damage beyond the limits of "normal wear and tear"
Unauthorized Repair: Repair service performed or attempted by an unauthorized party
Unauthorized Dealer: Purchase of items through any unauthorized party

Some products may be modified in the course of installation or use by the customer to suit a particular need. However, opening, disassembling, cutting wires, or otherwise modifying any product in a manner not specified by Diode Dynamics will void the product warranty.

Replacing lenses on lightbars will void the 3-year limited replacement warranty. However, the 8-year limited warranty will be upheld and in effect. In the case of moisture intrusion, you may be required to open and re-seal the lamp yourself. If issues persist, Diode Dynamics may require that the lightbar is sent for repair.
