Oracle Lighting® 5769-001 - 7" Round Black Projector LED Headlights with White SMD Halos Preinstalled (H6024)

5 reviews|Item # mpn478136552
Vehicle Specific
  • Please Select Vehicle
Select Vehicle
Notes:
  • White and Amber are the legal colors Nationwide. Red and Blue are considered emergency vehicle lights and are not legal. Driving Laws can vary from state to state, please verify with your state laws, prior to making your halo color selection
  • This is a Special Order product and, therefore, Non-Cancellable and Non-Returnable
Authorized Dealer
$279.86
In Stock (124) - Ships in 24 to 48 hrs
Authorized Dealer
Have a Question? Ask a Specialist
888-903-4348Live Chat

Vehicle Fitment

MakeModelYear
CrosleyFarm-O-Road 1950-1952
MorrisMoke 1968

Product Details

Universal 7" Round Black Projector LED Headlights with White SMD Halos Preinstalled (H6024) (5769-001) by Oracle Lighting®, 1 Pair. Black housing, clear lens. SMD halos offer an intense appearance and a bright output. Can be clearly seen during the day and at night. These are the most popular to date.

Notes

  • White and Amber are the legal colors Nationwide. Red and Blue are considered emergency vehicle lights and are not legal. Driving Laws can vary from state to state, please verify with your state laws, prior to making your halo color selection
  • This is a Special Order product and, therefore, Non-Cancellable and Non-Returnable

Specifications

Bulb type: premium performance Phillips Luxeon ZES LEDs
Low beam power (normal/max): 30W/36W
High beam power (normal/max): 40W/48W
2200lm @ low beam /3600lm @ high beam
Raw lumens (low beam): 3600
Raw lumens (high beam): 4800
Color temperature: 6000K (cool white color)
Input voltage (light): 12-24V
Input voltage (halo): 12V
Current draw: 2.5A @ 12V DC/ 1.3A @ 24V
Housing material: die-cast with corrosion resistant coating
Lens material: hard-coated polycarbonate lens (PC)
Output connector: H4
Wide beam pattern with sharp cut-off line
DOT and SAE compliance

Includes

  • (2) 7" Round Projector Headlights with pre-installed Oracle halo rings
  • (2) H4 to H13 headlights connectors with CANBus protection

Features

  • Plug & Play Design - These factory style, OEM Lights can be installed on your vehicle. No modification required
  • White and Amber are the legal colors Nationwide. Red and Blue are considered emergency vehicle lights and are not legal. Driving Laws can vary from state to state, please verify with your state laws, prior to making your halo color selection
  • LEDs Made in the USA
  • Lifetime warranty on halos
  • All Headlights with pre-installed halos are custom made for each client and, therefore, are Non-Cancelable and Non-Returnable (except for manufacturing defects)

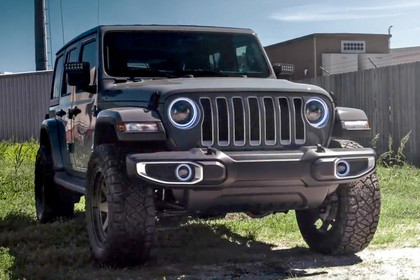

Installation

Oracle Halo Kits are the single most head-turning modification you can do for such a small investment. Throw out what you think you know about Halo lights because you have not seen anything until you have seen a set of Oracle Halos in person. These Halos utilize the latest technology and can be seen vividly even in direct sunlight. Regardless of what you drive, Oracle has a Halo solution for you.

Oracle LED (SMD) Halo Kits use High-Powered Surface Mount Diodes to produce brilliant luminescence that is easily visible even in direct sunlight. These LED Halo Rings are composed of a 6-Layer circuit board which give the ring a rigid structure. The rings are powered directly to 12V power without any inverter or other external device. These rings are also available in ColorSHIFT which can change into hundreds of different colors.

Oracle Halos... Get Noticed! It goes without saying but when you pull up to the local Friday Night car meet and switch on a set of Oracle Halos as you pull into the parking lot... heads turn! These lights do not look like cheap set of "off the shelf" headlights... because they are not. These Halos install into seamlessly your existing quality OE factory lights which preserves the original styling of the vehicle while adding your own custom flare! Unlike other cheap "halo" headlights that use one LED to illuminate the ring the ORACLE rings have HUNDREDS of high quality 3528 Bridgelux (Made in the USA) LEDs. This product is so well engineered that it will outlive your car... GUARANTEED! That is right, these kits carry a LIFETIME Warranty.

Oracle Lighting Technology proudly stands by the durability, safety, and full functionality of these lights. These Pre-Assembled Lights comply with the applicable safety and function requirements of U.S. Department of Transportation's Federal Motor Vehicle Safety Standard 108 (FMVSS) and SAE.

Oracle Lighting® has been on the cutting edge of lighting design and technology since 1999. They vigorously stepped into the industry and quickly established themselves as competitive front runners. Even though Oracle Lighting is known in the automotive world mostly for its line of Headlight Halo Kits, the company has much more bright and eye-catching lighting products to offer. It also creates excellent lighting solutions for the biggest market for accessory lighting – off-road segment. Oracle Lighting is the greatest choice for all your lighting needs.

Part Number:
5769-001
UPC:
810030390398
Alternate MPN:
5769001

Reviews

(5)
Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
Oracle Lighting® 5769-001 - 7" Round Black Projector LED Headlights with White SMD Halos Preinstalled (H6024)
/5
1-5 of 5 Reviews
3 of 5
Great Lights but...
Oracle Lighting® 5769-001 - 7" Round Black Projector LED Headlights with White SMD Halos Preinstalled
Headlights themselves are excellent. They do not however fit the stock Jeep JK headlight pan without modification of the notches. The wiring harness adapters are less than ideal as well. The wife loves them on her JK and that is all that matters in the end.
Posted by Mark (Lubbock, TX) / January 21, 20192014 Jeep Wrangler
5 of 5
Halo Headlights By Oracle
Oracle Lighting® 5769-001 - 7" Round Black Projector LED Headlights with White SMD Halos Preinstalled
Love the new headlight I put in, the halo quality is super nice compared to other brands! Easy plug and play and with some house keeping and wire splicing will make a good result!
Posted by Matthew (Spokane, WA) / March 17, 20182011 Jeep Wrangler
Nice bright green halo’s, projector LED headlights are very bright!!
Posted by Kerry (Livonia, MI) / February 24, 20182007 Jeep Wrangler
I don't need to buy a new car it looks new again.
Posted by Jacob (Broomfield, CO) / February 06, 20182006 Jeep Wrangler
I love these new lights they're bright and look great. Definitely what I wanted as a replacement to the factory lights. Fairly easy to install I just watched a video on YouTube and they explain exactly what you have to do.
Posted by Humberto (Queens Village, NY) / March 07, 20172014 Jeep Wrangler
