Vehicle Fitment
Information is not available
Specifications
| Specifications of Stator | |
|---|---|
| Dimensions | |
| Interior diameter | |
| Exterior diameter | |
| Thickness | |
| Length of wires stator to grommet | |
| Length of wires grommet to plug | |
| Length of pickup coil's wire to grommet | |
| Other specifications | |
| Number of wires | |
| Number of plugs | |
| Number of pins | |
| Wire to wire resistance | |
| Alternator | |
| Pickup | |
| Specifications of Flywheel | |
| Exterior Diameter | |
| Interior Diameter | |
| Interior Diameter Center Housing | |
| Exterior Diameter Center Housing |
Features
- Direct replacement to your original unit
- Pick up pulsar coil included

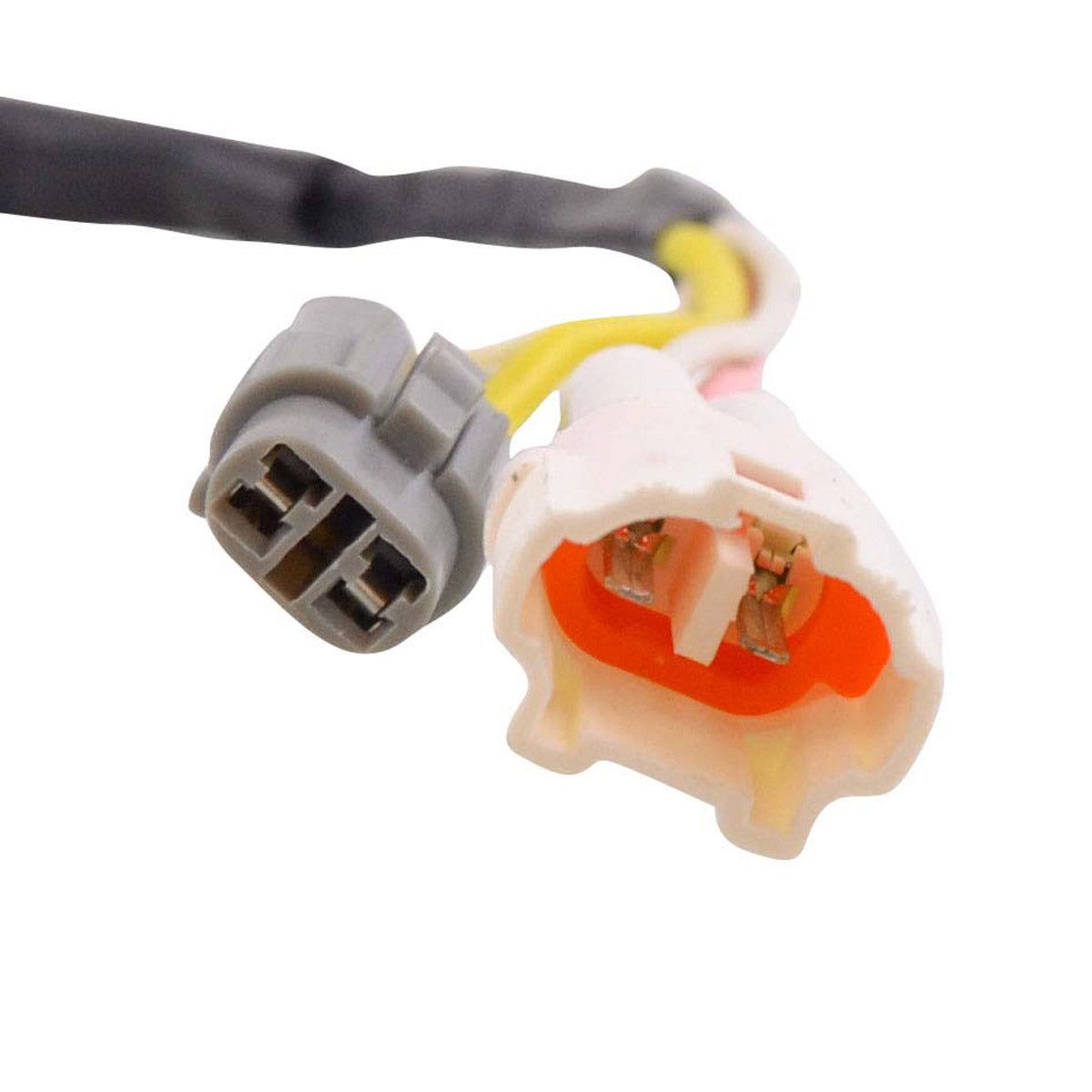

- Connector included

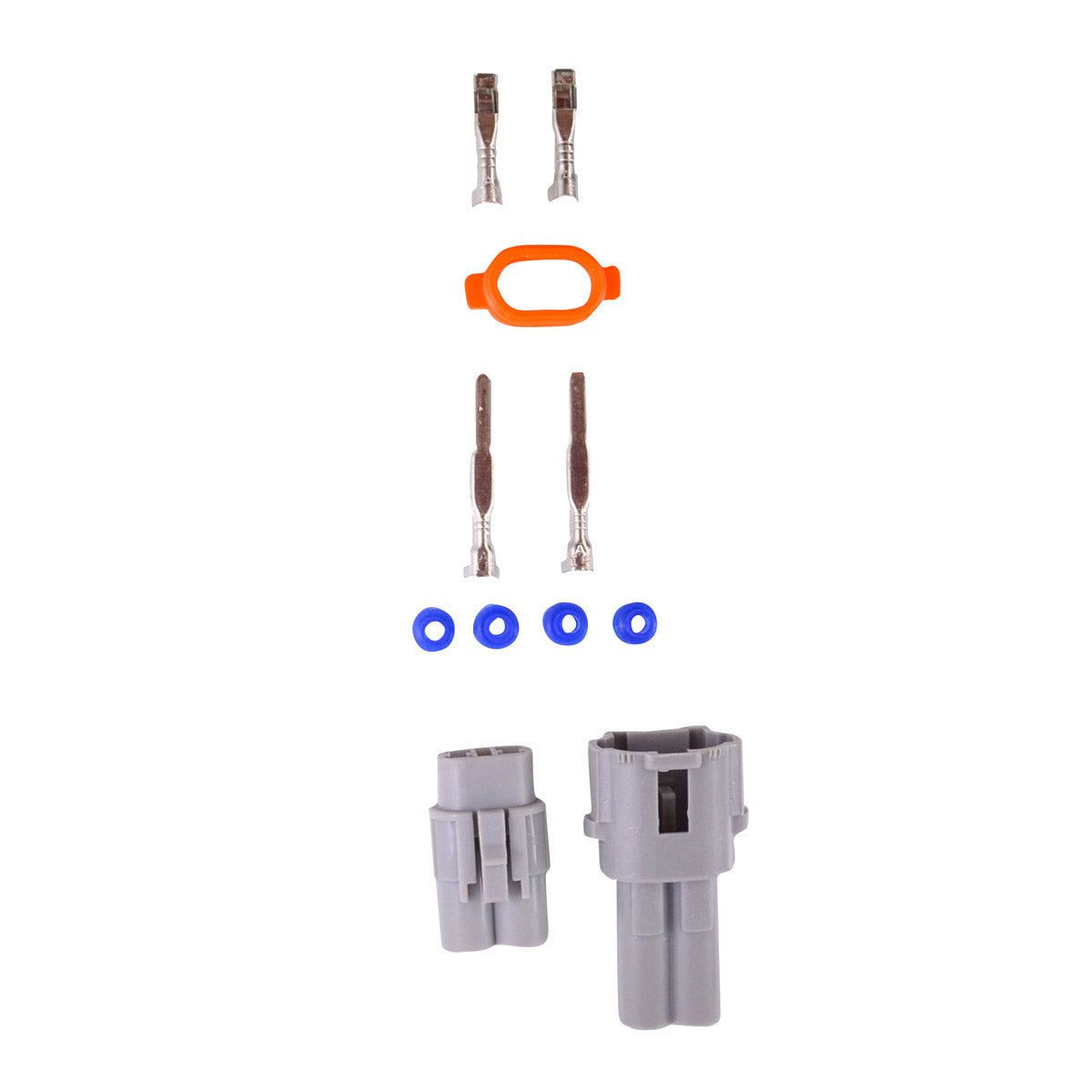

- Opposite connector included
- Rubber grommet included
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- All products shipped are tested
Product Details

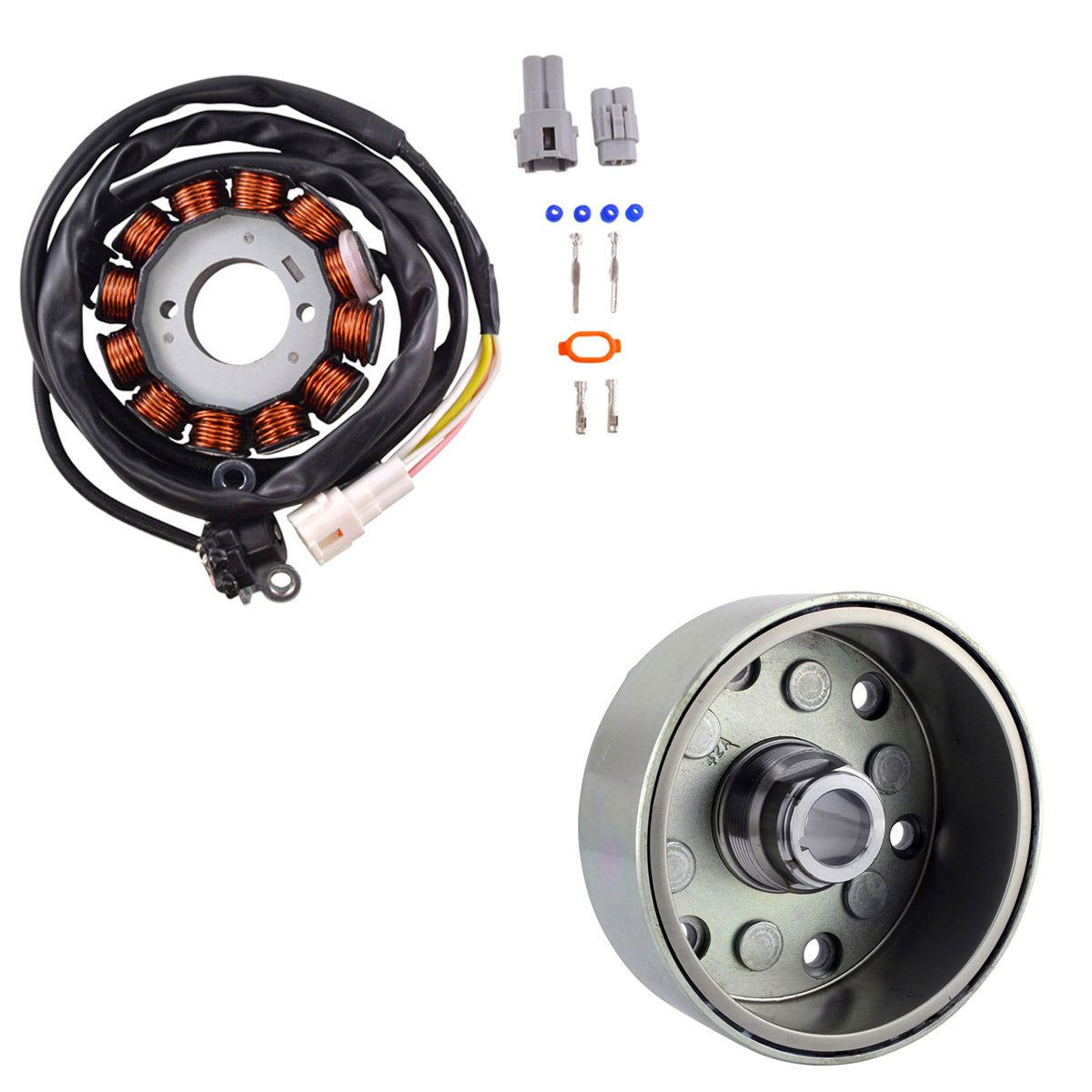

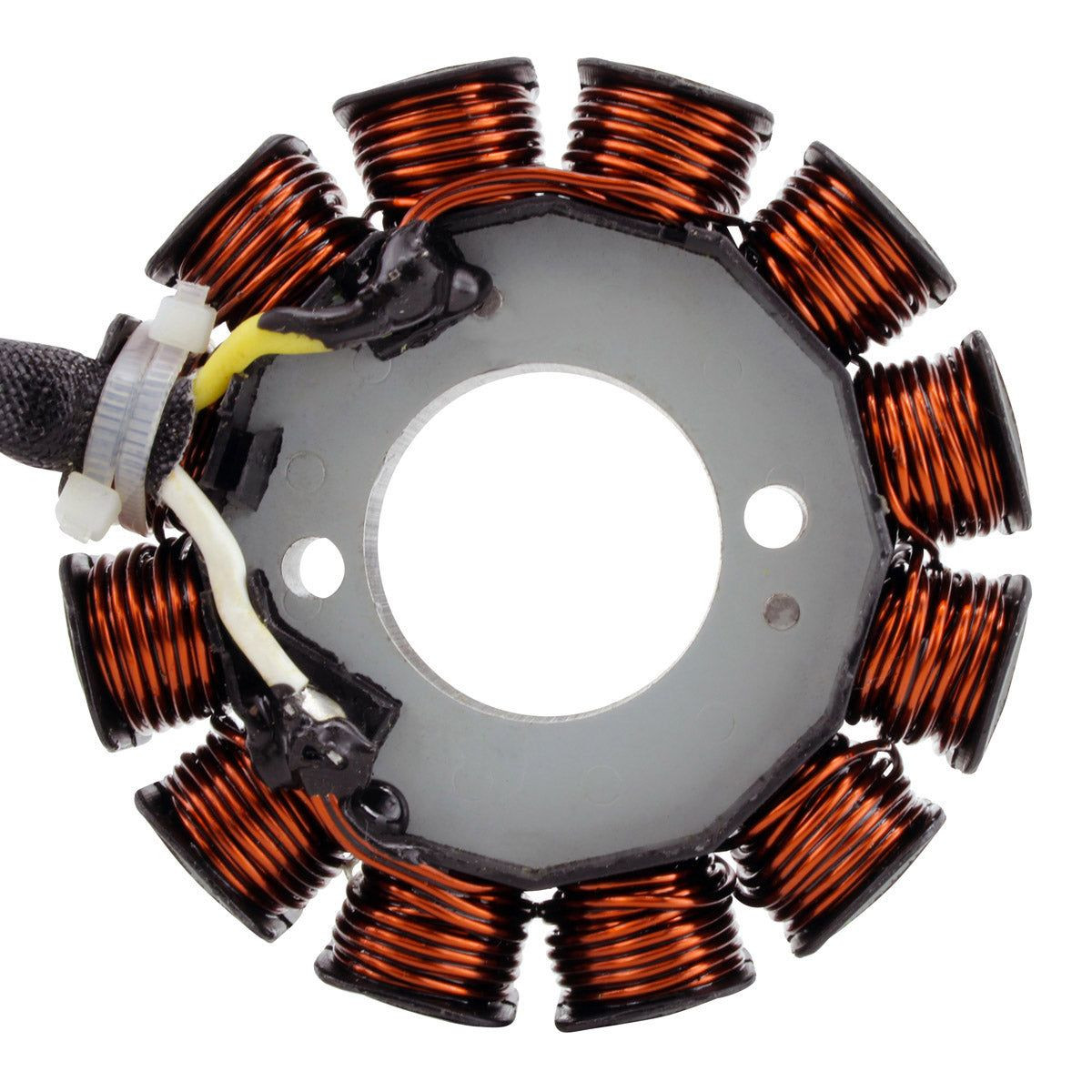

Flywheel + 140W High Output Stator Kit by RMStator®. Brand New High Output Stator + Magneto Flywheel Rotor. High output stator generating 140W available for added accessories . This top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship. Manufactured from industry-leading materials using up-to-date equipment, it ensures everlasting reliability and enduring value. This product is distinguished by total quality assurance, unsurpassed by anybody else.

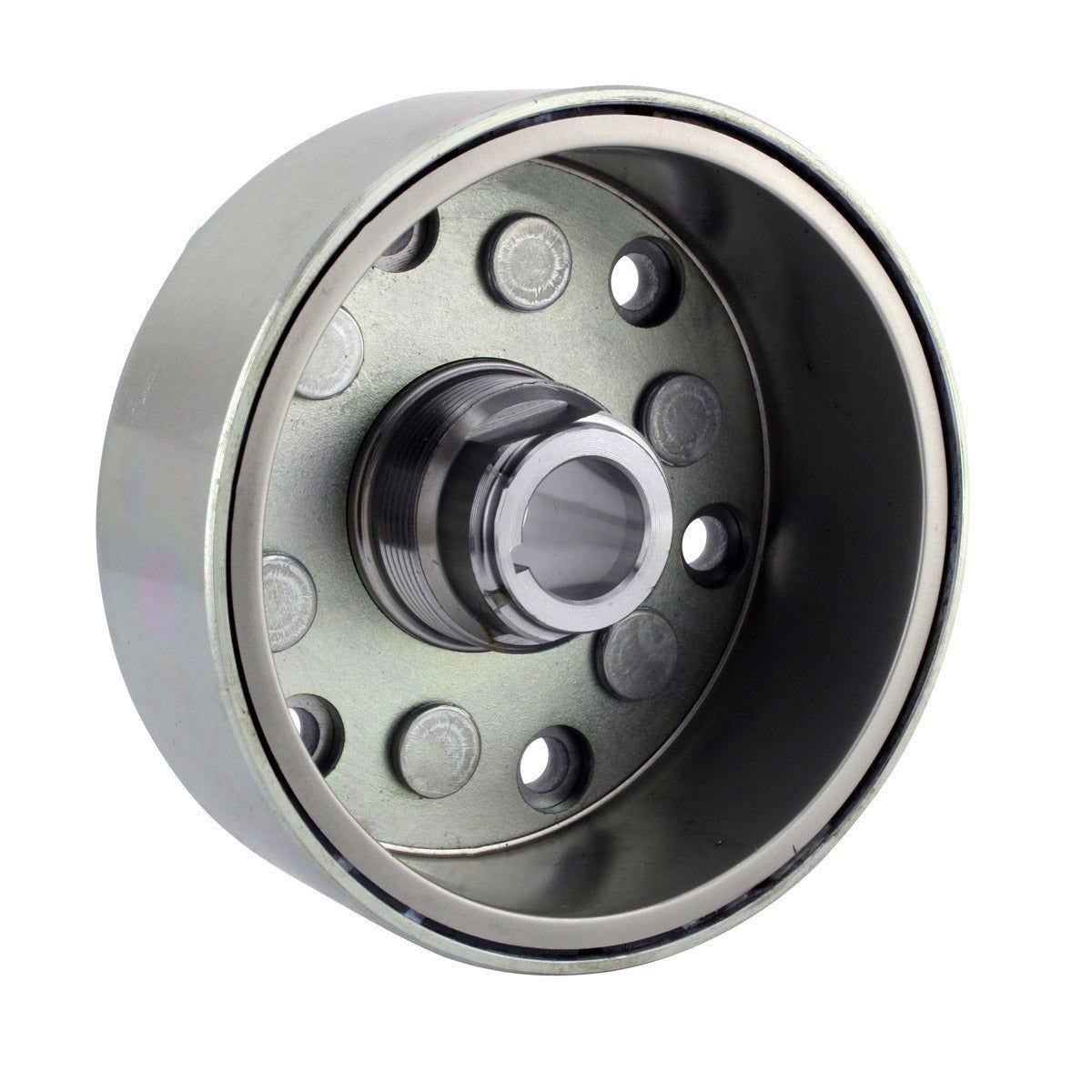

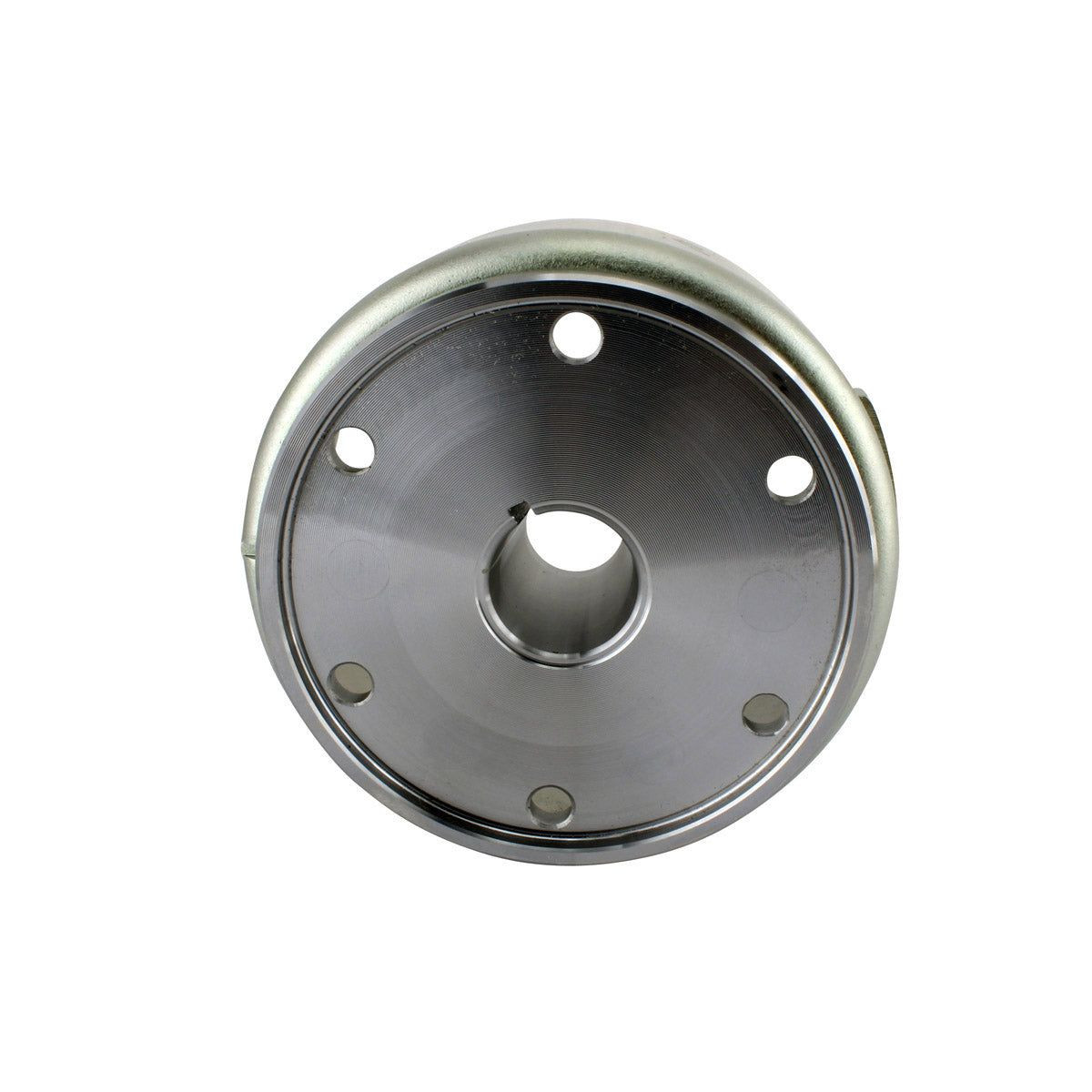

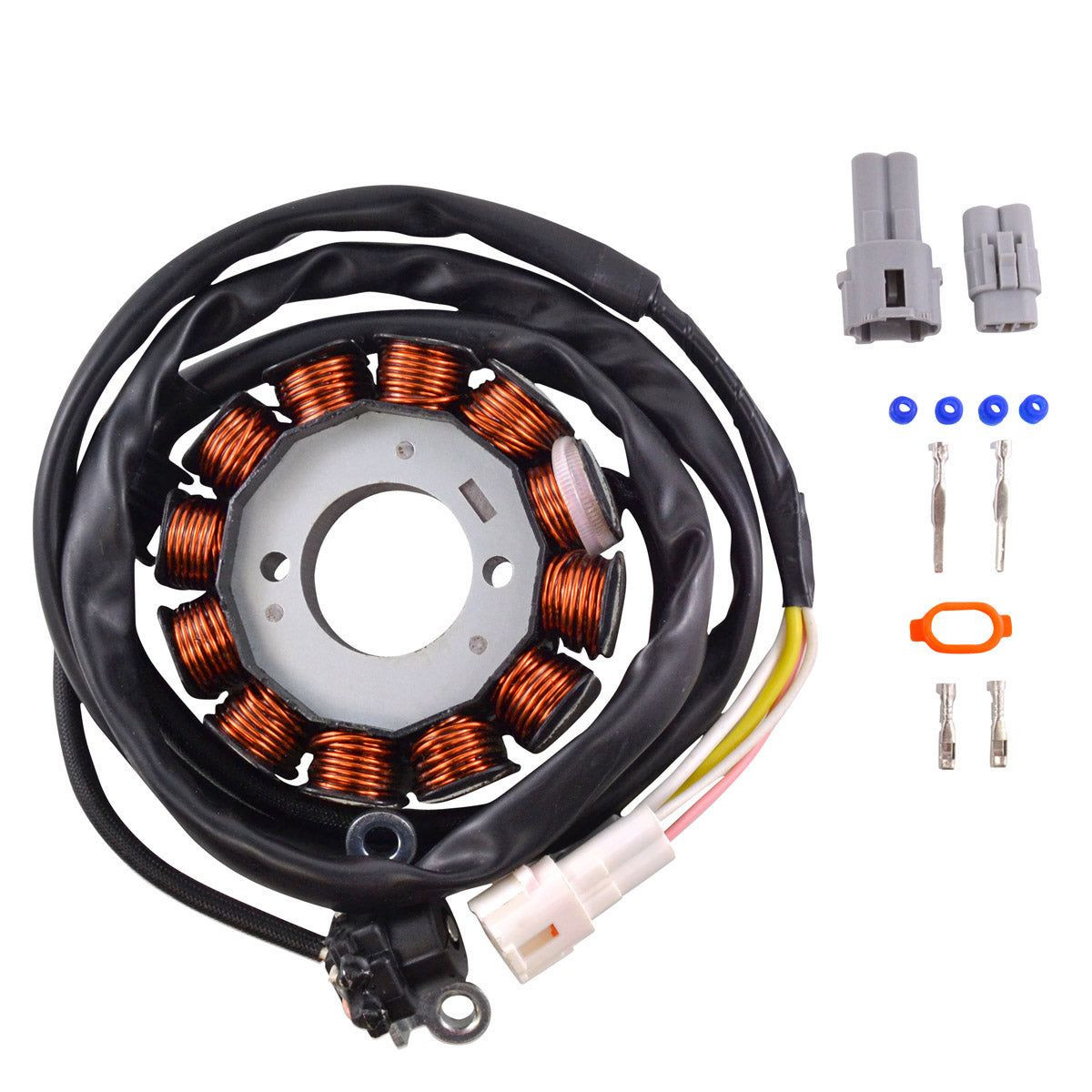

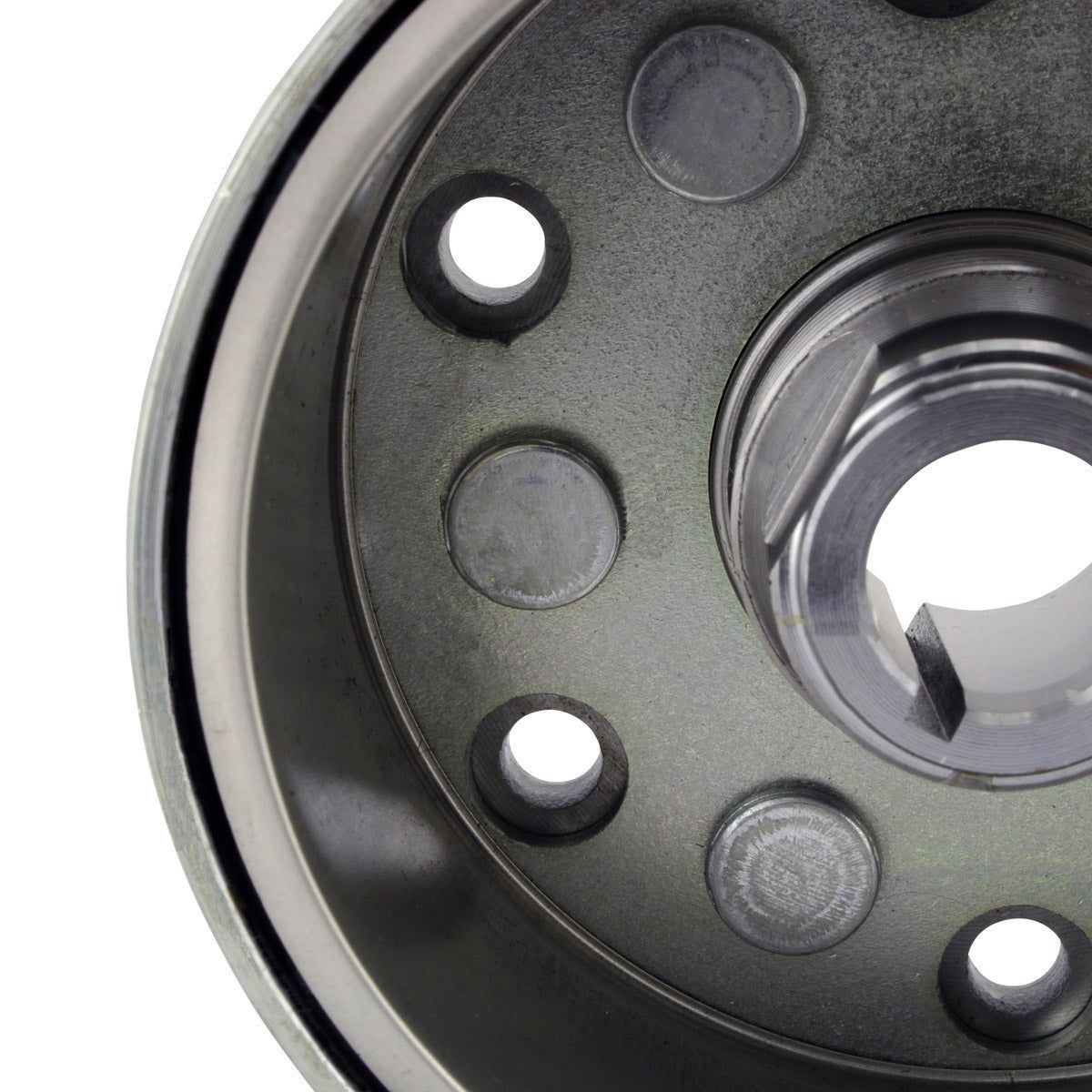

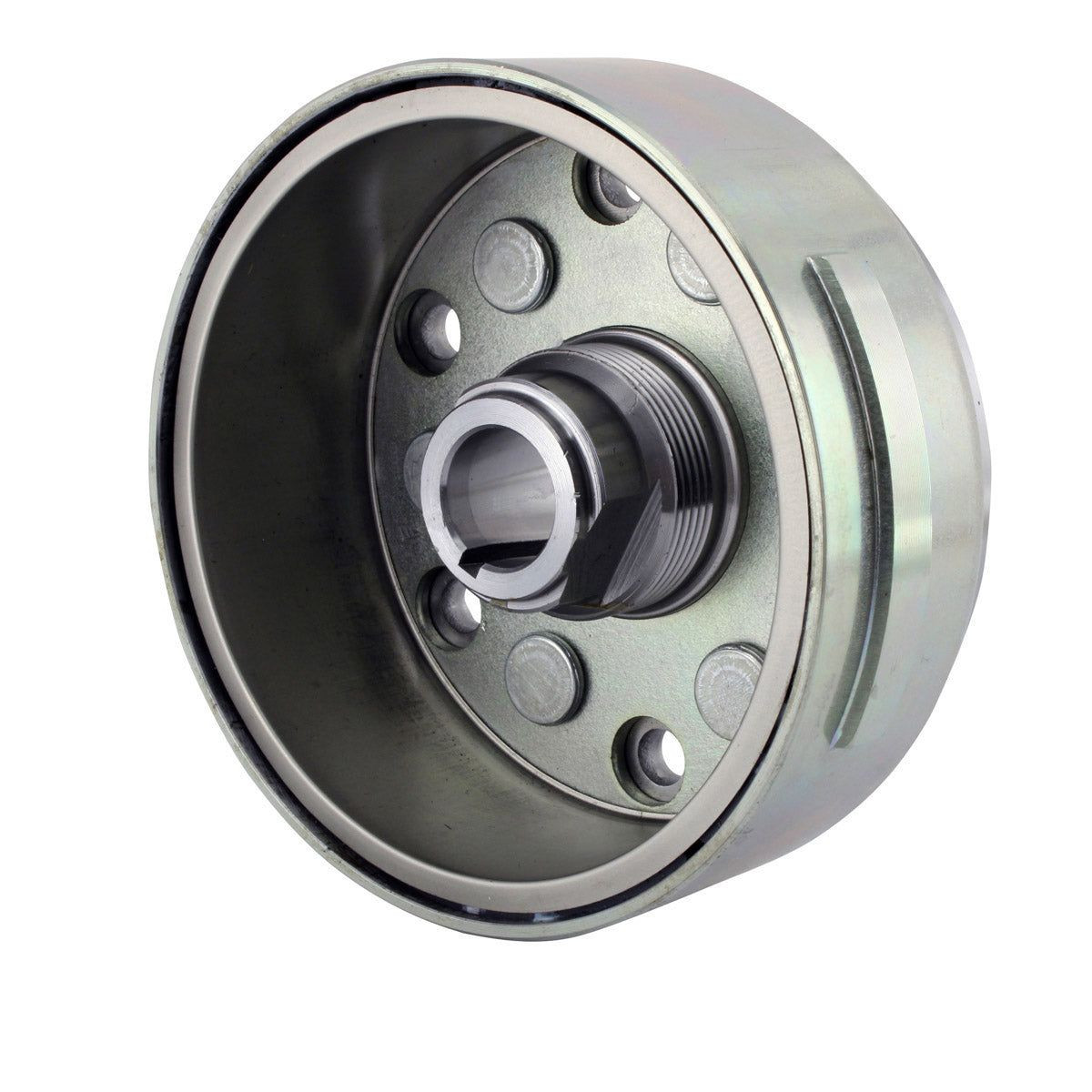

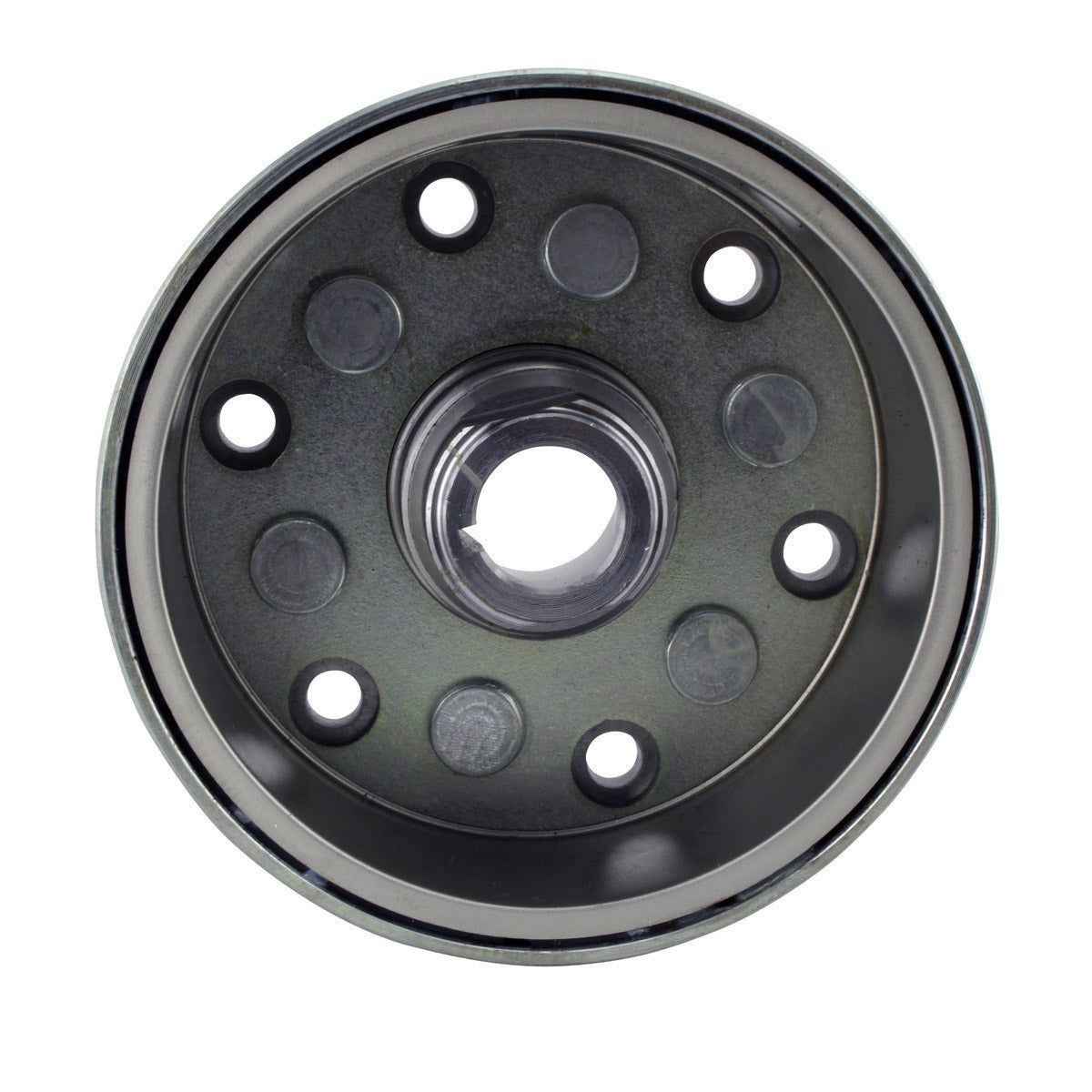

Brand New High Output Stator + Magneto Flywheel Rotor
Direct replacement to your original unit
Pick up pulsar coil included
Connector included
Opposite connector included
Rubber grommet included

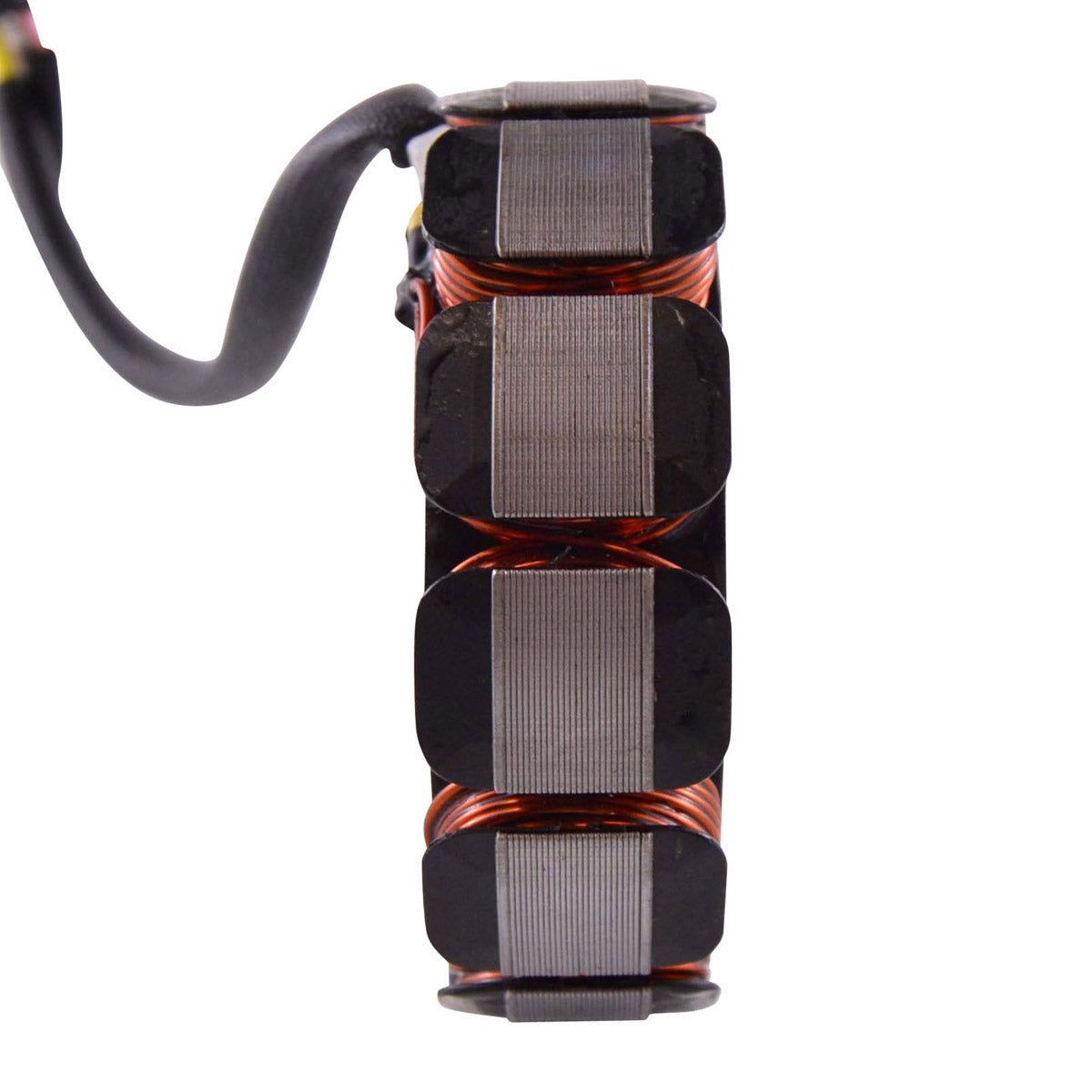

Highest grade lamination materials

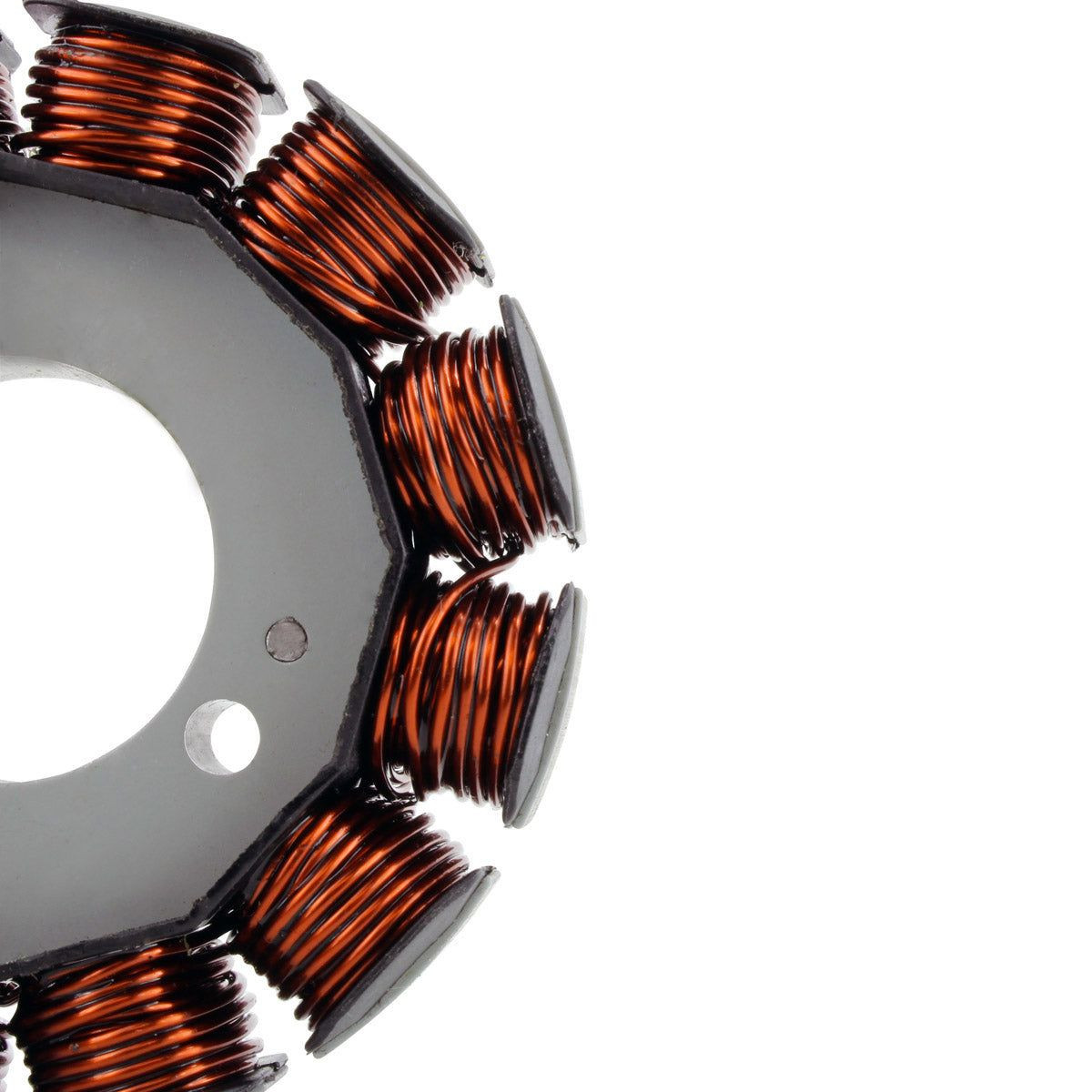

Highest grade copper windings, resistant to 200 degrees Celsius.
All products shipped are tested
High output stator generating 140W available for added accessories
Before installing your new magneto flywheel rotor:
Before attempting to start your Yamaha adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".
Before installing your new high output stator:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code then you?re original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
