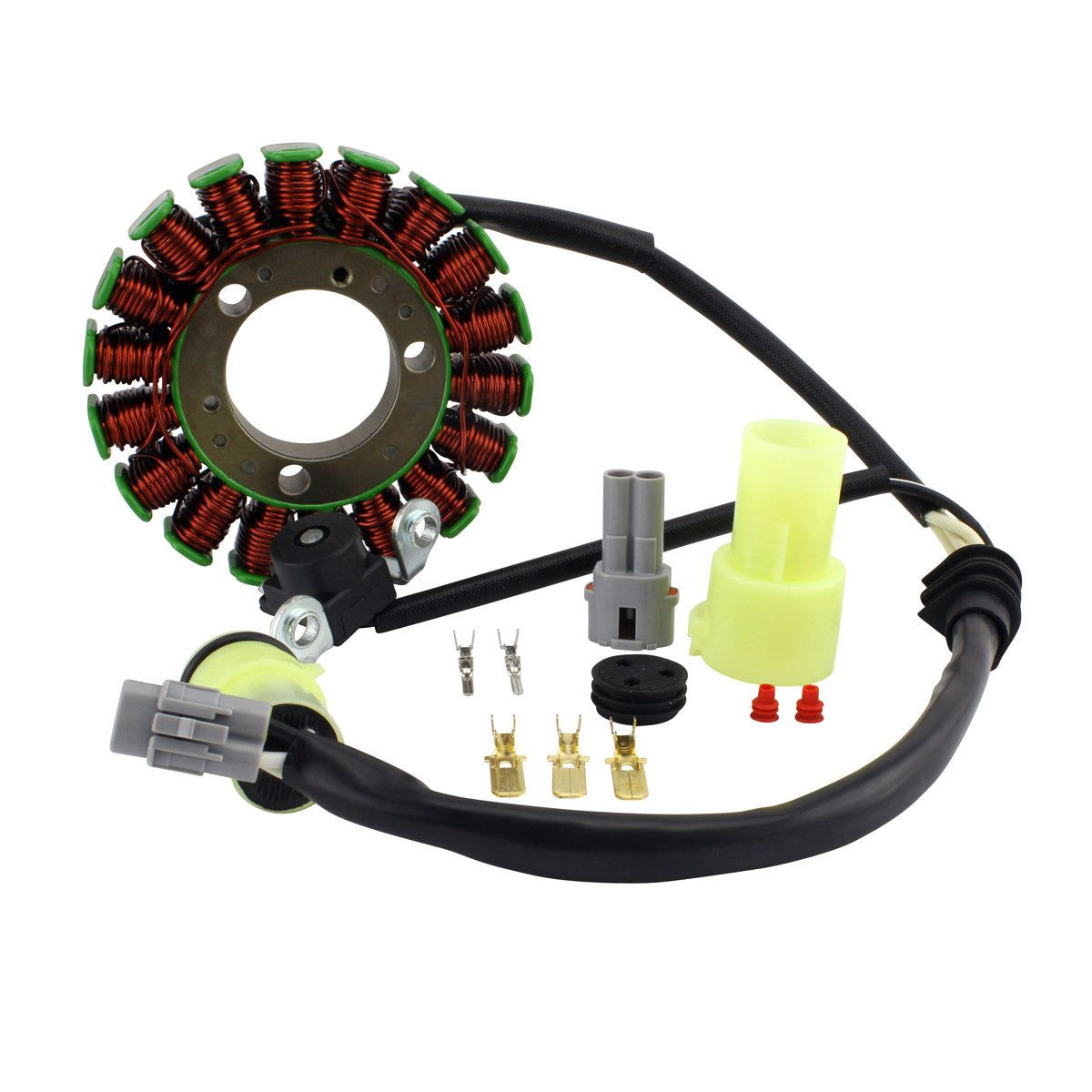

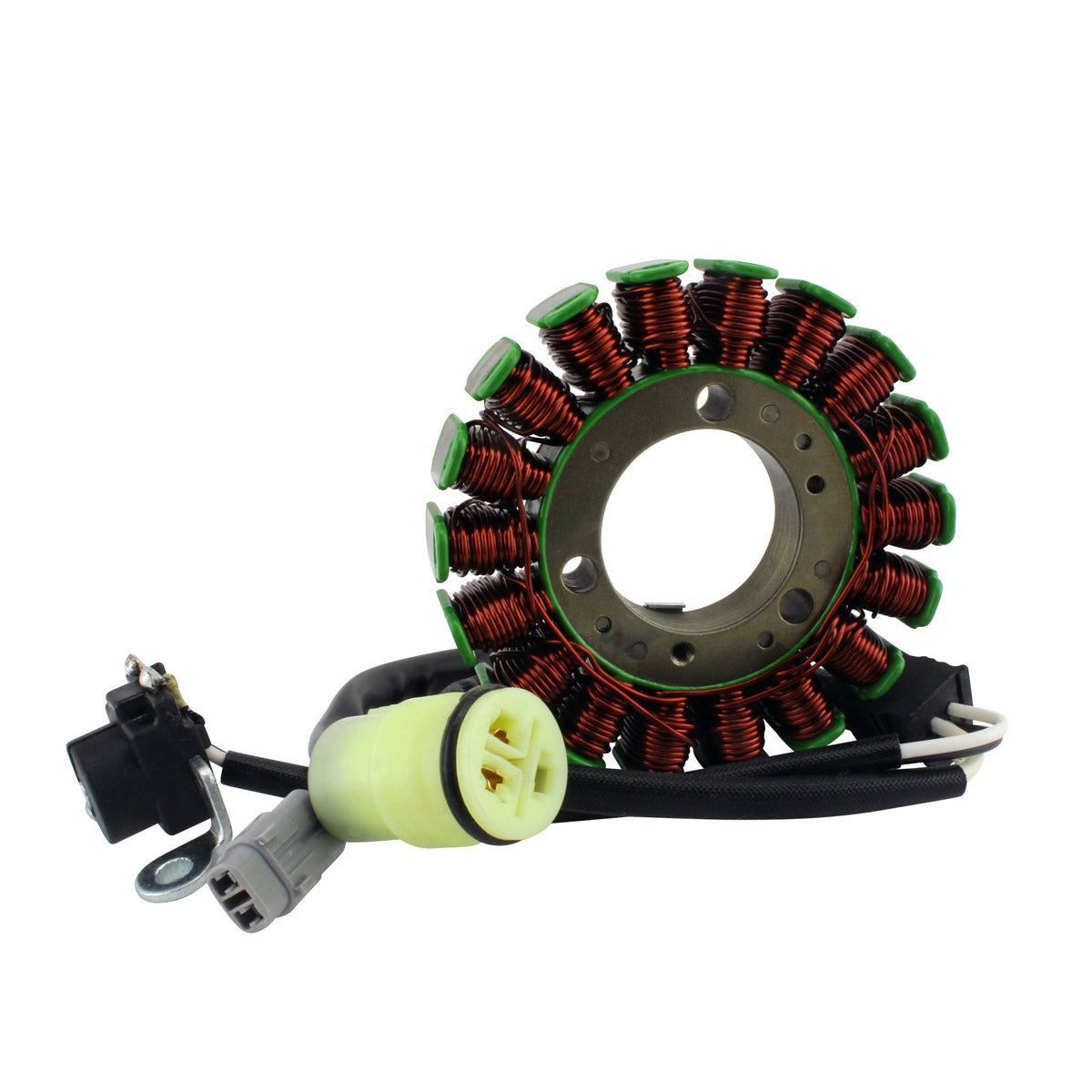

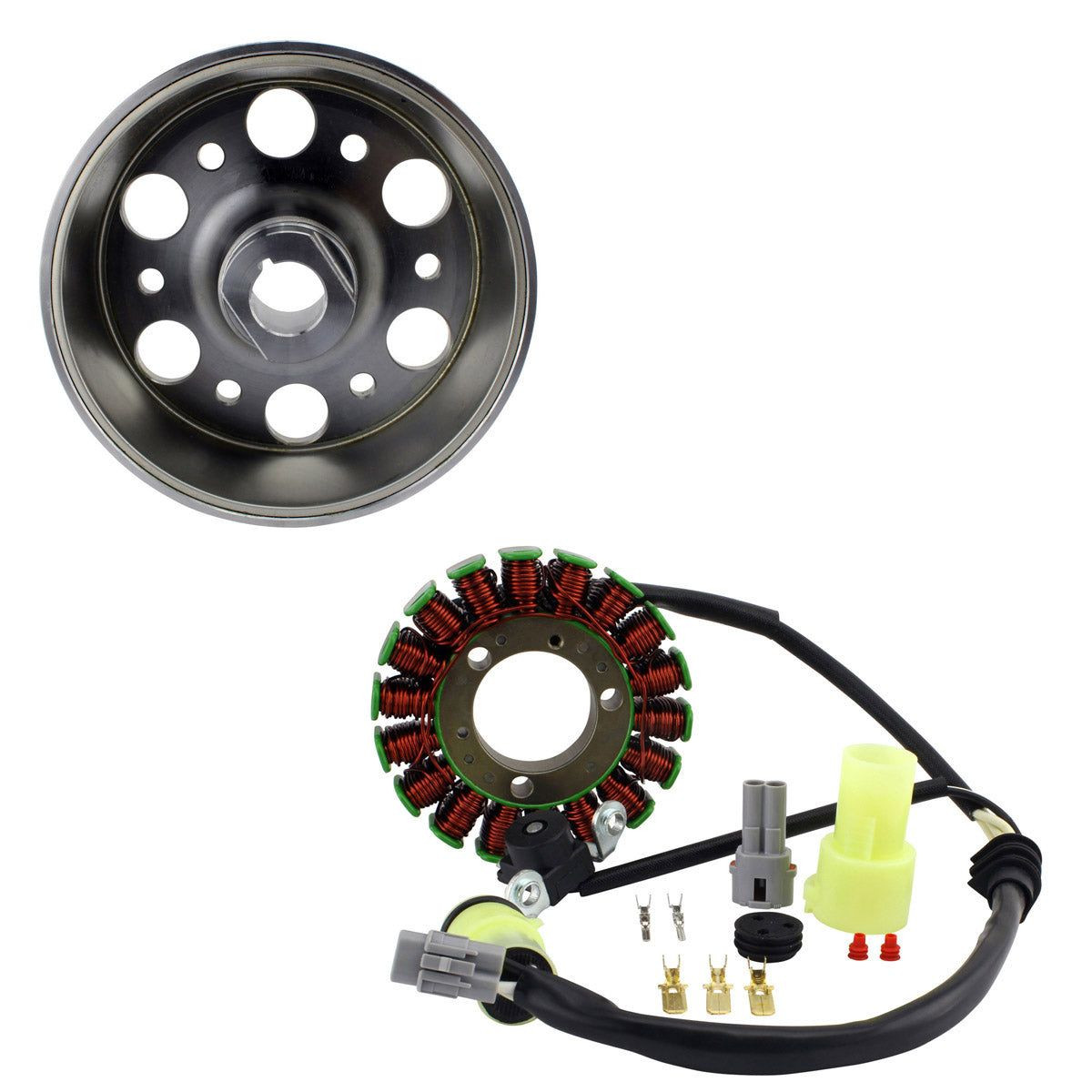

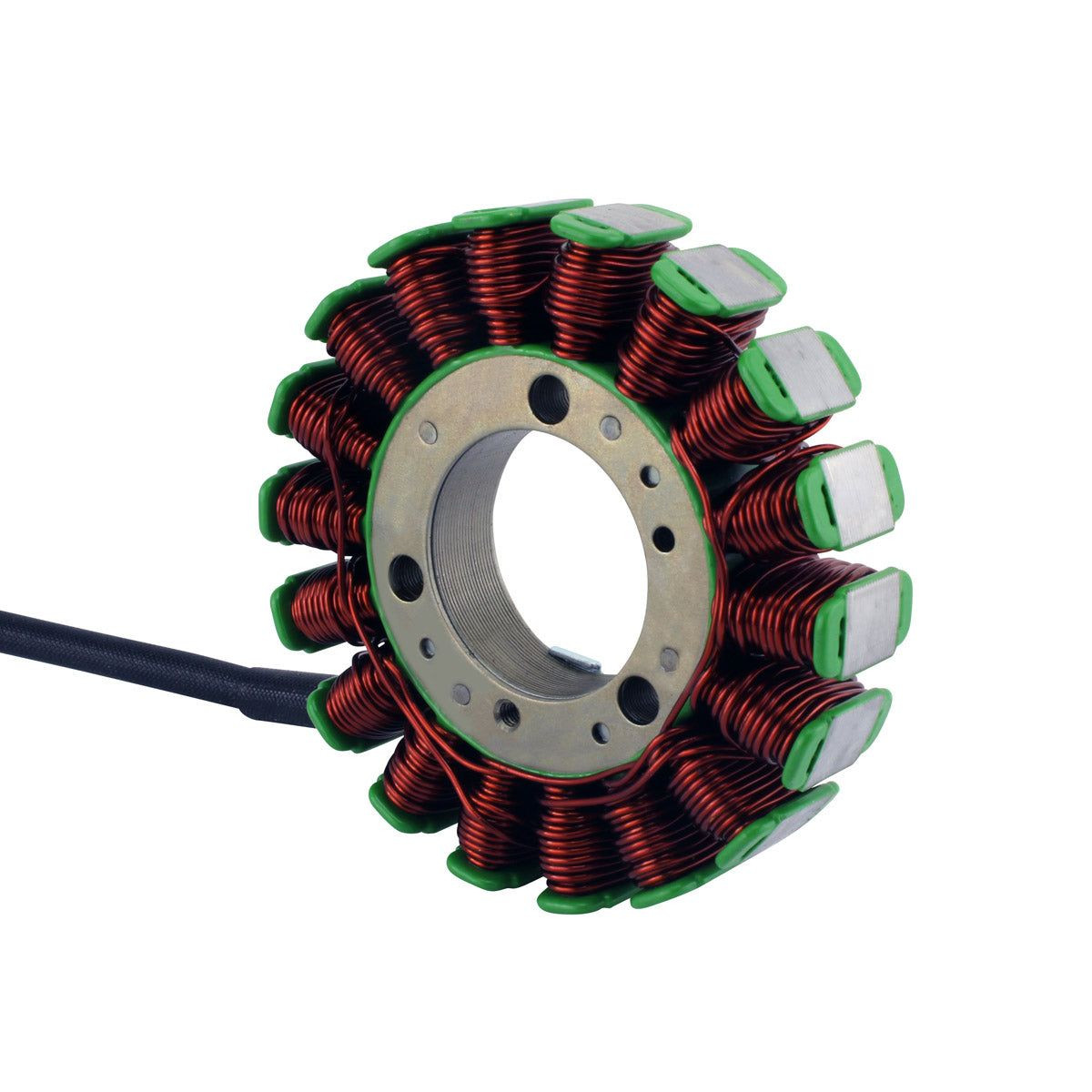

RMStator® RMS900-108130 - High Output Stator 300W + Flywheel Kit

Brand New High Outout Stator 300W + Flywheel
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Highest grade of lamination materials
Highest grade of copper winding, resistant to 200 degrees Celsius

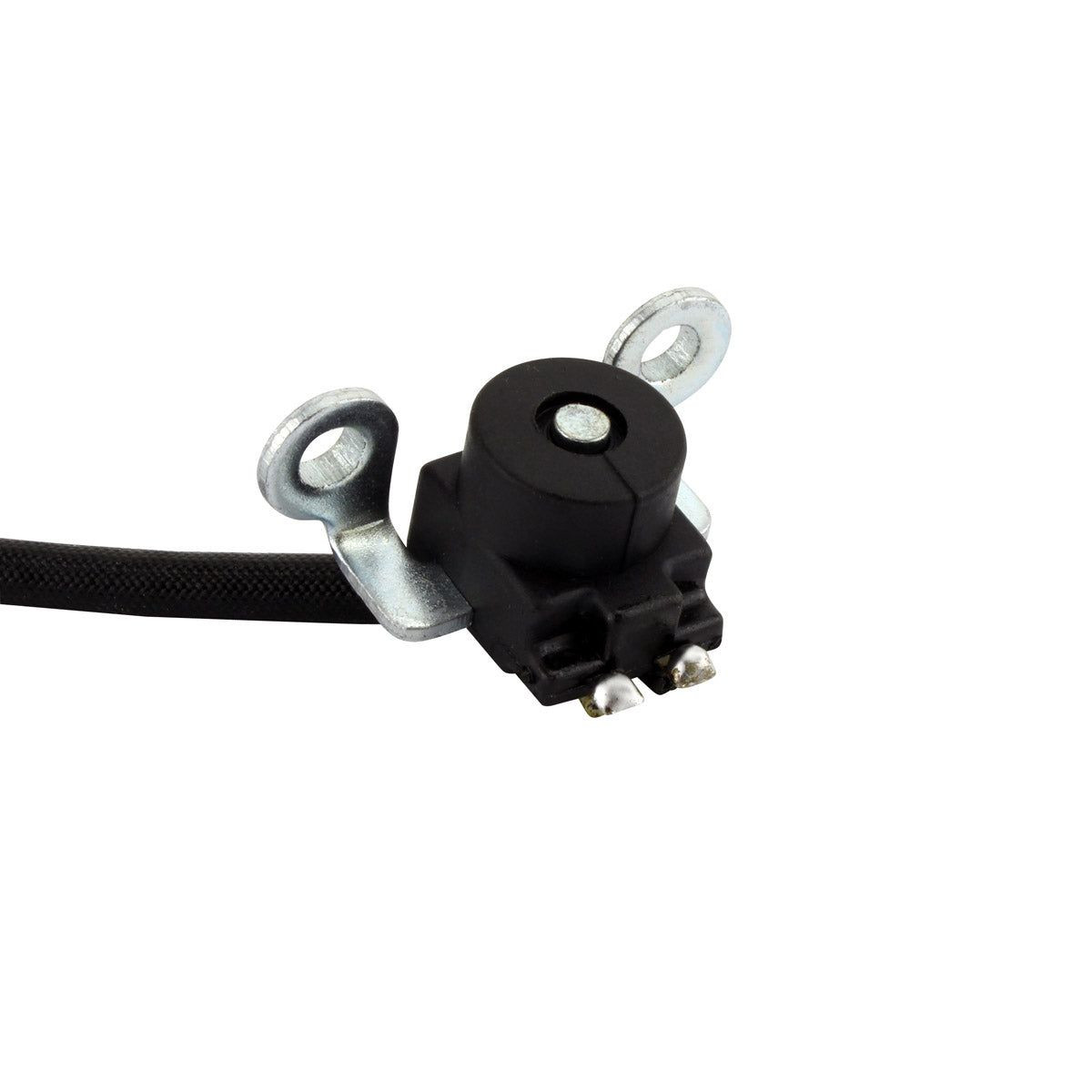

Pick up pulsar coil included

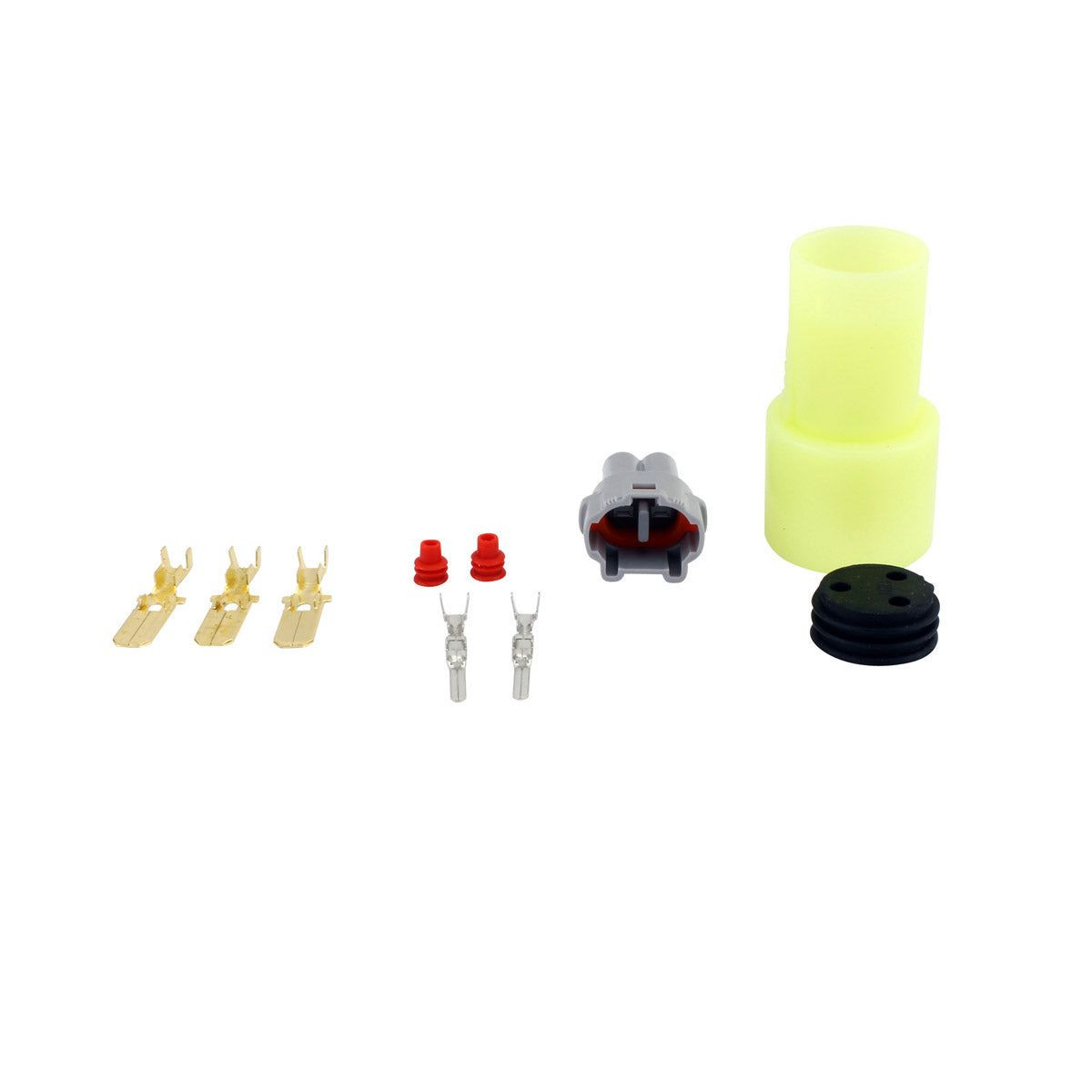

Connectors included
Rubber grommet included
All products shipped are tested
This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

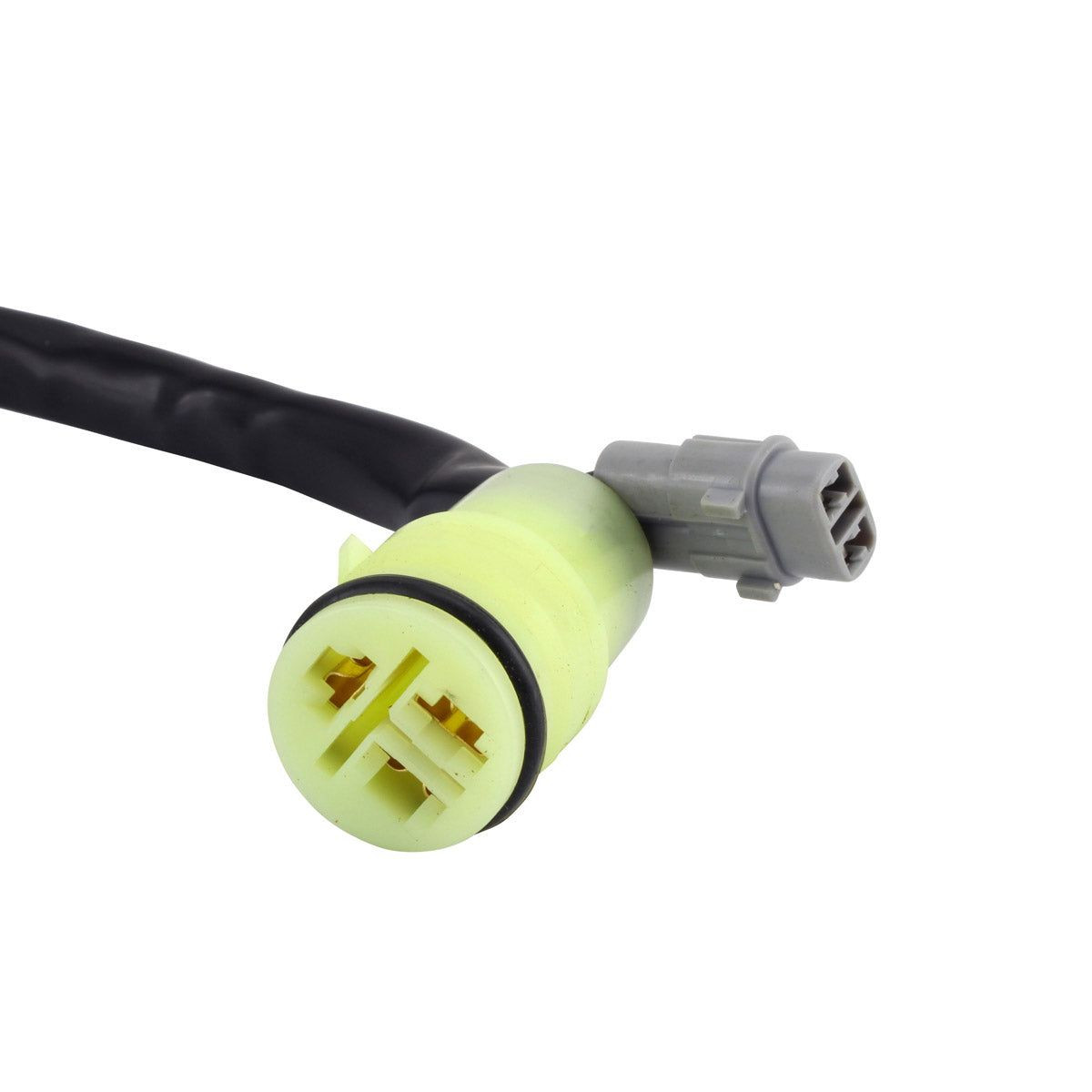

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

Before installing your new high output stator:
Check the AC output of the stator
Replace any burned or corroded connectors on stator and regulator rectifier
Check and repair any melted wiring
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

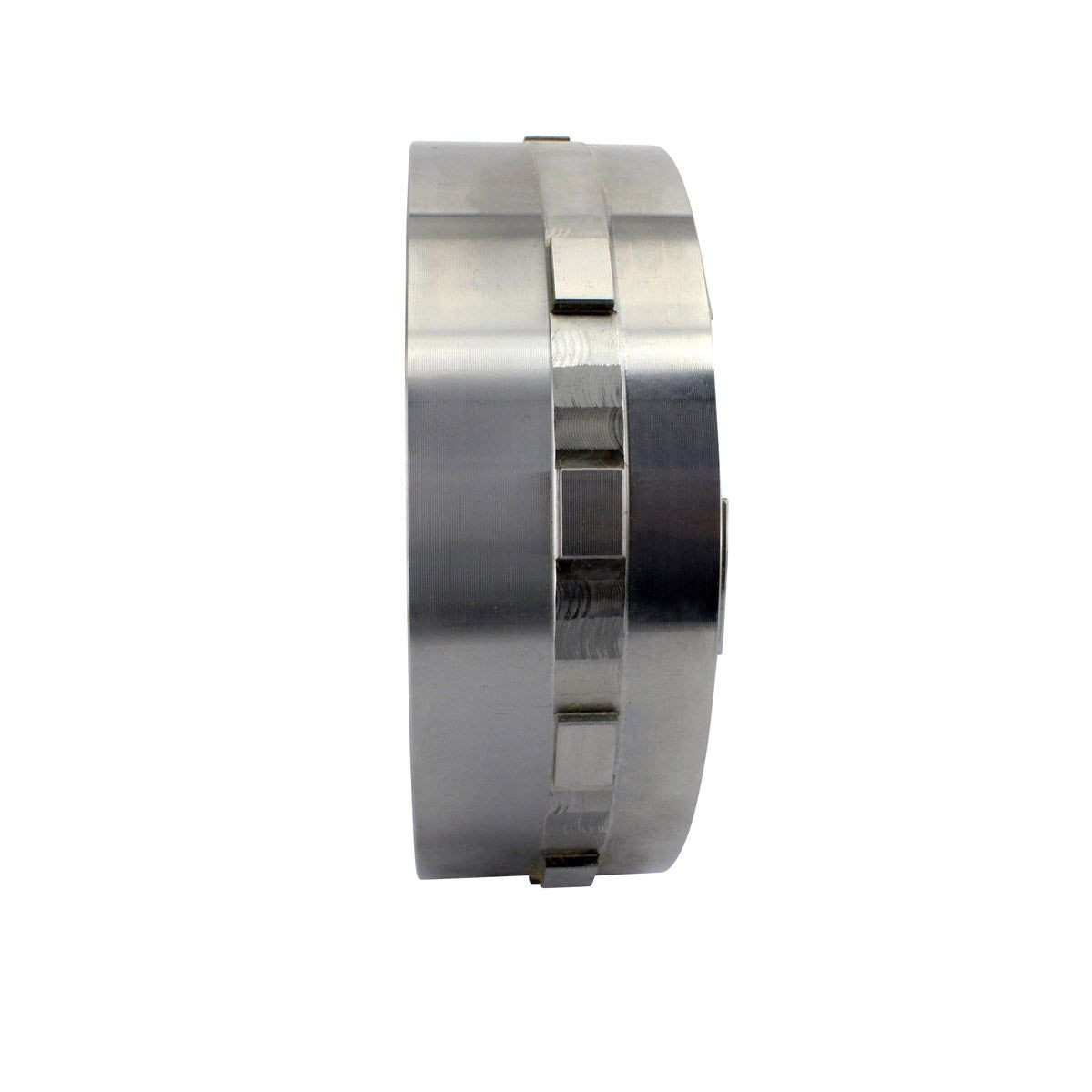

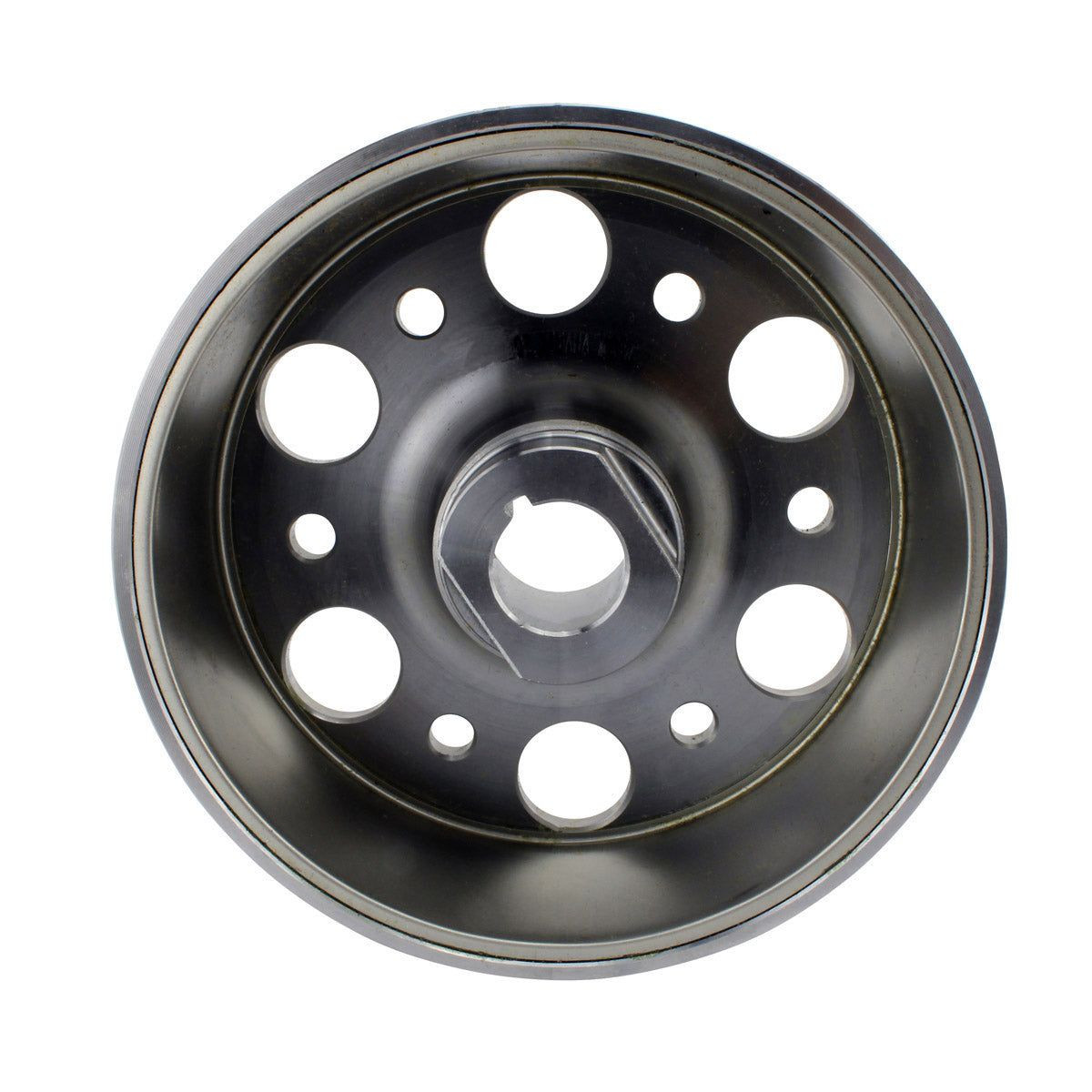

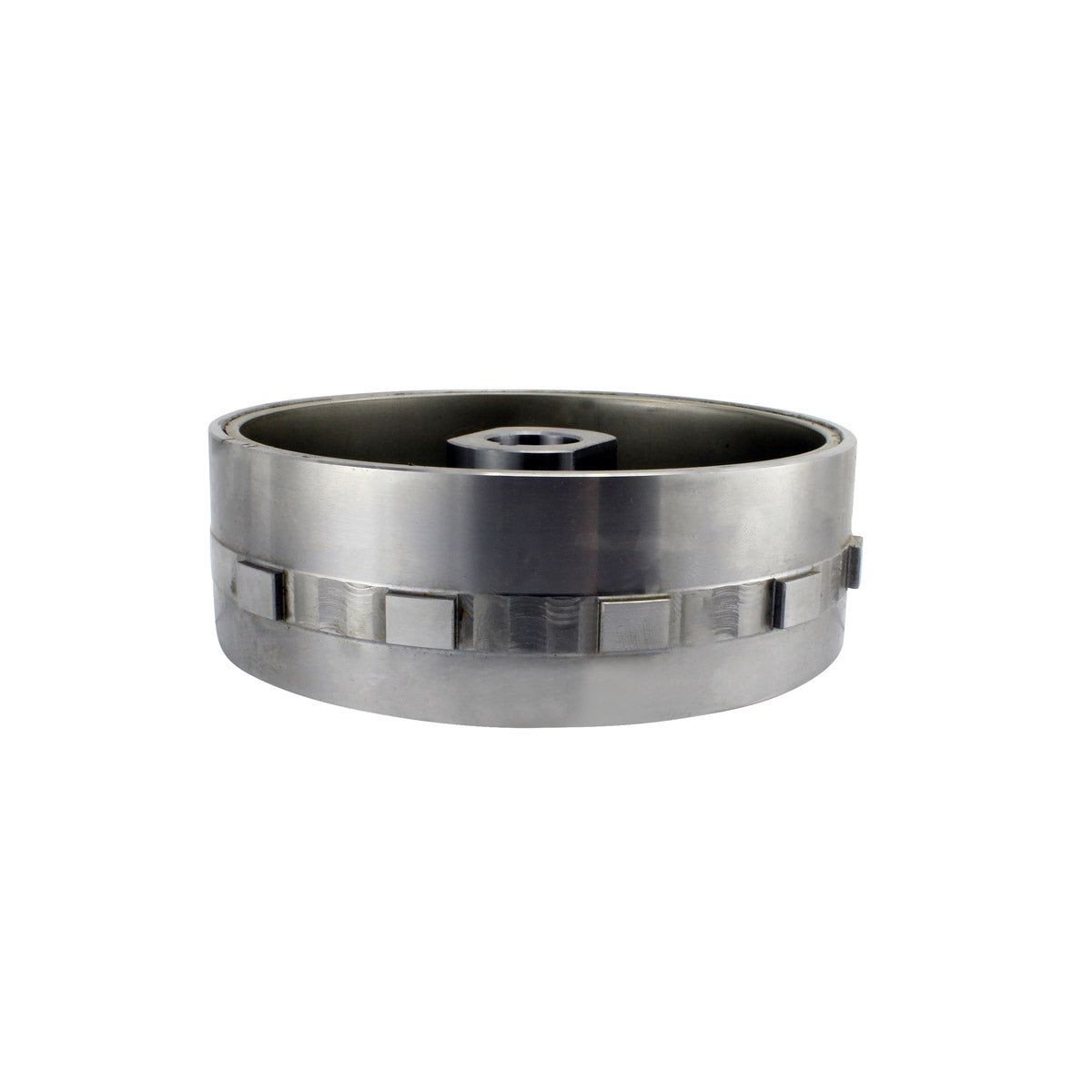

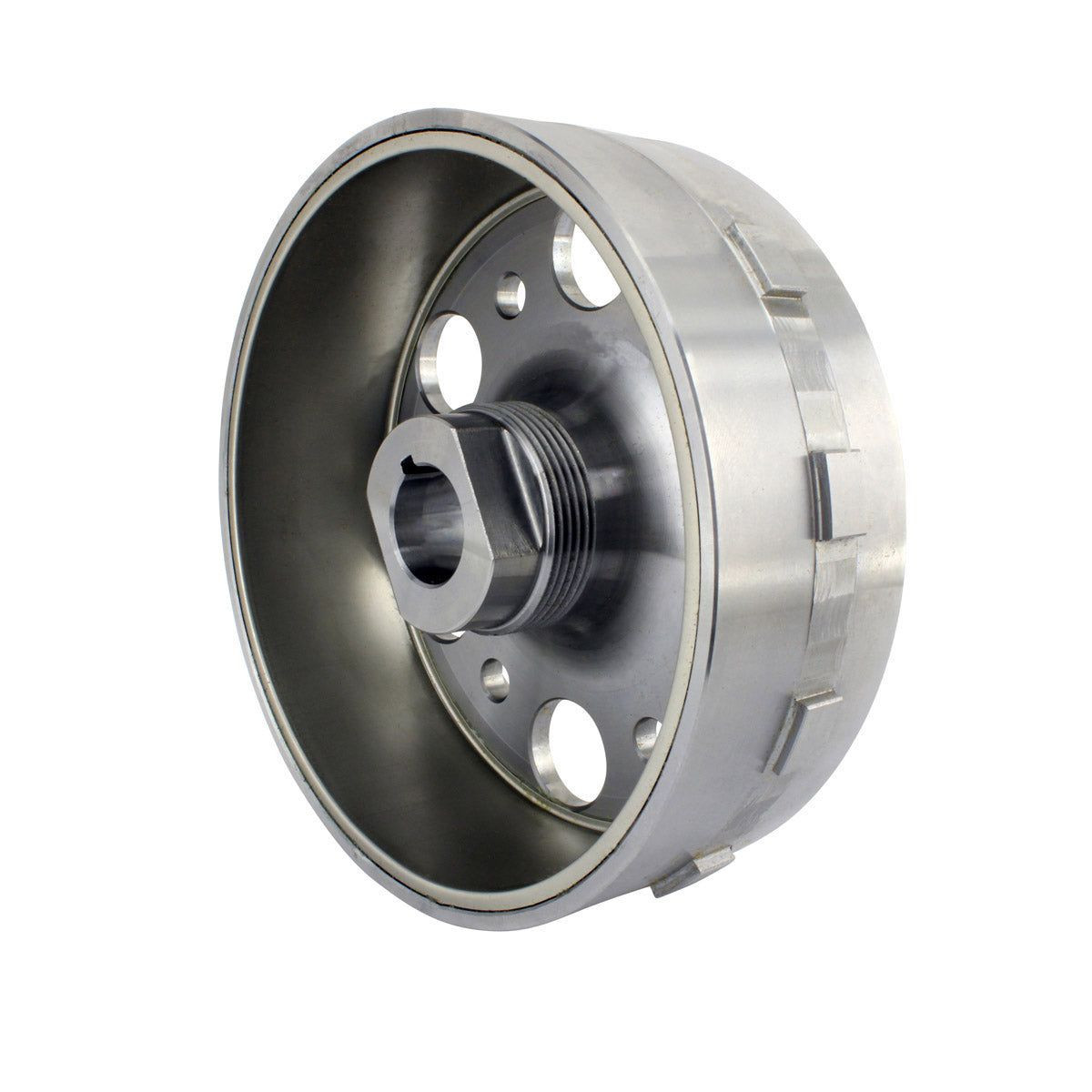

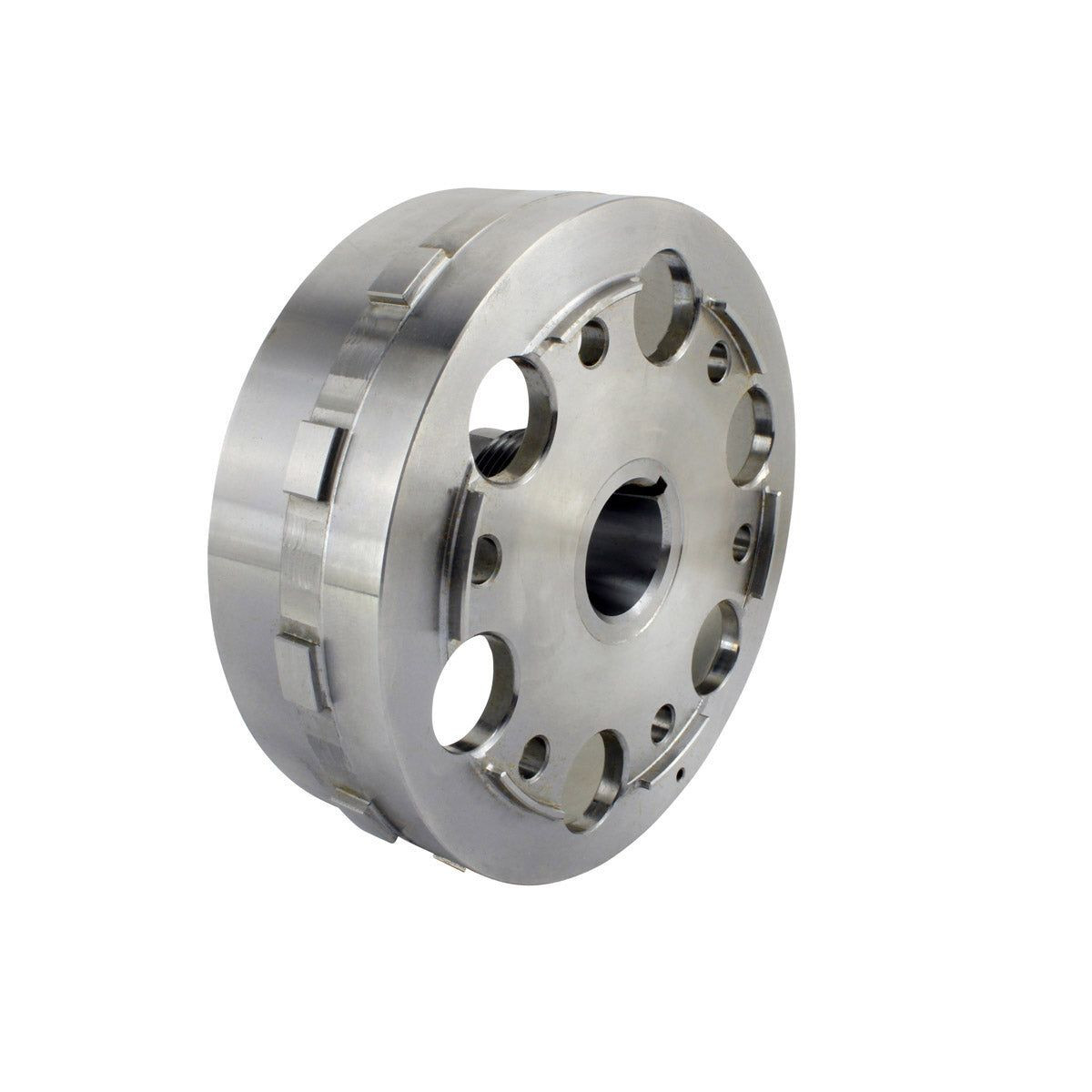

Before installing your new flywheel:
Before attempting to start your Yamaha, adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
