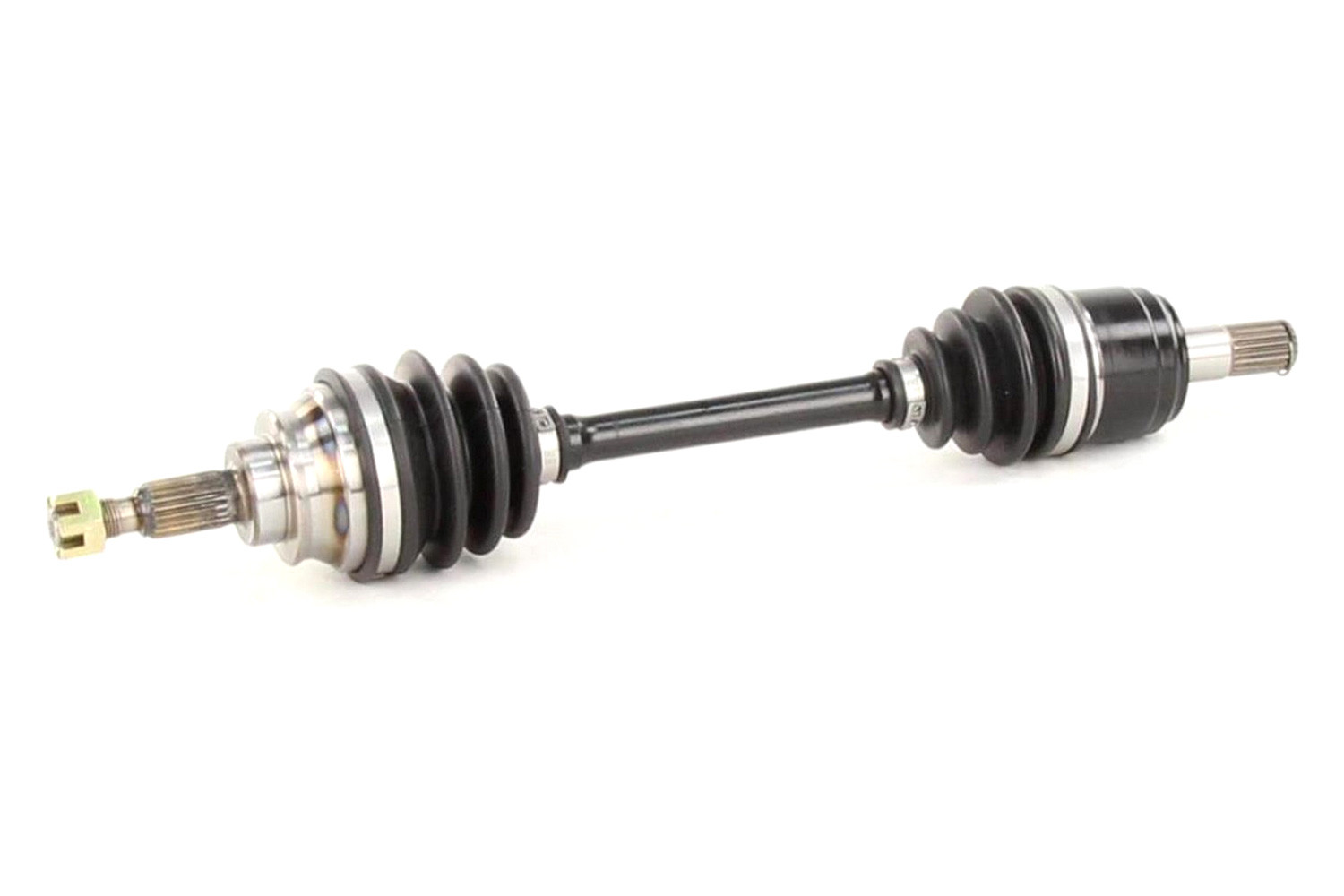

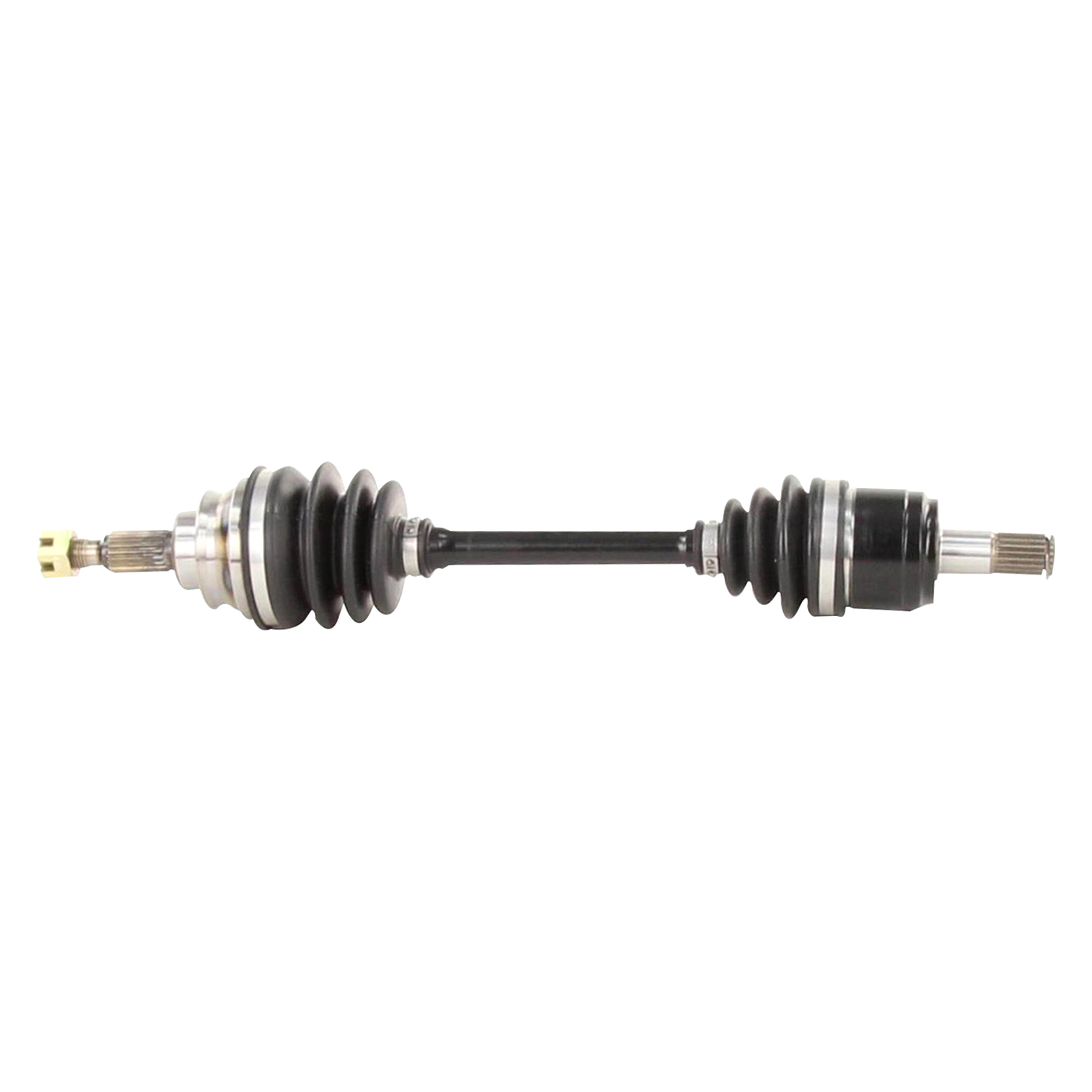

TrakMotive® HON-7009 - Front Right CV Axle

9 reviews|Item # mpn4545952934
Vehicle Specific
    Select Vehicle
    Authorized Dealer
    $148.82
    In Stock (1) - Ships Tomorrow 06.10.26
    Have a Question? Ask a Specialist
    888-903-4348Live Chat

    Vehicle Fitment

    Honda

    Specifications

    ABS Tone Ring Included
    No
    Axle Nut Head Type
    Hex
    Axle Nut Height (in)
    2/3
    Axle Nut Height (mm)
    16.4
    Axle Nut Hex Size (in)
    1
    Axle Nut Hex Size (mm)
    24
    Axle Nut Included
    Yes
    Axle Nut Length (in)
    1
    Axle Nut Length (mm)
    27.7
    Axle Nut Locking Type
    Cotter Pin
    Axle Nut Thread Size
    M16*1.5
    Boot Material
    Neoprene
    Inboard Joint Type
    Male
    Inboard Shaft Connection Style
    Male
    New Or Remanufactured
    New
    Number Of Inboard Splines
    20
    Number of Outboard Splines
    21
    Outboard Joint Type
    Conventional
    Outboard Shaft Connection Style
    Conventional
    Overall Compressed Length (in)
    18 5/7
    Overall Compressed Length (mm)
    475.5
    Hazardous Material Flag
    N
    Quantity Per Vehicle
    2

    Features

    • Work at varying angles and constant rotational speeds without friction or play
    • Induction heat treated joints packed with high performance moly grease
    • Precision machined and heat treated solid chrome steel center shafts
    • Precision machined and heat treated cages, races and ball bearings
    • Precision rolled splines and threads improve fitment and wear
    • High strength spring steel retaining clips (where required)
    • All new dust rings and guards (where required)
    • High quality neoprene rubber dust boots
    • Secure stainless steel dust boot clamps
    • Fully assembled for easy installation
    • No modifications required to install
    • Exceed OEM quality in fit, form and function
    • Torture tested to failure to ensure maximum durability
    • Designed to withstand the most rigorous conditions and terrain
    • Manufactured in a state-of-the-art ISO9001 and TS16949 certified factory
    • Highest quality, most reliable, and toughest constant velocity axles on the market
    • All Necessary Hardware Included
    • Limited One Year Warranty

    Product Details

    Front Right CV Axle by TrakMotive®. OE Replacement Constant Velocity (CV) Axles for ATVs, UTVs and Side-by-Sides are engineered from the ground up to be the highest quality, most reliable, and toughest CV axles on the market. Manufactured in a state-of-the-art ISO9001 and TS16949 certified factory, they are designed to withstand the most rigorous conditions and combat rough terrain, water, mud, and sand. Each application is torture tested to failure to ensure maximum durability. To increase performance and longevity, TrakMotive OE Replacement CV Axles feature a solid chrome steel center shaft that is up to 20% stronger than OEM. The CV axle joints are packed with high temperature, high performance moly grease and are constructed to work at varying angles and constant rotational speeds without friction or play. TrakMotive OE Replacement CV Axles for ATVs, UTVs and Side-by-Sides exceed OEM quality in fit, form and function, come fully assembled for easy installation with no modifications required, and include a one year limited warranty. Experience the TrakMotive advantage today!. This top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship. Manufactured from industry-leading materials using up-to-date equipment, it ensures everlasting reliability and enduring value. This product is distinguished by total quality assurance, unsurpassed by anybody else.

    Part Number:
    HON-7009
    UPC:
    844084079862
    Alternate MPN:
    HON7009

    Reviews

    (9)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    /5
    1-9 of 9 Reviews
    5 of 5
    2006 620i XUV
    Installed this on my John Deere 620i XUV. Very simple installation.
    TrakMotive® JDR-7005 - Front Left CV Axle
    Posted by james (Gladwin, MI) / August 20, 2021
    5 of 5
    Perfect
    Perfect fit, they work great, definitely stronger than the previous non oem shafts I had. I will buy then again when needed.
    TrakMotive® CAN-7006 - Front Right CV Axle
    Posted by kelby (Lebanon, TN) / September 14, 20202012 Can-Am Commander 1000 X
    5 of 5
    Just Right
    The axles I ordered were perfect, they fit just like the OEM axles, and better than the previous aftermarket set I had before them. We've already been on one H3LL of a weekend long ride on some real serious trails, lots of rocks, roots, and ruts, not to mention the hills and mud, and even though I was pouring 1000cc's of Can Am power through these babies all weekend we never encountered one issue with the axles, even after that tough ride none of them are showing any signs of wear, no popping, clicking or binding. I will be replacing them with these same axles when the time comes.
    TrakMotive® CAN-7008 - Rear Left or Right CV Axle
    Posted by kelby (Lebanon, TN) / August 31, 20202012 Can-Am Commander 1000 X
    5 of 5
    Good
    Fit as well as the factory part. Easy to install. Price is great.
    Posted by Clinton (Granbury, TX) / May 26, 2019
    4 of 5
    Good Quality
    My 2004 Gator HPX 4x4 stoped working. After some research I found out the stock cv shafts are too short and slip out of the splines in the front diff. This new cv shaft is a lil longer and built better than OEM. Make sure you push the inner shaft of the cv joint all the way in the front diff. I had to tap mine in with a rubber hammer to get it all the way in.
    TrakMotive® - Front CV Axle
    Posted by Bryan (Longville, LA) / May 17, 2019
    4 of 5
    Front CV Axle
    Fit great.
    TrakMotive® JDR-7002 - Front CV Axle
    Posted by William (Mechanicville, NY) / April 27, 2019
    5 of 5
    CV Axle
    Perfect fit. Easy to install and I saved $200 vs JD.
    TrakMotive® JDR-7003 - Rear CV Axle
    Posted by Donald M. (Cohasset, MN) / November 15, 2018
    5 of 5
    CV Joint
    Joint was not an exact replica, but worked the same.
    Posted by Greg (Waconia, MN) / October 11, 20182013 John Deere RSX850i
    5 of 5
    Great Quality for the Money
    Purchased this axle for my John Deere Gator 825I S4. John Deere was asking $329 for there’s and did some research and found this product. Very happy with it. Arrived before the expected date. Would buy again.
    Posted by Adrian (Chehalis, WA) / September 25, 2018
