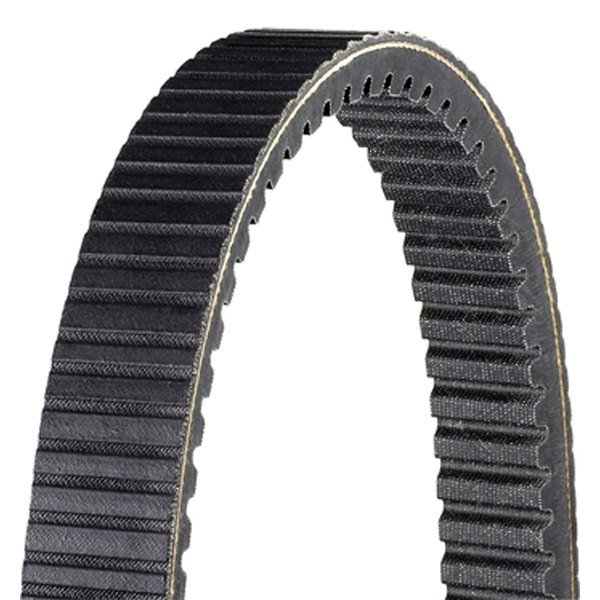

Dayco® HPX2236 - HPX™ High Performance Extreme Drive Belt

3 reviews|Item # mpn404096734|Similar Products
Vehicle Specific
    Select Vehicle
    Notes:
    • This product is NOT legal for installation on vehicles required to meet CARB standards and/or registered in California and other states following CARB standards, including NY and ME.
    Authorized Dealer
    $108.58
    In Stock (1)
    Authorized Dealer
    Have a Question? Ask a Specialist
    888-903-4348Live Chat

    Vehicle Fitment

    MakeModelYear
    BombardierOutlander 650 HO 2006
    Outlander 650 HO XT 2006
    Outlander Max 650 HO 2006
    Outlander Max 650 HO XT 2006
    Can-AmMaverick Max 1000R 2015
    Outlander 1000 Mossy Oak Hunting Edition 2017
    Outlander 500 2011-2015
    Outlander 500 HO 2007-2010
    Outlander 500 HO XT 2007-2010
    Outlander 500 XT 2011-2015
    Outlander 570 2016-2017
    Outlander 570 XT 2016-2017
    Outlander 650 2011-2016
    Outlander 650 6x6 2017
    Outlander 650 6x6 XT 2015-2016
    Outlander 650 HO 2007-2010
    Outlander 650 HO XT 2007-2010
    Outlander 650 X mr 2013-2017
    Outlander 650 XT 2011-2016
    Outlander 800R 2011
    Outlander 800R X xc 2011
    Outlander 800R XT-P 2011
    Outlander 850 XT 2017
    Outlander L 450 2015
    Outlander L 500 2015
    Outlander L 570 LE 2016
    Outlander L 570 X mr 2016
    Outlander L Max 450 2015
    Outlander L Max 500 2015
    Outlander Max 400 XT 2014
    Outlander Max 500 2011-2015
    Outlander Max 500 HO 2007-2010
    Outlander Max 500 HO LTD 2010
    Outlander Max 500 HO XT 2007-2010
    Outlander Max 500 XT 2011-2015
    Outlander Max 570 2016-2017
    Outlander Max 570 XT 2016-2017
    Outlander Max 650 2011-2016
    Outlander Max 650 HO 2007-2010
    Outlander Max 650 HO XT 2007-2010
    Outlander Max 650 XT 2011-2016
    Outlander Max 650 XT-P 2010-2012
    Outlander Max 800 HO LTD 2010
    Outlander Max 800R XT-P 2010-2012
    Renegade 500 2008-2015
    Renegade 570 2016-2017
    Renegade 570 X mr 2017
    Renegade 850 2017

    Specifications

    Top Cog TypeShallow
    Top CoggedYes
    Top MaterialRubber
    Bottom Cog TypeSquare
    Outside Circumference (in)38.656"
    Top Width (in)1.282"
    Top Width (mm)32.563
    Angle26
    EBS (Engine Braking System) BeltNo
    Maximum Operating Temperature112.7
    Maximum Operating Temperature (F)235
    Minimum Operating Temperature-40
    Outside Circumference (mm)981.863
    Thickness (in)0.580"

    Notes

    • This product is NOT legal for installation on vehicles required to meet CARB standards and/or registered in California and other states following CARB standards, including NY and ME.

    Features

    • Constructed to deliver extended life in demanding diesel applications
    • Cogs in the top of the belt for increased flexibility around small pulleys
    • Provides increased surface area for cooler running
    • Polyester cords provide maximum power transfer and tension-holding capability
    • Laminated construction helps absorb greater shock loads associated with diesel engines
    • Meets or exceeds SAE J636 and J637 specifications

    Product Details

    HPX™ High Performance Extreme Drive Belt by Dayco®. Built with cogs in its top, the belt provides additional flexibility around small pulleys while the increased surface area results in a cooler running belt for prolonged service life. This product features unique laminated construction that helps absorb greater shock loads associated with diesel engines.

    Accessory drive belts wind their way around such components as the power steering pump, water pump, air conditioning compressor, and alternator propelling them when the engine is running. Check V-belts for wear, including evidence of cracking, fraying, and glazing. These conditions can cause noise, excessive slippage, and reduced functionality of the accessory being powered. To avoid this, replace V-belts at the first signs of wear. Specially designed to deliver prolonged service life in diesel applications, this product provides maximum power transfer and tension-holding capability for the entire life of the belt thanks to its polyester cords. The unique laminated construction in the belt helps absorb greater shock loads associated with diesel engines, while the cogs in the top of the belt provide increased flexibility around small pulleys. In addition, it delivers the increase surface area that results in a cooler running belt for lasting performance.

    Since 1905, Dayco® has been a leader in the automotive parts manufacturing industry. During the early 1900s, Dayco was the first and only company manufacturing the airless tire. By the 1920s, the company had a robust tire manufacturing process in Dayton, Ohio for cars, large trucks and buses. From its founding to today, the company has followed its primary business strategy to anticipate and satisfy all the needs and requirements of its customers by providing innovative, quality, and durable products. Today its wide product line includes belts, tensioners, pulleys and hydraulics equipment for the automotive, construction, trucking, ATV, agricultural, snowmobile, and industrial markets.

    Brand:
    Part Number:
    HPX2236
    UPC:
    036687522153

    Reviews

    (3)
    Only authorized customers can leave a review on our website. We would love to know what you like or dislike about the product. Share your opinion on product quality, appearance, installation, and other characteristics.
    Dayco® HPX2236 - HPX™ High Performance Extreme Drive Belt
    /5
    1-3 of 3 Reviews
    5 of 5
    Good Fit, Easy to Install.
    Dayco® - HP™ High Performance Drive Belt
    As advertised, it fit my golf cart and has smoothed out vibrations accelerating from a stop.
    Posted by Customer / July 28, 20201991 Yamaha G5 Sun Classic
    5 of 5
    Hey Y’all
    Dayco® - XTX™ Extreme Torque Drive Belt
    Looks good, fit great, works good.
    Posted by Phillip (Davin, WV) / January 18, 2020
    The belt came packaged very well, the price is better than I can get around here. So far I have no complaints. And will order from this supplier in the future, no questions.
    Posted by Don (Grande Cache, AB) / June 01, 20192013 Argo 8x8 750 HDi
