RMStator® RMS020-104185 - Lithium-Ion Batteries

Brand new Lithium-Ion Batteries Compatible MOSFET Voltage Regulator

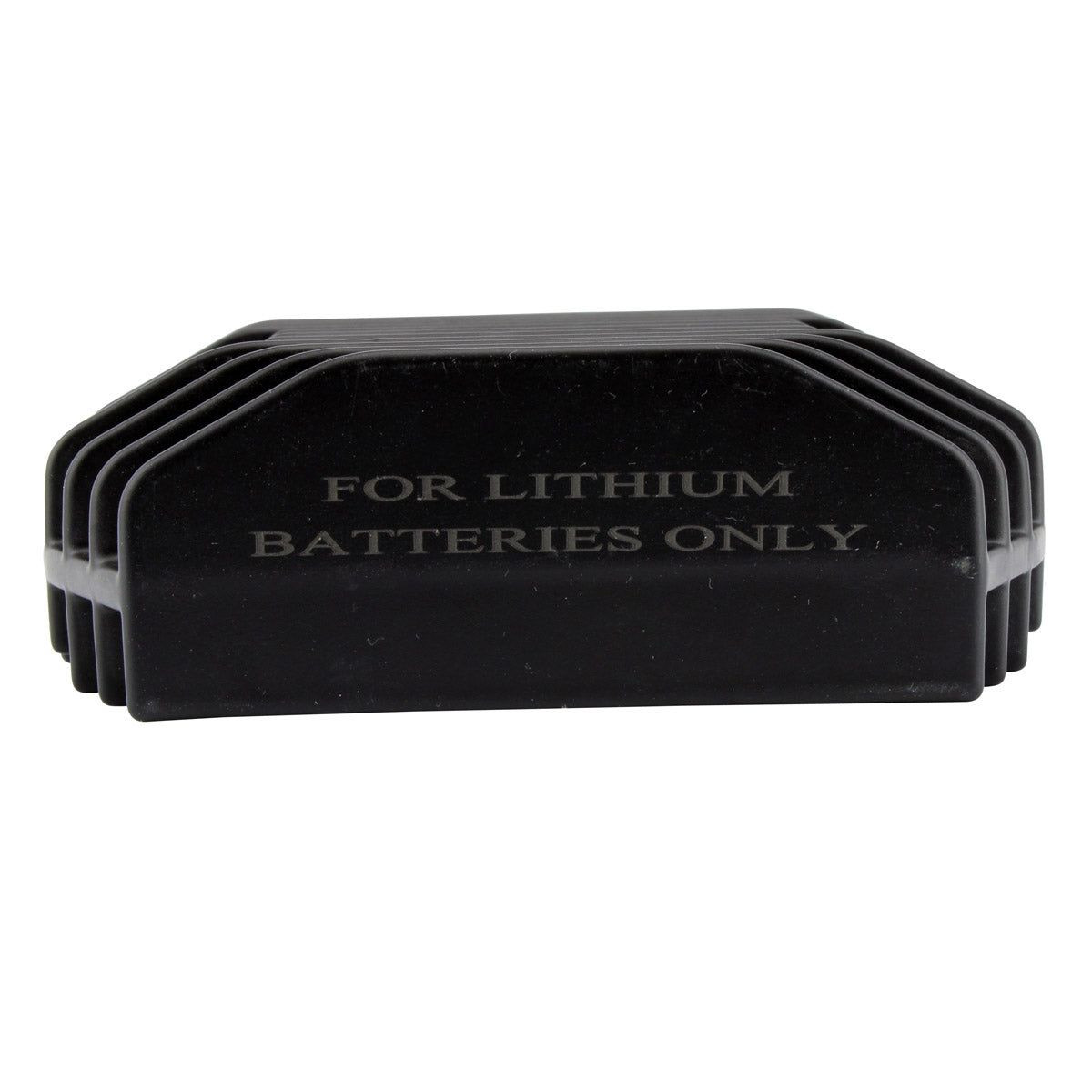

WORKS WITH LITHIUM BATTERIES ONLY
Stop burning your voltage regulator rectifier!
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all SCR diode-style OEM regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
The quality exceeds the OEM part
Higher grade of electric components
All shipped products are tested.

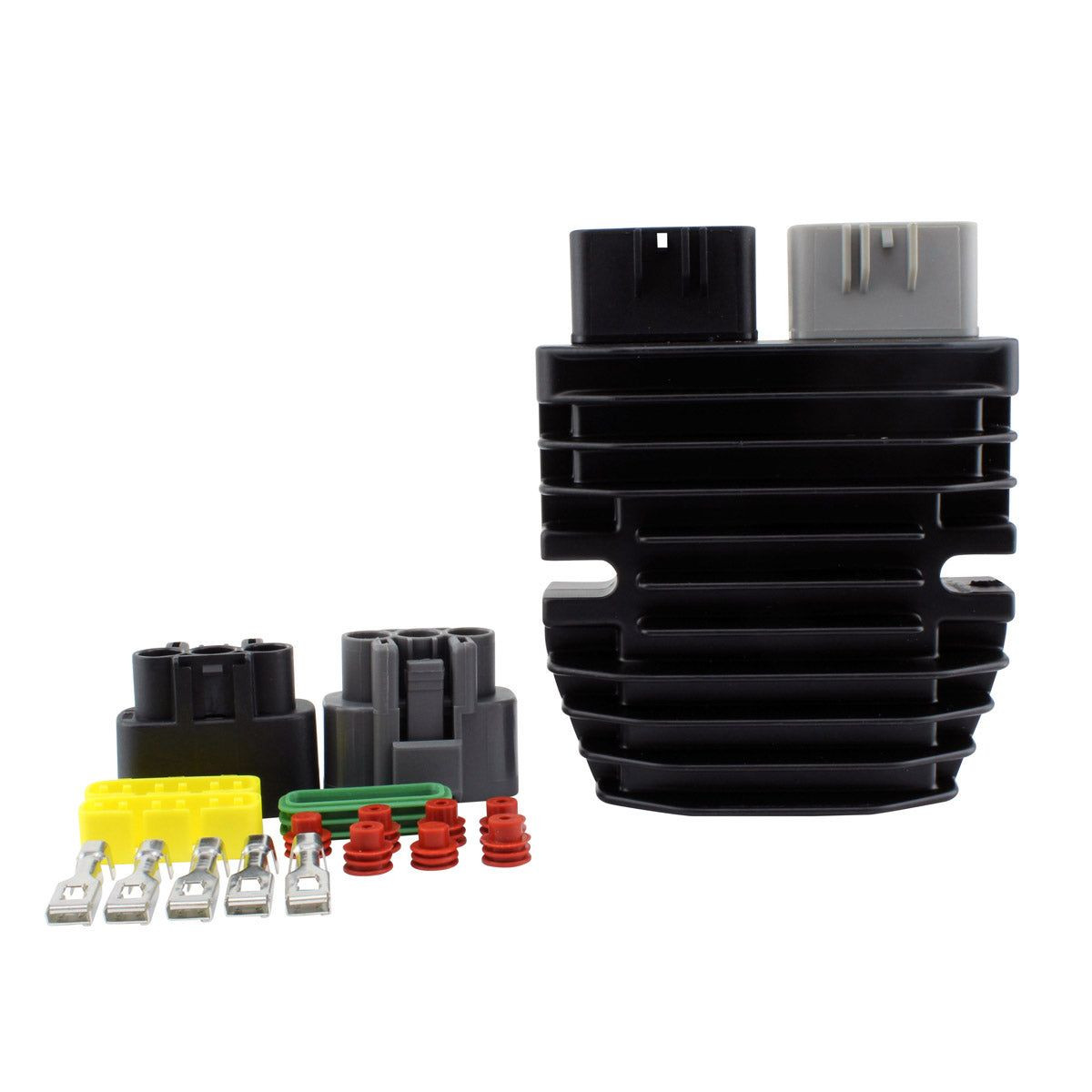

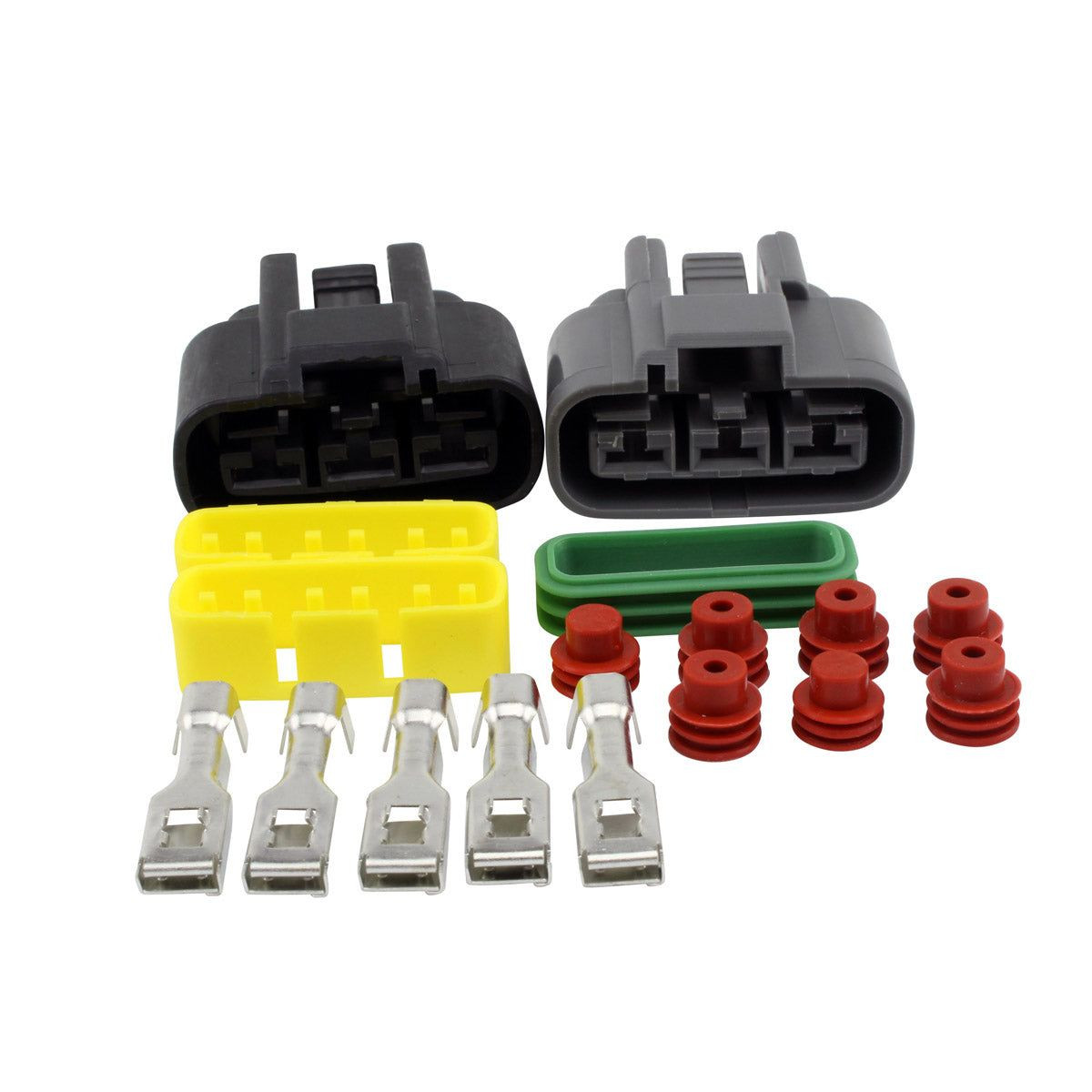

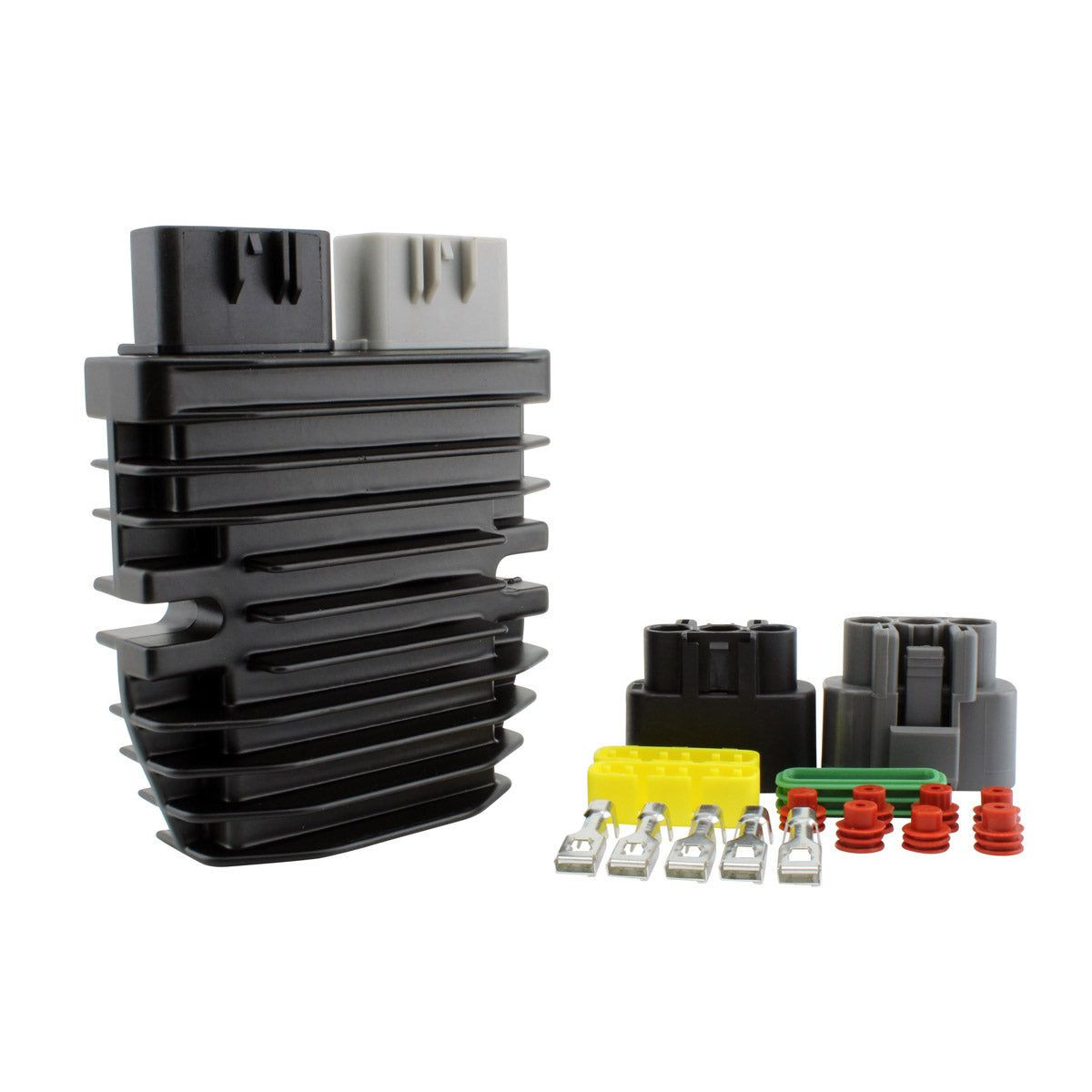

Opposite connector (main harness side) included as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part
Why do you need a different voltage regulator for lithium batteries?
Lithium batteries have different charging requirements than Lead Acid or AGM batteries that can severely affect their lifespan and performance. The key factors in safe and reliable lithium battery charging are the output DC voltage ripple and average output voltage. The RMSTATOR regulator is designed around the optimal parameters for these factors.
The ripple effect is all that matters
Charging voltage ripple in a powersports application is the difference between the highest and lowest voltages from the voltage regulator output. By nature, a common shunt style voltage regulator will have a fairly high voltage ripple due to the regulation shunt switches opening and closing frequently. Each on/off transition will cause some variation in the output voltage, this is unavoidable. Keeping this to minimum is critical for Lithium batteries, and the RMSTATOR Lithium regulator is designed around this feature.
In a perfect world, a ripple of less than 10% of the output voltage (~1.5V for a typical regulator), would be ideal, however is not practical for this type of regulator. The RMSTATOR Lithium regulator is able to maintain a less than 4 Volts output ripple, compared to verified test results of our competitors 8 volts. Keep in mind this ripple voltage is only seen via an Oscilloscope sampling the voltage 1000’s of times a second, and is not the same as your average charging voltage as measured by a multimeter.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.

Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
How does a Mosfet regulator rectifier work?
With design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Reviews
Write Your Own Review
You're reviewing: Lithium-Ion Batteries Compatible Mosfet Voltage Regulator Rectifier for ATV UTV Motorcycle Snowmobile PWC Scooter
Your Rating
Quality
1 star 2 stars 3 stars 4 stars 5 stars
Price
1 star 2 stars 3 stars 4 stars 5 stars
Value
1 star 2 stars 3 stars 4 stars 5 stars
Nickname
Summary
Review
Submit Review

Before installing your new voltage regulator rectifier:
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
2006 2007 Can-Am Outlander 400 Installation Particularities
If you are using this regulator for 2006 2007 Can-Am Outlander 400 fitments, it will function perfectly fine. You will need convert your vehicle wiring to our included mating connectors.
From your original stator connector, the outer 2 Yellow wires will be spliced into 1, the center 2 Yellow wires will be spliced into 1, and the opposite outer 2 Yellow wires will be spliced into 1. These go into our Grey connector in any location, there is no order.

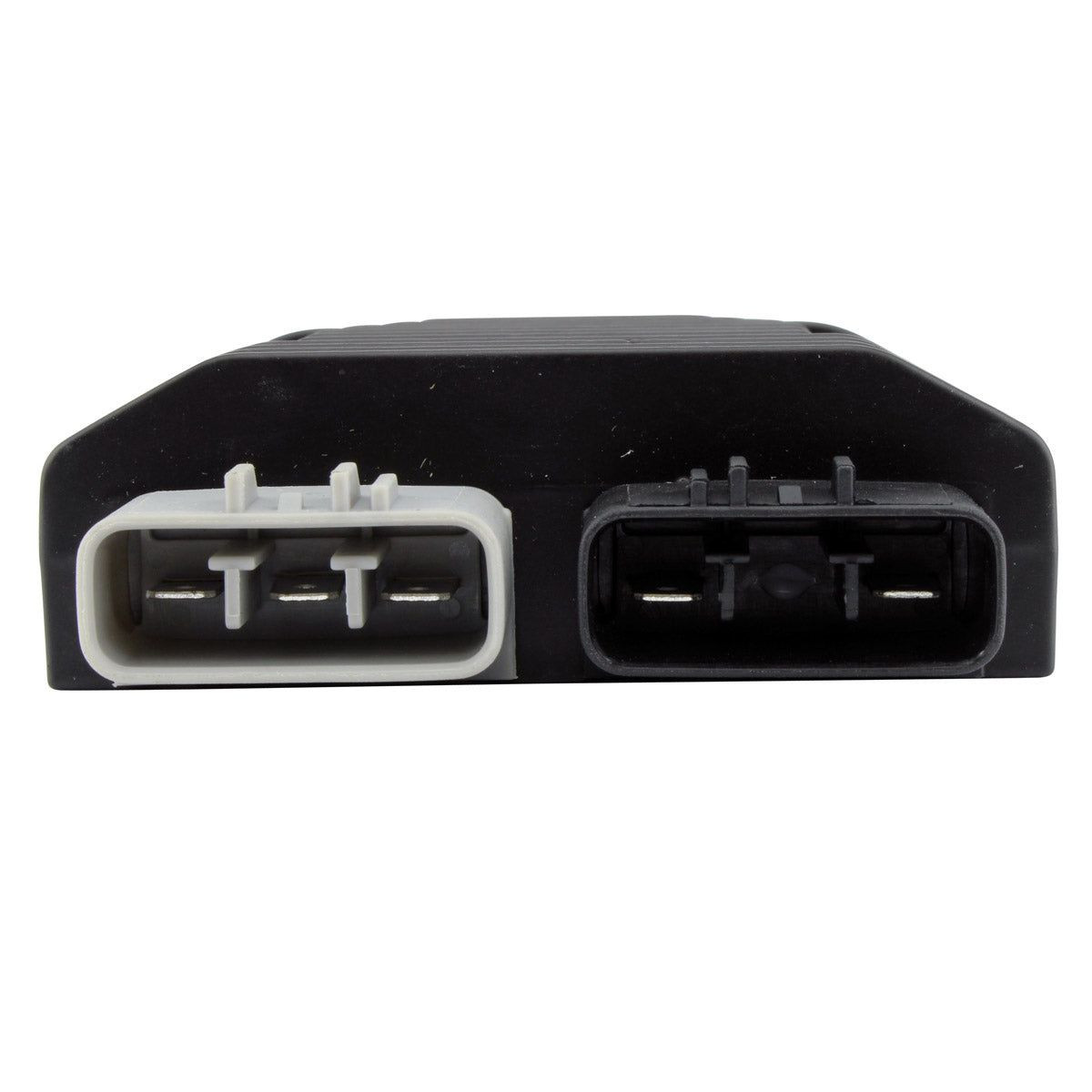

The Red Battery + goes to the inner terminal of the Black connector. The Brown Battery - (ground) wire goes to the outer terminal of the Black connector. The center terminal of the black connector is not used.
You will need relocate or build a mounting bracket for this regulator, it will not mount like the original regulator for this application.
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
